Search › Model › NSP90

NSP90

Toyota YARIS-ECHO-VIOS-LIMO · 2008 · 3,191 parts · 186 categories

3,191 items

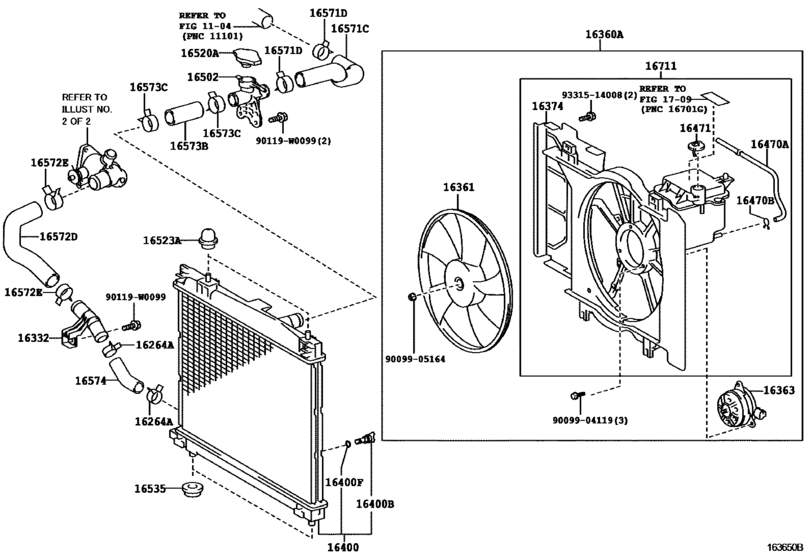

Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP) 43

#	OEM	Part name
16261	16261-47010	Hose, Water By-Pass
16261	96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	16261-47020	Hose, Water By-Pass, No.1
16261	96136-42901	Clip Or Clamp(For Ventilation Hose)
16261	16261-47030	Hose, Water By-Pass
16264	90466-W0015	Clamp Or Clip(For Water By-Pass Hose No.2)
16268	16268-47030	Pipe, Water By-Pass, No.1
16321	16321-47010	Inlet, Water
16321	16321-47011	Inlet, Water
16326	16326-47010	Gasket, Water Inlet Housing, No.2
16326	16326-47020	Gasket, Water Inlet Housing, No.2
16331	90916-03147	Thermostat
16332	16332-0Y010	Pipe, Water Outlet, No.1
16360	16360-0Q031	Fan Assy, W/motor
16361	16361-0Q030	Fan
16363	16363-0D090	Motor, Cooling Fan
16374	16366-0Q030	Insulator, Cooling Fan Motor
16400	16400-0Y010	Radiator Assy
16400	16417-0Q040	Plug, Radiator Drain Cock
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16470	90445-12078	Hose(For Radiator Breather)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16471	16471-23030	Cap Sub-Assy, Reserve Tank
16502	16502-0Q010	Filler Sub-Assy, Water
16520	16401-31480	Cap Sub-Assy, Radiator
16520	16401-31520	Radiator Cap Sub-Assy (108kPa)
16520	16401-36020	Cap Sub-Assy, Radiator
16520	16401-62100	Cap Sub-Assy, Radiator
16523	16523-0Q020	Cushion, Radiator Support
16535	90480-W0005	Support, Radiator, Lower
16571	16571-0Y010	Hose, Radiator, No.1
16571	90466-W0011	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-0Y010	Hose, Radiator, No.2
16573	16573-0Q010	Hose, Radiator, No.3
16574	16574-47010	Hose, Radiator, No.4
16711	16711-0Q030	Shroud, Fan
90119	90119-W0099	New Genuine Part
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9046914003	90469-14003	CLAMP
9155180625	91551-80625	Bolt(For Camshaft Housing Set)
9167180820	91671-80820	Bolt (For Transmission Control Cable Bracket)
9331514008	93315-14008	New Genuine Part

OEM	Part name	Category
16261-47010	Hose, Water By-Pass	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16261-47020	Hose, Water By-Pass, No.1	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16261-47030	Hose, Water By-Pass	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16268-47030	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16321-47010	Inlet, Water	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16321-47011	Inlet, Water	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16326-47010	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16326-47020	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16332-0Y010	Pipe, Water Outlet, No.1	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16360-0Q031	Fan Assy, W/motor	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16361-0Q030	Fan	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16363-0D090	Motor, Cooling Fan	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16366-0Q030	Insulator, Cooling Fan Motor	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16400-0Y010	Radiator Assy	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16401-31480	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16401-31520	Radiator Cap Sub-Assy (108kPa)	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16401-36020	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16401-62100	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16417-0Q040	Plug, Radiator Drain Cock	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16471-23030	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16502-0Q010	Filler Sub-Assy, Water	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16523-0Q020	Cushion, Radiator Support	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16571-0Y010	Hose, Radiator, No.1	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16572-0Y010	Hose, Radiator, No.2	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16573-0Q010	Hose, Radiator, No.3	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16574-47010	Hose, Radiator, No.4	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
16711-0Q030	Shroud, Fan	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
90099-05164	Nut	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
90119-W0099	New Genuine Part	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
90466-W0011	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
90466-W0015	Clamp Or Clip(For Water By-Pass Hose No.2)	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
90469-14003	CLAMP	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
90480-W0005	Support, Radiator, Lower	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
90916-03147	Thermostat	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
91551-80625	Bolt(For Camshaft Housing Set)	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
91671-80820	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
93315-14008	New Genuine Part	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
96136-42901	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([11.2008 - ] (0811- )1NRFE..FRP)
