Search › Model › NSP160
NSP160

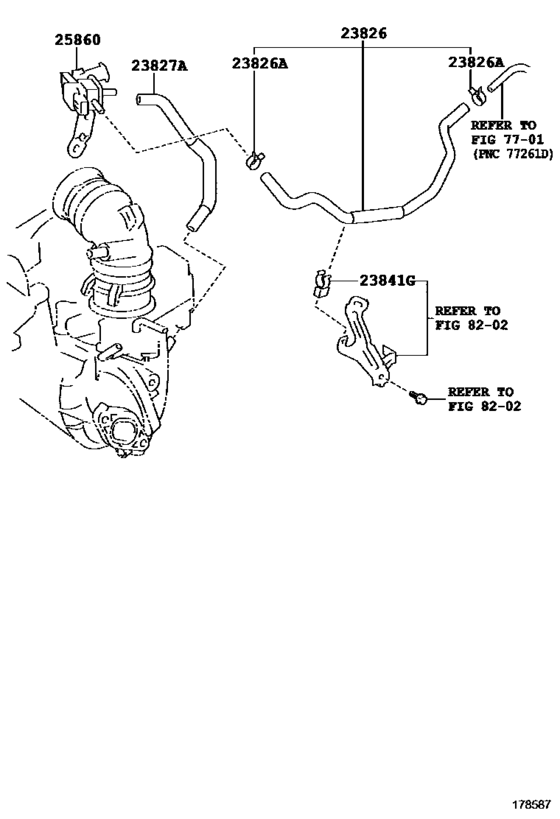

Vacuum Piping ([09.2014 - ] (1409- )1NRFE) 6
| # | OEM | Part name |
|---|---|---|
| 23826 | 23826-47030 | Hose, Fuel Vapor Feed, No.1 |
| 23826 | 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) |
| 23826 | 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) |
| 23827 | 23827-47030 | Hose, Fuel Vapor Feed, No.2 |
| 23841 | 23847-47010 | Clamp, Fuel Hose |
| 25860 | 25860-47020 | Valve Assy, Vacuum Switching, No.1 |
| OEM | Part name | Category |
|---|---|---|
| 23826-47030 | Hose, Fuel Vapor Feed, No.1 | Vacuum Piping ([09.2014 - ] (1409- )1NRFE) |
| 23827-47030 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([09.2014 - ] (1409- )1NRFE) |
| 23847-47010 | Clamp, Fuel Hose | Vacuum Piping ([09.2014 - ] (1409- )1NRFE) |
| 25860-47020 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([09.2014 - ] (1409- )1NRFE) |
| 90466-11003 | Clamp Or Clip(For Radiator Reserve Tank Hose) | Vacuum Piping ([09.2014 - ] (1409- )1NRFE) |
| 90466-A0001 | Clip(For Fuel Vapor Feed Hose, No.1) | Vacuum Piping ([09.2014 - ] (1409- )1NRFE) |
