NSP160

Toyota PROBOX-SUCCEED · 2014 · 2,274 parts · 160 categories

← Back to categories

2,274 items

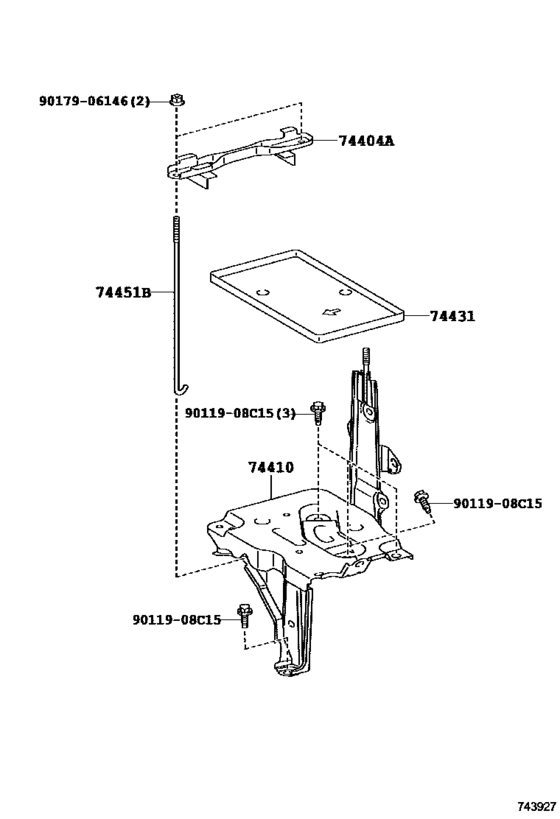

Battery Carrier ([09.2014 - ] (1409- )) 8

#	OEM	Part name
74404	74404-52110	Clamp Sub-Assy, Battery
74404	74404-52130	Clamp Sub-Assy, Battery
74410	74410-52051	Carrier Assy, Battery
74431	74431-52101	Tray, Battery
74431	74431-52111	Tray, Battery
74451	74451-52071	Bolt, Battery Clamp
9011908	90119-08C15	BOLT WWASHER
9017906146	90179-06146	Nut

OEM	Part name	Category
74404-52110	Clamp Sub-Assy, Battery	Battery Carrier ([09.2014 - ] (1409- ))
74404-52130	Clamp Sub-Assy, Battery	Battery Carrier ([09.2014 - ] (1409- ))
74410-52051	Carrier Assy, Battery	Battery Carrier ([09.2014 - ] (1409- ))
74431-52101	Tray, Battery	Battery Carrier ([09.2014 - ] (1409- ))
74431-52111	Tray, Battery	Battery Carrier ([09.2014 - ] (1409- ))
74451-52071	Bolt, Battery Clamp	Battery Carrier ([09.2014 - ] (1409- ))
90119-08C15	BOLT WWASHER	Battery Carrier ([09.2014 - ] (1409- ))
90179-06146	Nut	Battery Carrier ([09.2014 - ] (1409- ))
