NSP152

Toyota YARIS-ECHO-VIOS-LIMO · 2013 · 2,470 parts · 175 categories

2,470 items

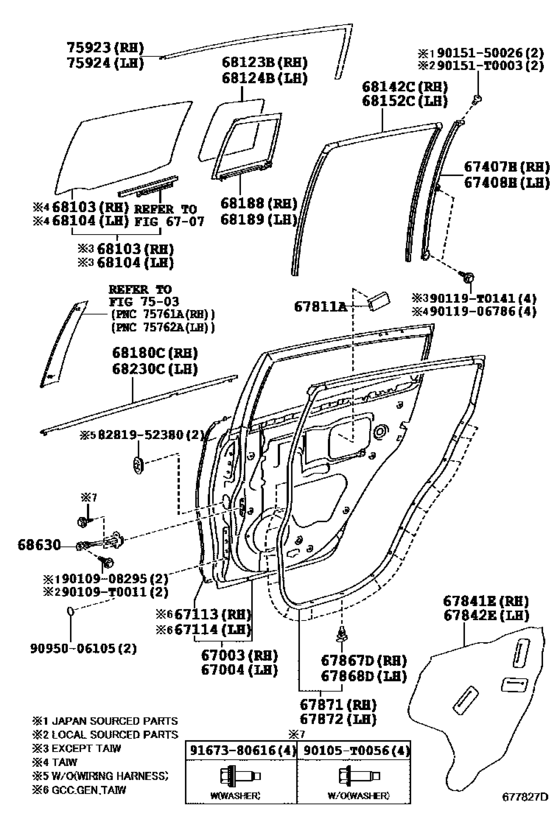

Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- )) 35

#	OEM	Part name
67003	67003-0D240	Panel Sub-Assy, Rear Door, Rh
67004	67004-0D240	Panel Sub-Assy, Rear Door, Lh
67407	67407-0D120	Bar Sub-Assy, Slide Door Window Division, Rh
67408	67408-0D120	Bar Sub-Assy, Slide Door Window Division, Lh
67811	67811-0D010	Pad, Front Door Silencer
67841	67841-0D180	Cover, Rear Door Service Hole, Rh
67841	67841-0D280	Cover, Rear Door Service Hole, Rh
67842	67842-0D010	Cover, Rear Door Service Hole, Lh
67842	67842-0D050	Cover, Rear Door Service Hole, Lh
67867	67867-12150	Clip(For Hood Air Intake Duct Seal)
67871	67871-0D120	Weatherstrip, Rear Door, Rh
67872	67872-0D120	Weatherstrip, Rear Door, Lh
68103	68130-0D350	Glass Sub-Assy, Rear Door, Rh
68104	68140-0D350	Glass Sub-Assy, Rear Door, Lh
68123	68123-0D250	Glass, Rear Door Quarter Window, Rh
68124	68124-0D250	Glass, Rear Door Quarter Window, Lh
68142	68142-0D150	Run, Rear Door Glass, Rh
68152	68152-0D130	Run, Rear Door Glass, Lh
68180	68180-0D180	Weatherstrip Assy, Rear Door Glass, Outer Rh
68188	68188-0D120	Weatherstrip, Rear Door Quarter Window, Rh
68189	68189-0D120	Weatherstrip, Rear Door Quarter Window, Lh
68230	68230-0D180	Weatherstrip Assy, Rear Door Glass, Outer Lh
68630	68630-0D170	Check Assy, Rear Door
75923	75923-0D120	Tape, Black Out, No.2 Rh
75924	75924-0D120	Tape, Black Out, No.2 Lh
90105	90105-T0056	New Genuine Part
90109	90109-T0011	BOLT
90119	90119-T0141	New Genuine Part
90151	90151-T0003	New Genuine Part
8281952380	82819-52380	Grommet(For Rear Door Panel)
9010908295	90109-08295	BOLT
9011906786	90119-06786	BOLT WWASHER
9015150026	90151-50026	SCREW CROSSRECESS
9095006105	90950-06105	Seal, Front Door Front Lower Frame Cover
9167380616	91673-80616	Bolt, W/washer

OEM	Part name	Category
67003-0D240	Panel Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
67004-0D240	Panel Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
67407-0D120	Bar Sub-Assy, Slide Door Window Division, Rh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
67408-0D120	Bar Sub-Assy, Slide Door Window Division, Lh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
67811-0D010	Pad, Front Door Silencer	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
67841-0D180	Cover, Rear Door Service Hole, Rh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
67841-0D280	Cover, Rear Door Service Hole, Rh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
67842-0D010	Cover, Rear Door Service Hole, Lh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
67842-0D050	Cover, Rear Door Service Hole, Lh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
67867-12150	Clip(For Hood Air Intake Duct Seal)	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
67871-0D120	Weatherstrip, Rear Door, Rh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
67872-0D120	Weatherstrip, Rear Door, Lh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
68123-0D250	Glass, Rear Door Quarter Window, Rh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
68124-0D250	Glass, Rear Door Quarter Window, Lh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
68130-0D350	Glass Sub-Assy, Rear Door, Rh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
68140-0D350	Glass Sub-Assy, Rear Door, Lh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
68142-0D150	Run, Rear Door Glass, Rh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
68152-0D130	Run, Rear Door Glass, Lh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
68180-0D180	Weatherstrip Assy, Rear Door Glass, Outer Rh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
68188-0D120	Weatherstrip, Rear Door Quarter Window, Rh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
68189-0D120	Weatherstrip, Rear Door Quarter Window, Lh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
68230-0D180	Weatherstrip Assy, Rear Door Glass, Outer Lh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
68630-0D170	Check Assy, Rear Door	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
75923-0D120	Tape, Black Out, No.2 Rh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
75924-0D120	Tape, Black Out, No.2 Lh	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
82819-52380	Grommet(For Rear Door Panel)	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
90105-T0056	New Genuine Part	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
90109-08295	BOLT	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
90109-T0011	BOLT	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
90119-06786	BOLT WWASHER	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
90119-T0141	New Genuine Part	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
90151-50026	SCREW CROSSRECESS	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
90151-T0003	New Genuine Part	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
90950-06105	Seal, Front Door Front Lower Frame Cover	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
91673-80616	Bolt, W/washer	Rear Door Panel & Glass ([10.2013 - ] DOOR PANEL (1310- ))
