NSP151

Toyota YARIS-ECHO-VIOS-LIMO · 2013 · 2,144 parts · 152 categories

2,144 items

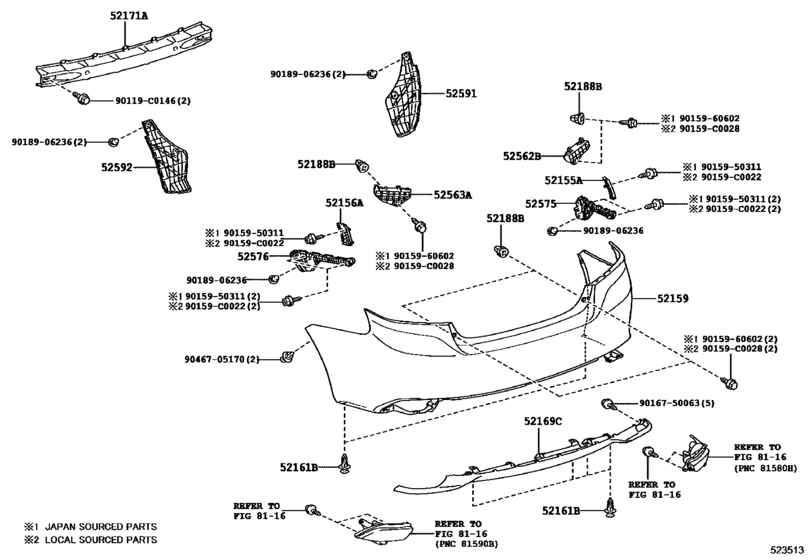

Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D) 22

#	OEM	Part name
52155	52155-0D140	Support, Rear Bumper Side, Rh
52156	52156-0D130	Support, Rear Bumper Side, Lh
52159	52159-0Z931	Cover, Rear Bumper
52161	52161-02040	Piece, Rear Bumper
52169	52169-0D901	Cover, Rear Bumper, Lower
52171	52171-0D090	Reinforcement, Rear Bumper, No.1
52188	52188-06040	Spacer, Rear Bumper Mounting
52562	52562-0D120	Retainer, Rear Bumper, Upper Rh
52563	52563-0D060	Retainer, Rear Bumper, Upper Lh
52575	52575-0D330	Retainer, Rear Bumper Side, Rh
52576	52576-0D320	Retainer, Rear Bumper Side, Lh
52591	52591-0D350	Seal, Rear Bumper Side, Rh
52592	52592-0D350	Seal, Rear Bumper Side, Lh
90119	90119-C0146	New Genuine Part
90159	90159-C0022	New Genuine Part
90159	90159-C0028	New Genuine Part
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015960602	90159-60602	SCREW
9016750063	90167-50063	SCREW PAN TAPPING
9018906236	90189-06236	GROMMET SCREW
9046705170	90467-05170	Clip, Rear Bumper Side

OEM	Part name	Category
52155-0D140	Support, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
52156-0D130	Support, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
52159-0Z931	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
52161-02040	Piece, Rear Bumper	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
52169-0D901	Cover, Rear Bumper, Lower	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
52171-0D090	Reinforcement, Rear Bumper, No.1	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
52188-06040	Spacer, Rear Bumper Mounting	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
52562-0D120	Retainer, Rear Bumper, Upper Rh	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
52563-0D060	Retainer, Rear Bumper, Upper Lh	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
52575-0D330	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
52576-0D320	Retainer, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
52591-0D350	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
52592-0D350	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
90119-C0146	New Genuine Part	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
90159-50311	SCREW	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
90159-60602	SCREW	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
90159-A0034	SCREW WWASHER	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
90159-C0022	New Genuine Part	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
90159-C0028	New Genuine Part	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
90167-50063	SCREW PAN TAPPING	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
90189-06236	GROMMET SCREW	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
90467-05170	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([03.2017 - ] (1703- )4D)
