Search › Model › NSP151
NSP151

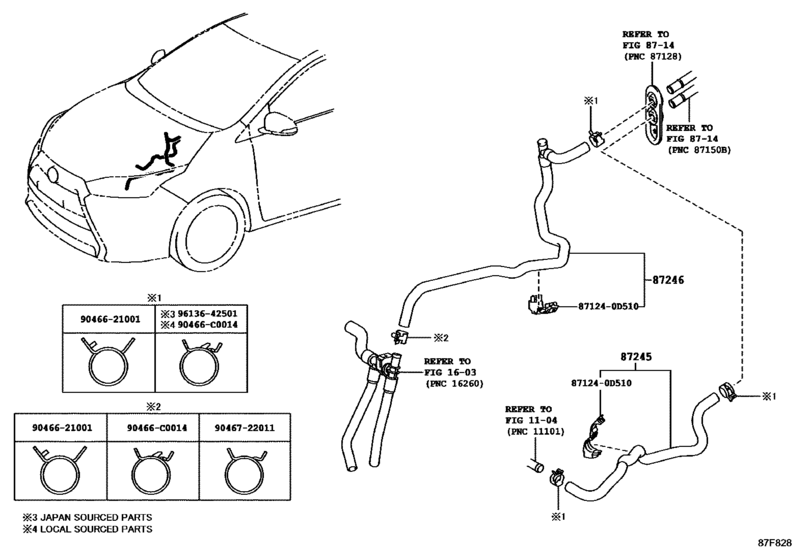

Heating & Air Conditioning - Water Piping ([08.2016 - ] (1608- )CVT) 6
| # | OEM | Part name |
|---|---|---|
| 87245 | 87209-0D620 | Hose, Heater Water, Inlet |
| 87246 | 87209-0D630 | Hose, Heater Water, Outlet |
| 90466 | 90466-C0014 | Clamp Or Clip(For Water By-Pass Hose No.4) |
| 9046621001 | 90466-21001 | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 9046722011 | 90467-22011 | Clip(For Water By-Pass Hose No.1) |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 87209-0D620 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([08.2016 - ] (1608- )CVT) |
| 87209-0D630 | Hose, Heater Water, Outlet | Heating & Air Conditioning - Water Piping ([08.2016 - ] (1608- )CVT) |
| 90466-21001 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Heating & Air Conditioning - Water Piping ([08.2016 - ] (1608- )CVT) |
| 90466-C0014 | Clamp Or Clip(For Water By-Pass Hose No.4) | Heating & Air Conditioning - Water Piping ([08.2016 - ] (1608- )CVT) |
| 90467-22011 | Clip(For Water By-Pass Hose No.1) | Heating & Air Conditioning - Water Piping ([08.2016 - ] (1608- )CVT) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([08.2016 - ] (1608- )CVT) |
