NSP151

Toyota YARIS-ECHO-VIOS-LIMO · 2013 · 2,144 parts · 152 categories

2,144 items

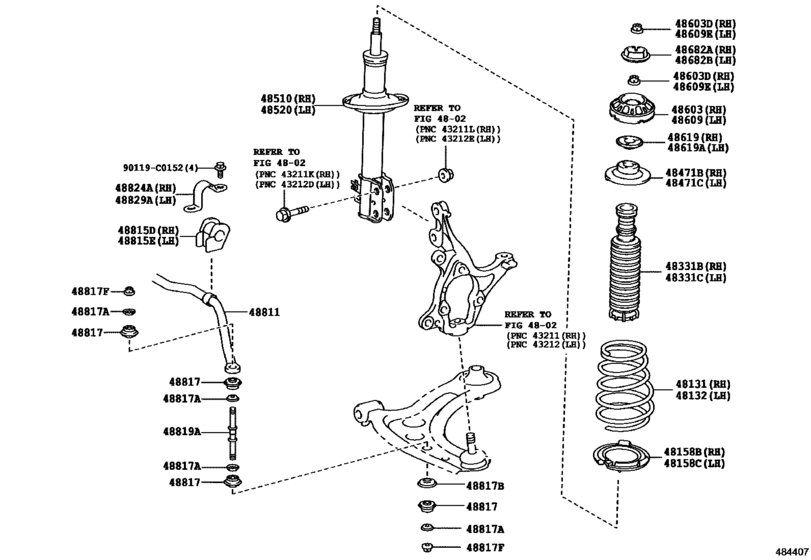

Front Spring & Shock Absorber ([08.2016 - ] (1608- )) 20

#	OEM	Part name
48131	48131-0DE10	Spring, Front Coil, Rh
48158	48158-0D070	Insulator, Front Coil Spring, Lower Rh
48331	48331-0D180	Bumper, Front Spring, Rh
48471	48471-0D120	Seat, Front Coil Spring, Upper Rh
48510	48510-0D710	Absorber Assy, Shock, Front Rh
48603	48609-0D160	Support Sub-Assy, Front Suspension, Rh
48603	90178-C0046	Nut(For Front Support To Front Shock Absorber Rh)
48619	48619-0D040	Bearing, Strut Mounting, Rh
48682	48682-0D151	Support, Front Suspension, No.2 Rh
48811	48811-0D211	Bar, Stabilizer, Front
48815	48815-0D200	Bush, Front Stabilizer Bar, Rh
48817	48817-52010	Cushion, Front Stabilizer
48817	48817-52011	Cushion, Front Stabilizer
48817	90948-02179	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817	90948-02178	Retainer, Cushion, No.2(For Front Stabilizer Bar)
48817	90177-C0001	Nut(For Front Stabilizer Bar)
48817	94182-10800	Nut
48819	48821-52040	Bolt, Front Stabilizer
48824	48824-0D120	Bracket, Front Stabilizer, No.1 Rh
90119	90119-C0152	New Genuine Part

OEM	Part name	Category
48131-0DE10	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48158-0D070	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48331-0D180	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48471-0D120	Seat, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48510-0D710	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48609-0D160	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48619-0D040	Bearing, Strut Mounting, Rh	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48682-0D151	Support, Front Suspension, No.2 Rh	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48811-0D211	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48815-0D200	Bush, Front Stabilizer Bar, Rh	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48817-52010	Cushion, Front Stabilizer	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48817-52011	Cushion, Front Stabilizer	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48821-52040	Bolt, Front Stabilizer	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
48824-0D120	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
90119-C0152	New Genuine Part	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
90177-C0001	Nut(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
90178-C0046	Nut(For Front Support To Front Shock Absorber Rh)	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
90948-02178	Retainer, Cushion, No.2(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
90948-02179	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))
94182-10800	Nut	Front Spring & Shock Absorber ([08.2016 - ] (1608- ))

Source: Public OEM parts-catalog data
Variants: 2 / 121
Category: 152
Collected: 2026-08-04
