NSP150

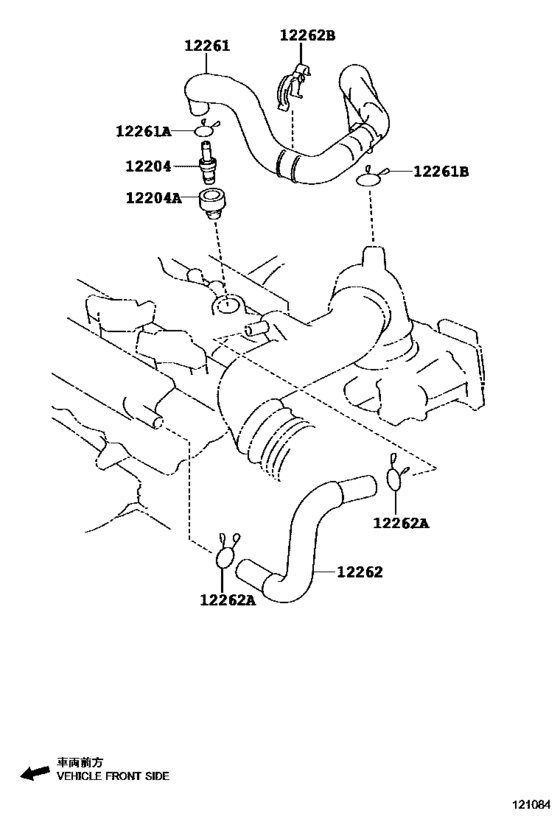

Ventilation Hose ([08.2016 - ] (1608- )) 8
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-47090 | Valve Sub-Assy, Ventilation |
| 12204 | 11249-47020 | Grommet(For Ventilation System) |
| 12261 | 12261-0Y030 | Hose, Ventilation |
| 12261 | 90467-16035 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90467-23002 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-0Y120 | Hose, Ventilation, No.2 |
| 12262 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 16581-0Y060 | Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 11249-47020 | Grommet(For Ventilation System) | Ventilation Hose ([08.2016 - ] (1608- )) |
| 12204-47090 | Valve Sub-Assy, Ventilation | Ventilation Hose ([08.2016 - ] (1608- )) |
| 12261-0Y030 | Hose, Ventilation | Ventilation Hose ([08.2016 - ] (1608- )) |
| 12262-0Y120 | Hose, Ventilation, No.2 | Ventilation Hose ([08.2016 - ] (1608- )) |
| 16581-0Y060 | Clamp(For Ventilation Hose) | Ventilation Hose ([08.2016 - ] (1608- )) |
| 90467-16035 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2016 - ] (1608- )) |
| 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2016 - ] (1608- )) |
| 90467-23002 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.2016 - ] (1608- )) |
