Search › Model › NSP150

NSP150

Toyota YARIS-ECHO-VIOS-LIMO · 2013 · 2,361 parts · 170 categories

2,361 items

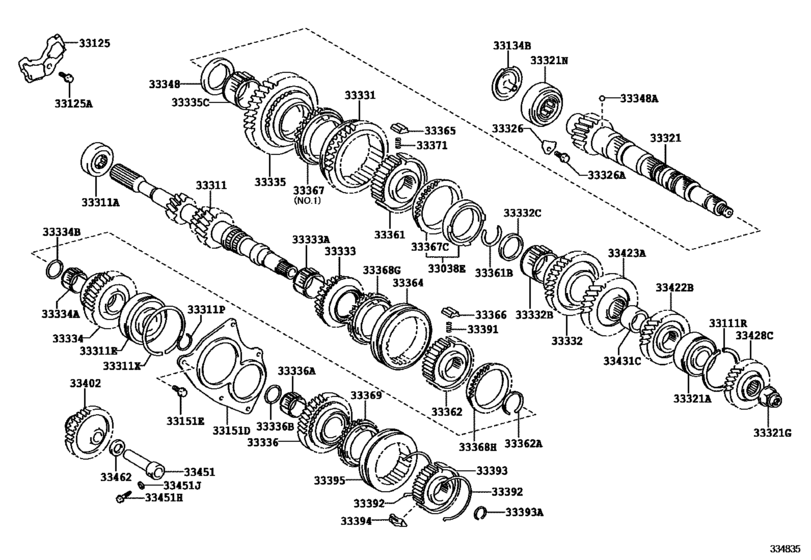

Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F) 82

#	OEM	Part name
33038	33038-0D020	Ring Set, Synchronizer, No.2
33111	90520-57002	Ring, Hole Snap(For Output Shaft Rear Bearing)
33125	33125-0D010	Receiver, Manual Transaxle Case
33125	90119-C0274	Bolt(For Transaxle Case Receiver)
33134	33134-0D070	Cover, Output Shaft(Mtm)
33151	33151-0D030	Retainer, Bearing, Rear(Mtm)
33151	90119-C0276	Bolt(For Rear Bearing Retainer)
33311	33311-0D121	Shaft, Input
33311	90365-C0009	Bearing (For Input Shaft Front)
33311	90363-C0028	Bearing, Radial Ball (For Input Shaft Rear)
33311	90520-22006	Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311	90520-22007	Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311	90520-22008	Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311	90520-22009	Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311	90520-22010	Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311	90520-22011	Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311	90520-64002	Ring, Hole Snap (For Input Shaft Rear Bearing)
33321	33321-0D300	Shaft, Output
33321	90363-C0029	Bearing (For Output Shaft Rear)
33321	90179-C0001	Nut (For Manual Transmission Output Shaft Rear Set)
33321	90365-C0010	Bearing (For Output Shaft Front)
33326	33326-0D010	Plate, Bearing Lock
33331	33331-0D061	Gear, Reverse
33332	33332-0D100	Gear, 2Nd
33332	90364-C0021	Bearing, Needle Roller (For 2Nd Gear)
33332	90560-C0012	Spacer (For 2Nd Gear Bearing)
33333	33034-0D110	Gear, 3Rd
33333	90364-C0003	Bearing, Needle Roller (For 3Rd Gear)
33334	33035-0D100	Gear, 4Th
33334	90364-C0004	Bearing, Needle Roller (For 4Th Gear)
33334	90560-C0005	Spacer (For 4Th Gear Bearing)
33335	33335-0D110	Gear, 1St
33335	90364-C0020	Bearing, Needle Roller(For 1St Gear)
33336	33336-0D160	Gear, 5Th
33336	90364-C0014	Bearing, Needle Roller (For 5Th Gear)
33336	90560-C0006	Spacer (For 5Th Gear Bearing)
33348	33348-0D030	Washer, 1St Gear Thrust
33348	90360-C0006	Pin Or Ball (For 1St Gear Thrust Washer)
33361	33361-0D071	Hub, Transmission Clutch, No.1
33361	90520-29018	Ring, Shaft Snap (For Clutch Hub No.1)
33361	90520-29019	Ring, Shaft Snap (For Clutch Hub No.1)
33361	90520-29020	Ring, Shaft Snap (For Clutch Hub No.1)
33361	90520-29021	Ring, Shaft Snap (For Clutch Hub No.1)
33361	90520-29022	Ring, Shaft Snap (For Clutch Hub No.1)
33361	90520-29023	Ring, Shaft Snap (For Clutch Hub No.1)
33362	33362-0D090	Hub, Transmission Clutch, No.2
33362	90520-27046	Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362	90520-27047	Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362	90520-27048	Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362	90520-27049	Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362	90520-27050	Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362	90520-27051	Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33364	33364-0D080	Sleeve, Transmission Hub, No.2
33365	33365-0D020	Key, Synchromesh Shifting, No.1
33366	33366-0D020	Key, Synchromesh Shifting, No.2
33367	33367-0D061	Ring, Synchronizer, No.1
33367	33367-0D050	Ring, Synchronizer (For 2Nd Gear)
33368	33368-0D090	Ring, Synchronizer (For 3Rd Gear)
33368	33368-52050	Ring, Synchronizer (For 4Th Gear)
33369	33369-0D050	Ring, Synchronizer, No.3
33371	33371-52030	Spring, Synchromesh Shifting Key, No.1
33391	33391-0D020	Spring, Synchromesh Shifting Key, No.2
33392	33391-12030	Spring, Synchromesh Shifting Key (For No.3 Clutch Hub)
33393	33393-0D090	Hub, Transmission Clutch, No.3
33393	90520-18002	Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393	90520-18003	Ring, Shaft Snap (For Output Shaft Front)
33393	90520-18004	Ring, Shaft Snap (For Output Shaft Front)
33393	90520-18006	Ring, Shaft Snap (For Output Shaft Front)
33393	90520-18007	Ring, Shaft Snap (For Output Shaft Front)
33393	90520-18008	Ring, Shaft Snap (For Output Shaft Front)
33393	90520-18009	Ring, Shaft Snap (For Output Shaft Front)
33394	33394-0D020	Key, Synchromesh Shifting, No.3
33395	33395-0D100	Sleeve, Transmission Hub, No.3
33402	33402-0D110	Gear Sub-Assy, Reverse Idler
33422	33422-0D100	Gear, 4Th Driven
33423	33423-0D110	Gear, 3Rd Driven
33428	33428-0D170	Gear, 5Th Driven
33431	33431-0D080	Spacer, Output Gear
33451	33451-0D060	Shaft, Reverse Idler Gear
33451	90105-C0220	Bolt (For Reverse Idler Gear Shaft)
33451	90430-C0010	Gasket (For Reverse Idler Gear Shaft)
33462	33462-12010	Washer, Reverse Idler Thrust

OEM	Part name	Category
33034-0D110	Gear, 3Rd	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33035-0D100	Gear, 4Th	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33038-0D020	Ring Set, Synchronizer, No.2	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33125-0D010	Receiver, Manual Transaxle Case	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33134-0D070	Cover, Output Shaft(Mtm)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33151-0D030	Retainer, Bearing, Rear(Mtm)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33311-0D121	Shaft, Input	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33321-0D300	Shaft, Output	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33326-0D010	Plate, Bearing Lock	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33331-0D061	Gear, Reverse	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33332-0D100	Gear, 2Nd	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33335-0D110	Gear, 1St	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33336-0D160	Gear, 5Th	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33348-0D030	Washer, 1St Gear Thrust	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33361-0D071	Hub, Transmission Clutch, No.1	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33362-0D090	Hub, Transmission Clutch, No.2	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33364-0D080	Sleeve, Transmission Hub, No.2	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33365-0D020	Key, Synchromesh Shifting, No.1	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33366-0D020	Key, Synchromesh Shifting, No.2	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33367-0D050	Ring, Synchronizer (For 2Nd Gear)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33367-0D061	Ring, Synchronizer, No.1	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33368-0D090	Ring, Synchronizer (For 3Rd Gear)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33368-52050	Ring, Synchronizer (For 4Th Gear)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33369-0D050	Ring, Synchronizer, No.3	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33371-52030	Spring, Synchromesh Shifting Key, No.1	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33391-0D020	Spring, Synchromesh Shifting Key, No.2	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33391-12030	Spring, Synchromesh Shifting Key (For No.3 Clutch Hub)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33393-0D090	Hub, Transmission Clutch, No.3	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33394-0D020	Key, Synchromesh Shifting, No.3	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33395-0D100	Sleeve, Transmission Hub, No.3	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33402-0D110	Gear Sub-Assy, Reverse Idler	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33422-0D100	Gear, 4Th Driven	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33423-0D110	Gear, 3Rd Driven	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33428-0D170	Gear, 5Th Driven	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33431-0D080	Spacer, Output Gear	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33451-0D060	Shaft, Reverse Idler Gear	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
33462-12010	Washer, Reverse Idler Thrust	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90105-C0220	Bolt (For Reverse Idler Gear Shaft)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90119-C0274	Bolt(For Transaxle Case Receiver)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90119-C0276	Bolt(For Rear Bearing Retainer)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90179-C0001	Nut (For Manual Transmission Output Shaft Rear Set)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90360-C0006	Pin Or Ball (For 1St Gear Thrust Washer)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90363-C0028	Bearing, Radial Ball (For Input Shaft Rear)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90363-C0029	Bearing (For Output Shaft Rear)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90364-C0003	Bearing, Needle Roller (For 3Rd Gear)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90364-C0004	Bearing, Needle Roller (For 4Th Gear)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90364-C0014	Bearing, Needle Roller (For 5Th Gear)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90364-C0020	Bearing, Needle Roller(For 1St Gear)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90364-C0021	Bearing, Needle Roller (For 2Nd Gear)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90365-C0009	Bearing (For Input Shaft Front)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90365-C0010	Bearing (For Output Shaft Front)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90430-C0010	Gasket (For Reverse Idler Gear Shaft)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-18002	Ring, Shaft Snap (For Transmission Clutch Hub No.3)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-18003	Ring, Shaft Snap (For Output Shaft Front)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-18004	Ring, Shaft Snap (For Output Shaft Front)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-18006	Ring, Shaft Snap (For Output Shaft Front)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-18007	Ring, Shaft Snap (For Output Shaft Front)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-18008	Ring, Shaft Snap (For Output Shaft Front)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-18009	Ring, Shaft Snap (For Output Shaft Front)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-22006	Ring, Shaft Snap (For Input Shaft Rear Bearing)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-22007	Ring, Shaft Snap (For Input Shaft Rear Bearing)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-22008	Ring, Shaft Snap (For Input Shaft Rear Bearing)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-22009	Ring, Shaft Snap (For Input Shaft Rear Bearing)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-22010	Ring, Shaft Snap (For Input Shaft Rear Bearing)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-22011	Ring, Shaft Snap (For Input Shaft Rear Bearing)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-27046	Ring, Shaft Snap (For Clutch Hub No.2 Setting)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-27047	Ring, Shaft Snap (For Clutch Hub No.2 Setting)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-27048	Ring, Shaft Snap (For Clutch Hub No.2 Setting)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-27049	Ring, Shaft Snap (For Clutch Hub No.2 Setting)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-27050	Ring, Shaft Snap (For Clutch Hub No.2 Setting)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-27051	Ring, Shaft Snap (For Clutch Hub No.2 Setting)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-29018	Ring, Shaft Snap (For Clutch Hub No.1)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-29019	Ring, Shaft Snap (For Clutch Hub No.1)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-29020	Ring, Shaft Snap (For Clutch Hub No.1)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-29021	Ring, Shaft Snap (For Clutch Hub No.1)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-29022	Ring, Shaft Snap (For Clutch Hub No.1)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-29023	Ring, Shaft Snap (For Clutch Hub No.1)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-57002	Ring, Hole Snap(For Output Shaft Rear Bearing)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90520-64002	Ring, Hole Snap (For Input Shaft Rear Bearing)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90560-C0005	Spacer (For 4Th Gear Bearing)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90560-C0006	Spacer (For 5Th Gear Bearing)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
90560-C0012	Spacer (For 2Nd Gear Bearing)	Transmission Gear (Mtm) ([12.2013 - ] C50,C51 (1312- )5F)
