NSP150

Toyota YARIS-ECHO-VIOS-LIMO · 2013 · 2,361 parts · 170 categories

← Back to categories

2,361 items

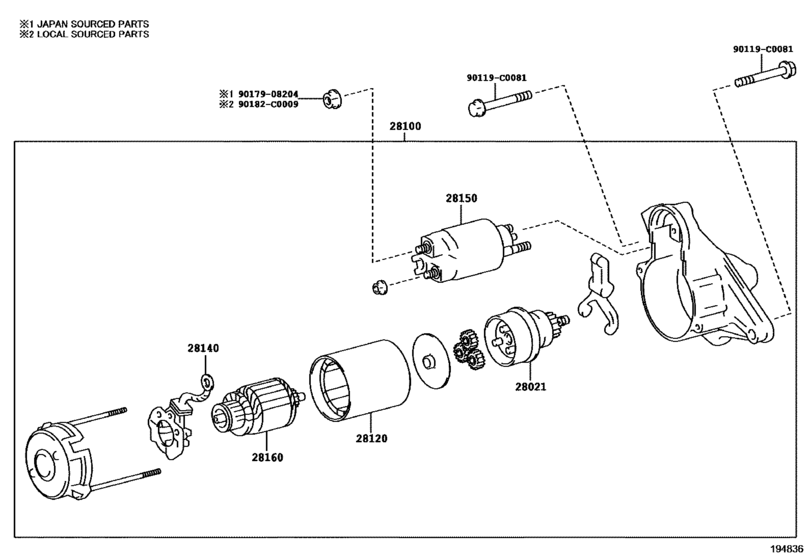

Starter ([08.2016 - ] 12V 1.7KW (1608- )) 10

#	OEM	Part name
28021	28021-0T360	Clutch Sub-Assy, Starter Center Bearing
28100	28100-0Y330	Starter Assy
28120	28120-0Y330	Yoke Assy, Starter
28140	28140-0V040	Holder Assy, Starter Brush
28150	28150-0Y330	Switch Assy, Magnet Starter
28160	28160-0S050	Armature Assy, Starter
90119	90119-C0081	New Genuine Part
90182	90182-C0009	New Genuine Part
9017908204	90179-08204	Nut
9017908204	90080-18070	NUT, WWASHER

OEM	Part name	Category
28021-0T360	Clutch Sub-Assy, Starter Center Bearing	Starter ([08.2016 - ] 12V 1.7KW (1608- ))
28100-0Y330	Starter Assy	Starter ([08.2016 - ] 12V 1.7KW (1608- ))
28120-0Y330	Yoke Assy, Starter	Starter ([08.2016 - ] 12V 1.7KW (1608- ))
28140-0V040	Holder Assy, Starter Brush	Starter ([08.2016 - ] 12V 1.7KW (1608- ))
28150-0Y330	Switch Assy, Magnet Starter	Starter ([08.2016 - ] 12V 1.7KW (1608- ))
28160-0S050	Armature Assy, Starter	Starter ([08.2016 - ] 12V 1.7KW (1608- ))
90080-18070	NUT, WWASHER	Starter ([08.2016 - ] 12V 1.7KW (1608- ))
90119-C0081	New Genuine Part	Starter ([08.2016 - ] 12V 1.7KW (1608- ))
90179-08204	Nut	Starter ([08.2016 - ] 12V 1.7KW (1608- ))
90182-C0009	New Genuine Part	Starter ([08.2016 - ] 12V 1.7KW (1608- ))
