Search › Model › NSP150

NSP150

Toyota YARIS-ECHO-VIOS-LIMO · 2013 · 2,361 parts · 170 categories

2,361 items

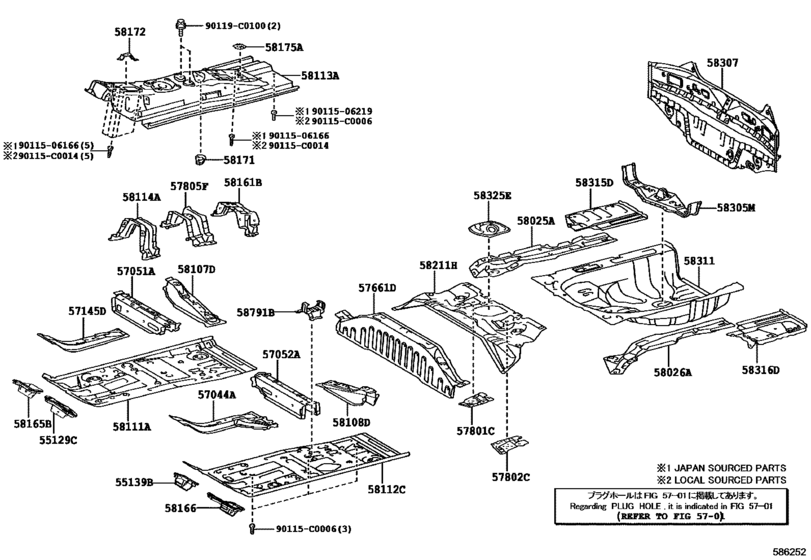

Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D) 37

#	OEM	Part name
55129	55129-0D120	Cover, Dash Panel Hole
55139	55139-0D040	Cover, Dash Panel Hole
57044	57044-0D060	Reinforcement Sub-Assy, Front Side Member, Rear Lh - FRONT SIDE MENBER, RREAR LH
57051	57051-0D020	Member Sub-Assy, Front Floor Cross, Rh
57052	57052-0D020	Member Sub-Assy, Front Floor Cross, Lh
57145	57145-0D061	Reinforcement, Front Side Member To Floor Pan
57661	57661-0D090	Member, Rear Floor Cross, Front
57801	57801-0D110	Reinforcement Sub-Assy, Belt Anchor, No.1 Rh
57802	57802-0D100	Reinforcement Sub-Assy, Belt Anchor, No.1 Lh
57805	57805-0D080	Reinforcement Sub-Assy, Belt Anchor, No.1
58025	58025-0D050	Panel Sub-Assy, Floor Side Rail, Fr Rh
58026	58026-0D050	Panel Sub-Assy, Floor Side Rail, Fr Lh
58107	58107-0D020	Reinforce Sub-Assy, Front Cross To Front Panel, Rh
58108	58108-0D020	Reinforce Sub-Assy, Front Cross To Front Panel, Lh
58111	58111-0D120	Pan, Front Floor, Rh
58112	58112-0D907	Pan, Front Floor, Lh
58113	58113-0D909	Panel, Front Floor, Center
58114	58114-0D080	Reinforcement, Front Floor Panel
58161	58161-0D110	Reinforcement, Belt Anchor To Floor Pan
58165	58165-0D030	Cover, Front Floor, Rh
58166	58166-0D030	Cover, Front Floor, Lh
58171	58171-0D040	Reinforcement, Parking Brake Base
58172	58172-0D020	Bracket, Computer Mounting, No.3
58175	58175-0D010	Reinforcement, Parking Brake Base, No.1
58211	58211-0D120	Pan, Center Floor
58305	58305-0D050	Reinforce Sub-Assy, Spare Wheel Carrier
58307	58307-0D070	Panel Sub-Assy, Body Lower Back
58311	58311-0D230	Pan, Rear Floor
58315	58315-0D190	Extension, Rear Floor Pan, Rh
58316	58316-0D210	Extension, Rear Floor Pan, Lh
58325	58325-0D080	Cover, Rear Floor Service Hole
58791	58791-0D080	Carrier, Jack
90115	90115-C0006	Bolt, Weld(For Front Floor Pan, Lh)
90115	90115-C0014	Bolt, Weld(For Front Floor Pan)
90119	90119-C0100	New Genuine Part
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)

OEM	Part name	Category
55129-0D120	Cover, Dash Panel Hole	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
55139-0D040	Cover, Dash Panel Hole	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
57044-0D060	Reinforcement Sub-Assy, Front Side Member, Rear Lh - FRONT SIDE MENBER, RREAR LH	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
57051-0D020	Member Sub-Assy, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
57052-0D020	Member Sub-Assy, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
57145-0D061	Reinforcement, Front Side Member To Floor Pan	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
57661-0D090	Member, Rear Floor Cross, Front	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
57801-0D110	Reinforcement Sub-Assy, Belt Anchor, No.1 Rh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
57802-0D100	Reinforcement Sub-Assy, Belt Anchor, No.1 Lh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
57805-0D080	Reinforcement Sub-Assy, Belt Anchor, No.1	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58025-0D050	Panel Sub-Assy, Floor Side Rail, Fr Rh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58026-0D050	Panel Sub-Assy, Floor Side Rail, Fr Lh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58107-0D020	Reinforce Sub-Assy, Front Cross To Front Panel, Rh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58108-0D020	Reinforce Sub-Assy, Front Cross To Front Panel, Lh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58111-0D120	Pan, Front Floor, Rh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58112-0D907	Pan, Front Floor, Lh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58113-0D909	Panel, Front Floor, Center	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58114-0D080	Reinforcement, Front Floor Panel	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58161-0D110	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58165-0D030	Cover, Front Floor, Rh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58166-0D030	Cover, Front Floor, Lh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58171-0D040	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58172-0D020	Bracket, Computer Mounting, No.3	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58175-0D010	Reinforcement, Parking Brake Base, No.1	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58211-0D120	Pan, Center Floor	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58305-0D050	Reinforce Sub-Assy, Spare Wheel Carrier	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58307-0D070	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58311-0D230	Pan, Rear Floor	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58315-0D190	Extension, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58316-0D210	Extension, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58325-0D080	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
58791-0D080	Carrier, Jack	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
90115-C0006	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
90115-C0014	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
90119-C0100	New Genuine Part	Floor Pan & Lower Back Panel ([03.2017 - ] (1703- )4D)
