NSP141

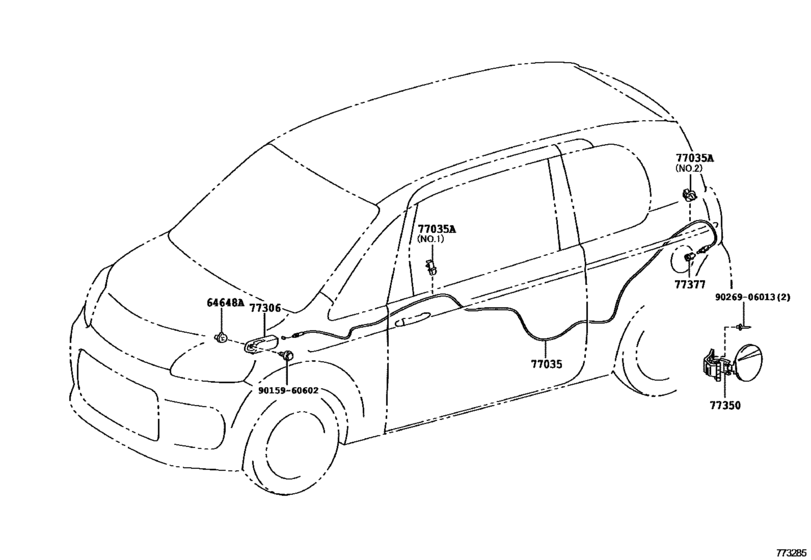

Fuel Tank & Tube ([07.2012 - ] ﾌｭｰｴﾙﾘｯﾄﾞ ｵｰﾌﾟﾅ (1207- )) 9
| # | OEM | Part name |
|---|---|---|
| 64648 | 64648-32020 | Grommet, Luggage Door Lock Opener |
| 77035 | 77035-52350 | Cable Sub-Assy, Fuel Lid Lock Control |
| 77035 | 90469-04004 | Clamp (For Fuel Lid Lock Control Cable) |
| 77035 | 90469-06005 | Clamp(For Hood Lock Control Cable) |
| 77306 | 77306-52050 | Lever Sub-Assy, Fuel Lid Lock Open |
| 77350 | 77350-52200 | Lid Assy, Fuel Filler Opening |
| 77377 | 77377-75010 | Retainer, Fuel Filler Opening Lid Lock |
| 9015960602 | 90159-60602 | SCREW |
| 9026906013 | 90269-06013 | RIVET |
| OEM | Part name | Category |
|---|---|---|
| 64648-32020 | Grommet, Luggage Door Lock Opener | Fuel Tank & Tube ([07.2012 - ] ﾌｭｰｴﾙﾘｯﾄﾞ ｵｰﾌﾟﾅ (1207- )) |
| 77035-52350 | Cable Sub-Assy, Fuel Lid Lock Control | Fuel Tank & Tube ([07.2012 - ] ﾌｭｰｴﾙﾘｯﾄﾞ ｵｰﾌﾟﾅ (1207- )) |
| 77306-52050 | Lever Sub-Assy, Fuel Lid Lock Open | Fuel Tank & Tube ([07.2012 - ] ﾌｭｰｴﾙﾘｯﾄﾞ ｵｰﾌﾟﾅ (1207- )) |
| 77350-52200 | Lid Assy, Fuel Filler Opening | Fuel Tank & Tube ([07.2012 - ] ﾌｭｰｴﾙﾘｯﾄﾞ ｵｰﾌﾟﾅ (1207- )) |
| 77377-75010 | Retainer, Fuel Filler Opening Lid Lock | Fuel Tank & Tube ([07.2012 - ] ﾌｭｰｴﾙﾘｯﾄﾞ ｵｰﾌﾟﾅ (1207- )) |
| 90159-60602 | SCREW | Fuel Tank & Tube ([07.2012 - ] ﾌｭｰｴﾙﾘｯﾄﾞ ｵｰﾌﾟﾅ (1207- )) |
| 90269-06013 | RIVET | Fuel Tank & Tube ([07.2012 - ] ﾌｭｰｴﾙﾘｯﾄﾞ ｵｰﾌﾟﾅ (1207- )) |
| 90469-04004 | Clamp (For Fuel Lid Lock Control Cable) | Fuel Tank & Tube ([07.2012 - ] ﾌｭｰｴﾙﾘｯﾄﾞ ｵｰﾌﾟﾅ (1207- )) |
| 90469-06005 | Clamp(For Hood Lock Control Cable) | Fuel Tank & Tube ([07.2012 - ] ﾌｭｰｴﾙﾘｯﾄﾞ ｵｰﾌﾟﾅ (1207- )) |
