Search › Model › NSP135

NSP135

Toyota VITZ · 2010 · 4,157 parts · 240 categories

4,157 items

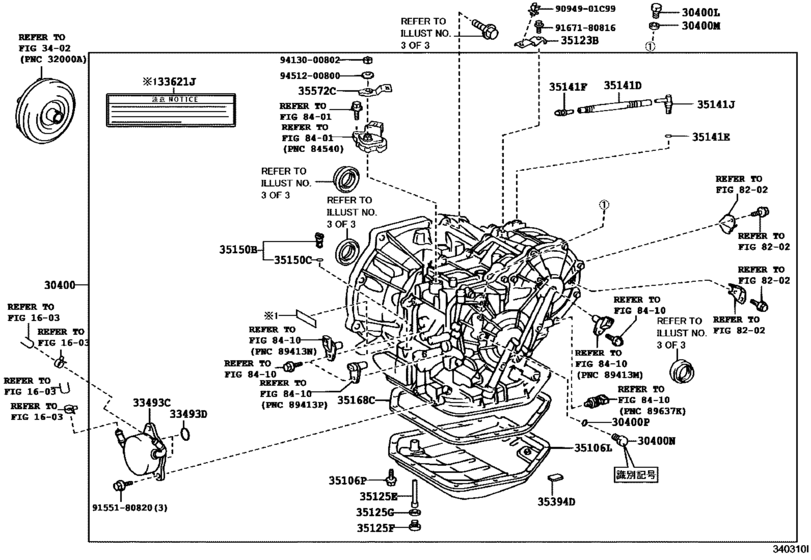

Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135) 40

#	OEM	Part name
30400	30400-52310	Transaxle Assy, Continuously Variable
30400	30400-52311	Transaxle Assy, Continuously Variable
30400	90341-12025	Plug, No.4
30400	90430-12221	Gasket
30400	90341-18061	Plug, Hole (CVT TC)
30400	90341-18077	Plug , Filler(CVT FE)
30400	90430-18008	Gasket
30400	90430-T0021	Gasket(For Manual Transmission Filler Plug)
30400	91552-81245	Bolt(For Transaxle & Engine Setting)
30400	90311-49002	Seal, Type T Oil, No.1(For Cvt)
30400	90311-45025	Seal, Type T Oil(For Cvt Oil Pump)
30400	90311-45027	Seal, Type T Oil(For Cvt Oil Pump)
33493	33493-52010	Cooler, Oil
33493	90301-20012	Ring, O (For Transmission Oil Cooler)
33621	33621-12150	Label, Transaxle Oil Information
35106	35106-12130	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	35106-12131	Pan Sub-Assy, Transaxle Oil(Cvt)
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35123	35123-52050	Skirt,transmission Breather
35125	35125-12400	Tube, Transmission Oil Filler, No.1
35125	90341-12034	Plug Sub-Assy, Drain (Atm)
35125	90430-12008	Gasket (For Shift Inter Lock Plate)
35141	35121-52020	Hose(For Breather Plug)
35141	90301-06005	Ring, O (For Breather Plug)
35141	90301-06021	Ring, O (For Breather Plug)
35141	90930-03149	Plug Sub-Assy, Breather(For Transmission)
35141	90930-03191	Plug, Breather, No.1(Cvt)
35150	35150-44010	Plug(For Transmission Case)
35150	35150-48010	Plug, Transaxle Hole
35150	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35168	35168-12090	Gasket, Transaxle Oil Pan(Cvt)
35168	35168-12091	Gasket, Transaxle Oil Pan(Cvt)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35572	35572-12170	Lever, Transmission Control Shaft
9094901	90949-01C99	Clip, Radiator Hose, No.5
9155180820	91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
30400-52310	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
30400-52311	Transaxle Assy, Continuously Variable	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
33493-52010	Cooler, Oil	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
33621-12150	Label, Transaxle Oil Information	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
35106-12130	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
35106-12131	Pan Sub-Assy, Transaxle Oil(Cvt)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
35121-52020	Hose(For Breather Plug)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
35123-52050	Skirt,transmission Breather	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
35125-12400	Tube, Transmission Oil Filler, No.1	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
35150-44010	Plug(For Transmission Case)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
35150-48010	Plug, Transaxle Hole	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
35168-12090	Gasket, Transaxle Oil Pan(Cvt)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
35168-12091	Gasket, Transaxle Oil Pan(Cvt)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
35572-12170	Lever, Transmission Control Shaft	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90170-A0001	New Genuine Part	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90301-06005	Ring, O (For Breather Plug)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90301-06021	Ring, O (For Breather Plug)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90301-20012	Ring, O (For Transmission Oil Cooler)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90311-45025	Seal, Type T Oil(For Cvt Oil Pump)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90311-45027	Seal, Type T Oil(For Cvt Oil Pump)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90311-49002	Seal, Type T Oil, No.1(For Cvt)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90341-12025	Plug, No.4	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90341-12034	Plug Sub-Assy, Drain (Atm)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90341-18061	Plug, Hole (CVT TC)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90341-18077	Plug , Filler(CVT FE)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90430-12008	Gasket (For Shift Inter Lock Plate)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90430-12221	Gasket	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90430-18008	Gasket	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90930-03149	Plug Sub-Assy, Breather(For Transmission)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90930-03191	Plug, Breather, No.1(Cvt)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
90949-01C99	Clip, Radiator Hose, No.5	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
91551-80820	Bolt, W/washer (For Transmission Oil Pump Cover)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
91552-81245	Bolt(For Transaxle & Engine Setting)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
94130-00802	Nut, No.1 (For Center Support Bearing)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Transaxle Assy(Cvt) ([12.2010 - ] K310F (1012- )NSP135)
