NSP135

Toyota VITZ · 2010 · 4,157 parts · 240 categories

4,157 items

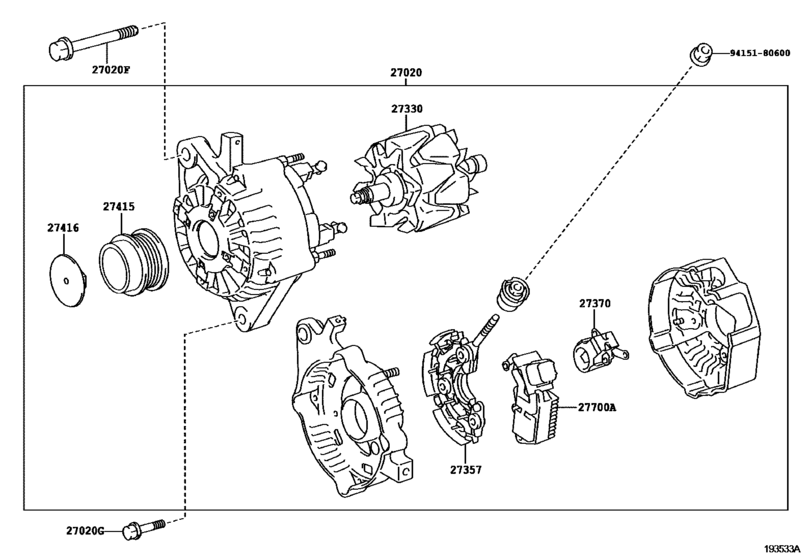

Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE) 21

#	OEM	Part name
27020	27060-47100	Alternator Assy
27020	27060-47210	Alternator Assy
27020	27060-47110	Alternator Assy
27020	27060-47200	Alternator Assy
27020	90105-10075	Bolt(For Alternator)
27020	91552-81075	Bolt, No.1(For Alternator)
27020	91551-80840	Bolt(For Head To Camshaft Bearing Cap)
27330	27330-30070	Rotor Assy, Alternator
27330	27330-30130	Rotor Assy, Alternator
27330	27330-47310	Rotor Assy, Alternator
27330	27330-47330	Rotor Assy, Alternator
27357	27357-22200	Holder, Alternator, W/rectifier
27370	27370-23120	Holder Assy, Alternator Brush
27370	27370-31220	Holder Assy, Alternator Brush
27415	27415-0Y050	Pulley, Alternator W/clutch
27415	27415-0Y051	Pulley, Alternator W/clutch
27415	27415-0Y060	Pulley, Alternator W/clutch
27415	27415-0Y061	Pulley, Alternator W/clutch
27416	27416-0W050	Cap, Alternator Pulley
27700	27700-28080	Regulator Assy, Generator
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
27060-47100	Alternator Assy	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27060-47110	Alternator Assy	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27060-47200	Alternator Assy	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27060-47210	Alternator Assy	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27330-30070	Rotor Assy, Alternator	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27330-30130	Rotor Assy, Alternator	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27330-47310	Rotor Assy, Alternator	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27330-47330	Rotor Assy, Alternator	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27357-22200	Holder, Alternator, W/rectifier	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27370-23120	Holder Assy, Alternator Brush	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27370-31220	Holder Assy, Alternator Brush	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27415-0Y050	Pulley, Alternator W/clutch	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27415-0Y051	Pulley, Alternator W/clutch	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27415-0Y060	Pulley, Alternator W/clutch	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27415-0Y061	Pulley, Alternator W/clutch	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27416-0W050	Cap, Alternator Pulley	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
27700-28080	Regulator Assy, Generator	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
90105-10075	Bolt(For Alternator)	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
91551-80840	Bolt(For Head To Camshaft Bearing Cap)	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
91552-81075	Bolt, No.1(For Alternator)	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Alternator ([12.2010 - 04.2014] 12V 80A (1012-1404)1NRFE)
