Search › Model › NSP110

NSP110

Toyota URBAN-CRUISER · 2009 · 3,620 parts · 180 categories

3,620 items

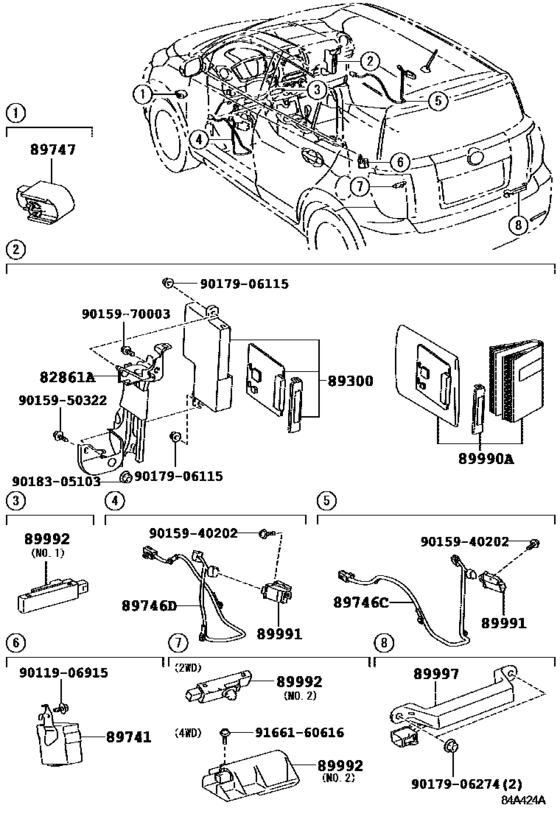

Wireless Door Lock ([01.2009 - ] (0901- )LHD) 27

#	OEM	Part name
82861	82860-52010	Bracket, Computer Integration, No.1
89300	89300-52080	Box Assy, Ecu Aggregation
89300	89300-52120	Box Assy, Ecu Aggregation
89300	89300-52150	Box Assy, Ecu Aggregation
89741	89741-52252	Receiver, Door Control
89741	89741-52601	Receiver, Door Control
89741	89741-52440	Receiver, Door Control
89741	89741-52600	Receiver, Door Control
89741	89740-52051	Receiver, Door Control
89746	89746-52140	Harness, Electrical Key Wire, No.1
89746	89746-52150	Harness, Electrical Key Wire, No.2
89747	89747-52010	Buzzer, Wireless Door Lock
89990	89990-52230	Computer Assy, Smart Key
89990	89990-52280	Computer Assy, Smart Key
89991	89991-30040	Oscillator, Door Electrical Key
89991	89991-30050	Oscillator, Door Electrical Key
89992	89992-52010	Oscillator, Indoor Electrical Key
89992	89992-52020	Oscillator, Indoor Electrical Key
89997	89997-52010	Antenna, Electrical Key
9011906915	90119-06915	BOLT W-WASHER
9015940202	90159-40202	SCREW WWASHER
9015950322	90159-50322	SCREW WWASHER
9015970003	90159-70003	Bolt, W/washer
9017906115	90179-06115	Nut (For Rear Wiper Arm Setting)
9017906274	90179-06274	Nut
9018305103	90183-05103	NUT
9166160616	91661-60616	BOLT

OEM	Part name	Category
82860-52010	Bracket, Computer Integration, No.1	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89300-52080	Box Assy, Ecu Aggregation	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89300-52120	Box Assy, Ecu Aggregation	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89300-52150	Box Assy, Ecu Aggregation	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89740-52051	Receiver, Door Control	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89741-52252	Receiver, Door Control	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89741-52440	Receiver, Door Control	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89741-52600	Receiver, Door Control	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89741-52601	Receiver, Door Control	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89746-52140	Harness, Electrical Key Wire, No.1	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89746-52150	Harness, Electrical Key Wire, No.2	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89747-52010	Buzzer, Wireless Door Lock	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89990-52230	Computer Assy, Smart Key	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89990-52280	Computer Assy, Smart Key	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89991-30040	Oscillator, Door Electrical Key	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89991-30050	Oscillator, Door Electrical Key	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89992-52010	Oscillator, Indoor Electrical Key	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89992-52020	Oscillator, Indoor Electrical Key	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
89997-52010	Antenna, Electrical Key	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
90119-06915	BOLT W-WASHER	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
90159-40202	SCREW WWASHER	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
90159-50322	SCREW WWASHER	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
90159-70003	Bolt, W/washer	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
90179-06115	Nut (For Rear Wiper Arm Setting)	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
90179-06274	Nut	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
90183-05103	NUT	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
91661-60616	BOLT	Wireless Door Lock ([01.2009 - ] (0901- )LHD)
