Search › Model › NSP110

NSP110

Toyota URBAN-CRUISER · 2009 · 3,620 parts · 180 categories

3,620 items

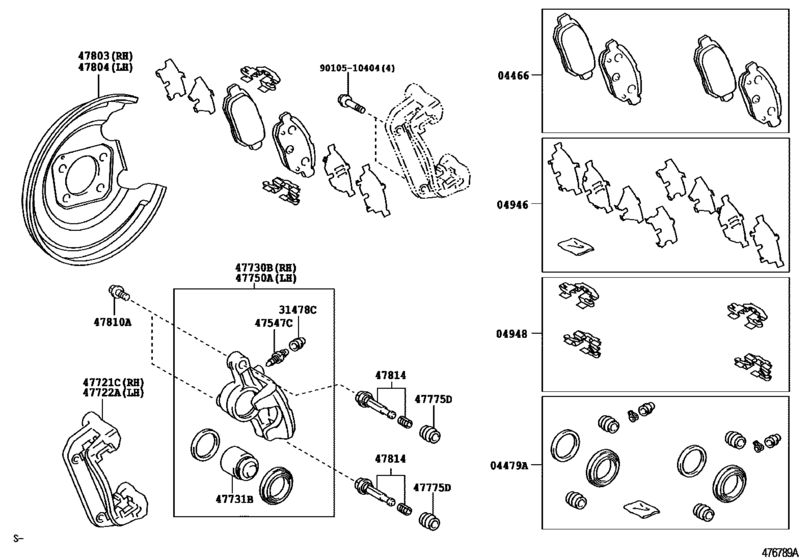

Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110) 20

#	OEM	Part name
4466	04466-12130	Pad Kit, Disc Brake, Rear
4466	04466-12150	Pad Kit, Disc Brake, Rear
4466	04466-12140	Pad Kit, Disc Brake, Rear
4479	04479-52170	Cylinder Kit, Disc Brake, Rear
4946	04946-12040	Shim Kit, Anti Squeal(For Rear Disc Brake)
4946	04946-12110	Shim Kit, Anti Squeal(For Rear Disc Brake)
4948	04948-12060	Fitting Kit, Disc Brake, Rear
4948	04948-52040	Fitting Kit, Disc Brake, Rear
31478	31478-52010	Cap, Bleeder Plug(For Rear Disc Brake)
47547	47847-52050	Plug, Bleeder(For Rear Disc Brake)
47721	47821-12151	Mounting, Rear Disc Brake Cylinder, Rh
47730	47830-52161	Cylinder Assy, Rear Disc Brake, Rh - DISC BRAKE, REAR RH
47731	47831-52090	Piston, Rear Disc Brake
47750	47850-52161	Cylinder Assy, Disc Brake, Rear Lh
47775	47875-12150	Boot, Bush Dust(For Rear Disc Brake)
47803	47803-52030	Cover Sub-Assy, Disc Brake Dust, Rear Rh
47804	47804-52030	Cover Sub-Assy, Disc Brake Dust, Rear Lh
47810	90015-AA102	Bolt(For Rear Disc Brake Cylinder Mouting)
47814	47835-12150	Pin, Cylinder Slide, No.1(For Rear Disc Brake)
9010510404	90105-10404	Bolt (For Rear Axle Carrier Rh)

OEM	Part name	Category
04466-12130	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
04466-12140	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
04466-12150	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
04479-52170	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
04946-12040	Shim Kit, Anti Squeal(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
04946-12110	Shim Kit, Anti Squeal(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
04948-12060	Fitting Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
04948-52040	Fitting Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
31478-52010	Cap, Bleeder Plug(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
47803-52030	Cover Sub-Assy, Disc Brake Dust, Rear Rh	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
47804-52030	Cover Sub-Assy, Disc Brake Dust, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
47821-12151	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
47830-52161	Cylinder Assy, Rear Disc Brake, Rh - DISC BRAKE, REAR RH	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
47831-52090	Piston, Rear Disc Brake	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
47835-12150	Pin, Cylinder Slide, No.1(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
47847-52050	Plug, Bleeder(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
47850-52161	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
47875-12150	Boot, Bush Dust(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
90015-AA102	Bolt(For Rear Disc Brake Cylinder Mouting)	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
90105-10404	Bolt (For Rear Axle Carrier Rh)	Rear Disc Brake Caliper & Dust Cover ([01.2009 - ] (0901- )NLP110,NSP110)
