Search › Model › NSP110

NSP110

Toyota URBAN-CRUISER · 2009 · 3,620 parts · 180 categories
NSP110 ×

← Back to categories

3,620 items

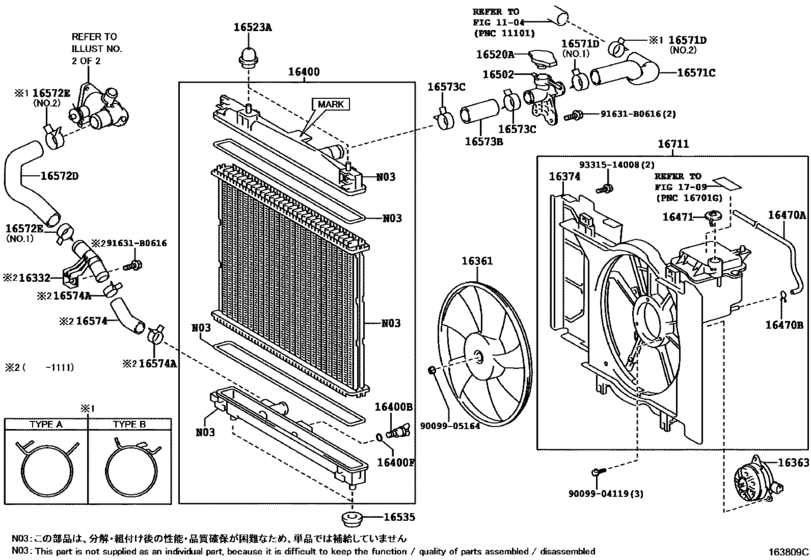

Radiator & Water Outlet ([01.2009 - 05.2012] (0901-1205)1NRFE) 31
#OEMPart name
16332 16332-47010 Pipe, Water Outlet, No.1
16361 16361-23070 Fan
16363 16363-28200 Motor, Cooling Fan
16374 16366-40010 Insulator, Cooling Fan Motor
16400 16400-47080 Radiator Assy
16400 16400-47081 Radiator Assy
16400 16417-21280 Cock Sub-Assy, Radiator Drain
16400 16492-21050 Ring, O(For Oil Cooler Drain Cock)
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16471 16471-23030 Cap Sub-Assy, Reserve Tank
16502 16502-23010 Filler Sub-Assy, Water
16520 16401-31480 Cap Sub-Assy, Radiator
16520 16401-31520 Radiator Cap Sub-Assy (108kPa)
16520 16401-36020 Cap Sub-Assy, Radiator
16520 16401-62100 Cap Sub-Assy, Radiator
16523 16523-21030 Cushion, Radiator Support
16535 90480-22025 Cushion, Intercooler Support
16571 16571-47070 Hose, Radiator, No.1
16571 90467-33006 Clamp Or Clip, Hose(For Radiator Inlet)
16571 96136-43901 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-47060 Hose, Radiator, No.2
16572 16572-47070 Hose, Radiator, No.2
16573 16573-23010 Hose, Radiator, No.3
16574 16574-47010 Hose, Radiator, No.4
16574 96136-43601 Clip Or Clamp(For Ventilation Hose) - RADIATOR HOSE, NO.1
16711 16711-23090 Shroud, Fan
91631 91631-B0616 BOLT WWASHER
9009904119 90099-04119 BOLT WASHER HEAD
9009905164 90099-05164 Nut
9331514008 93315-14008 New Genuine Part
Source
Public OEM parts-catalog data
Variants
2 / 4
Category
180
Collected
2026-08-04
