NSP110

Toyota URBAN-CRUISER · 2009 · 3,620 parts · 180 categories

← Back to categories

3,620 items

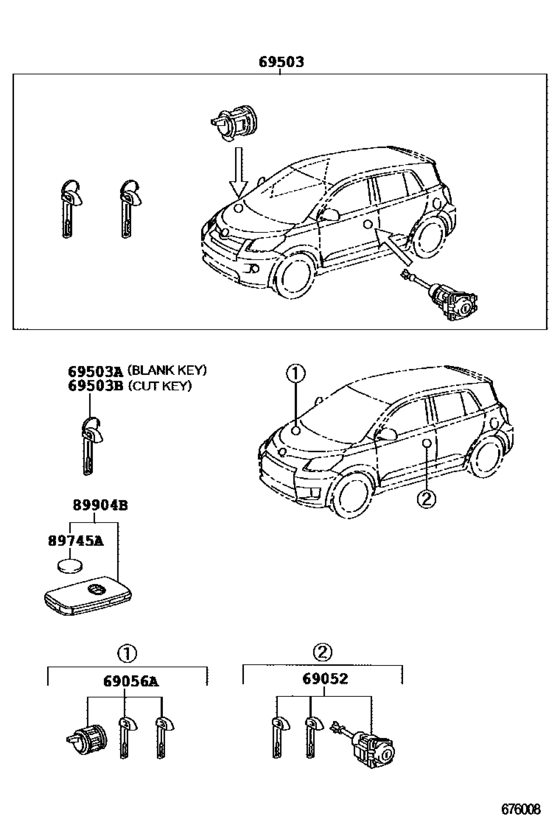

Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N) 16

#	OEM	Part name
69052	69052-42150	Cylinder & Key Set, Door Lock, Lh
69052	69052-52330	Cylinder & Key Set, Door Lock, Lh
69056	69056-33200	Cylinder & Key Set, Glove Compartment Lock
69056	69056-42100	Cylinder & Key Set, Glove Compartment Lock
69503	69005-42500	Cylinder Set, Lock
69503	69005-52G50	Cylinder Set, Lock
69503	69005-52G51	Cylinder Set, Lock
69503	69515-52120	Key, Blank
69503	69515-52110	Key, Cut - for blank key →
89745	89745-52030	Battery, Transmitter (CR1632)
89745	89745-71010	Battery, Transmitter
89904	89904-12170	Transmitter Sub-Assy, Electrical Key
89904	89904-52050	Transmitter Sub-Assy, Electrical Key
89904	89904-52051	Transmitter Sub-Assy, Electrical Key
89904	89904-52071	Transmitter Sub-Assy, Electrical Key
89904	89904-52072	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-42500	Cylinder Set, Lock	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
69005-52G50	Cylinder Set, Lock	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
69005-52G51	Cylinder Set, Lock	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
69052-42150	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
69052-52330	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
69056-33200	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
69056-42100	Cylinder & Key Set, Glove Compartment Lock	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
69515-52110	Key, Cut - for blank key →	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
69515-52120	Key, Blank	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
89745-52030	Battery, Transmitter (CR1632)	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
89745-71010	Battery, Transmitter	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
89904-12170	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
89904-52050	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
89904-52051	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
89904-52071	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)
89904-52072	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2009 - ] W(STARTING SYSTEM-PUSH BUTTON) (0901- )LHD..N)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 180
Collected: 2026-08-04
