Search › Model › NSP110

NSP110

Toyota URBAN-CRUISER · 2009 · 3,620 parts · 180 categories

3,620 items

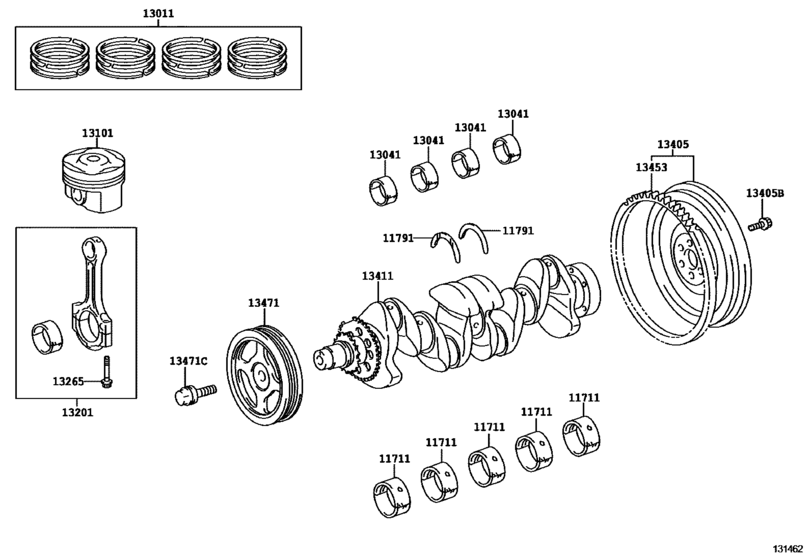

Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE) 42

#	OEM	Part name
11711	11701-47010-02	Bearing, Crankshaft
11711	11701-47012-02	Bearing, Crankshaft
11711	11701-47013-02	Bearing, Crankshaft
11711	11701-47010-03	Bearing, Crankshaft
11711	11701-47012-03	Bearing, Crankshaft
11711	11701-47010-04	Bearing, Crankshaft
11711	11701-47012-04	Bearing, Crankshaft
11711	11701-47010-05	Bearing, Crankshaft
11711	11701-47012-05	Bearing, Crankshaft
11711	11701-47011-02	Bearing, Crankshaft
11711	11701-47011-03	Bearing, Crankshaft
11711	11701-47011-04	Bearing, Crankshaft
11711	11701-47011-05	Bearing, Crankshaft
11791	11791-47010	Washer, Crankshaft Thrust, Upper
13011	13011-47030	Ring Set, Piston
13011	13011-47031	Ring Set, Piston
13011	13011-47032	Ring Set, Piston
13011	13011-47033	Ring Set, Piston
13041	13041-47010-01	Bearing, Connecting Rod
13041	13041-47011-01	Bearing, Connecting Rod
13041	13041-47012-01	Bearing, Connecting Rod
13041	13041-47010-02	Bearing, Connecting Rod
13041	13041-47011-02	Bearing, Connecting Rod
13041	13041-47012-02	Bearing, Connecting Rod
13041	13041-47010-03	Bearing, Connecting Rod
13041	13041-47011-03	Bearing, Connecting Rod
13101	13101-47020	Piston Sub-Assy, W/pin
13101	13101-47021	Piston Sub-Assy, W/pin (STD)
13101	13101-47022	Piston Sub-Assy, W/pin
13101	13101-47110	Piston Sub-Assy, W/pin
13201	13201-49085	Rod Sub-Assy, Connecting
13201	13201-49086	Rod Sub-Assy, Connecting
13201	13201-49087	Rod Sub-Assy, Connecting
13265	13265-21020	Bolt, Connecting Rod
13405	13405-47020	Flywheel Sub-Assy
13405	13405-47030	Flywheel Sub-Assy
13405	90913-01029	Bolt, Flywheel Setting
13411	13401-47010	Crankshaft
13411	13401-47011	Crankshaft
13453	13453-10010	Gear, Flywheel Ring
13471	13470-47050	Pulley, Crankshaft
13471	90119-12345	Bolt(For Crankshaft Pulley Set)

OEM	Part name	Category
11701-47010-02	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11701-47010-03	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11701-47010-04	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11701-47010-05	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11701-47011-02	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11701-47011-03	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11701-47011-04	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11701-47011-05	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11701-47012-02	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11701-47012-03	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11701-47012-04	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11701-47012-05	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11701-47013-02	Bearing, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
11791-47010	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13011-47030	Ring Set, Piston	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13011-47031	Ring Set, Piston	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13011-47032	Ring Set, Piston	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13011-47033	Ring Set, Piston	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13041-47010-01	Bearing, Connecting Rod	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13041-47010-02	Bearing, Connecting Rod	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13041-47010-03	Bearing, Connecting Rod	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13041-47011-01	Bearing, Connecting Rod	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13041-47011-02	Bearing, Connecting Rod	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13041-47011-03	Bearing, Connecting Rod	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13041-47012-01	Bearing, Connecting Rod	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13041-47012-02	Bearing, Connecting Rod	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13101-47020	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13101-47021	Piston Sub-Assy, W/pin (STD)	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13101-47022	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13101-47110	Piston Sub-Assy, W/pin	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13201-49085	Rod Sub-Assy, Connecting	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13201-49086	Rod Sub-Assy, Connecting	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13201-49087	Rod Sub-Assy, Connecting	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13265-21020	Bolt, Connecting Rod	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13401-47010	Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13401-47011	Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13405-47020	Flywheel Sub-Assy	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13405-47030	Flywheel Sub-Assy	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13453-10010	Gear, Flywheel Ring	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
13470-47050	Pulley, Crankshaft	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
90119-12345	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)
90913-01029	Bolt, Flywheel Setting	Crankshaft & Piston ([01.2009 - ] (0901- )1NRFE)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 180
Collected: 2026-08-04
