Search › Model › NSP110

NSP110

Toyota URBAN-CRUISER · 2009 · 3,620 parts · 180 categories

3,620 items

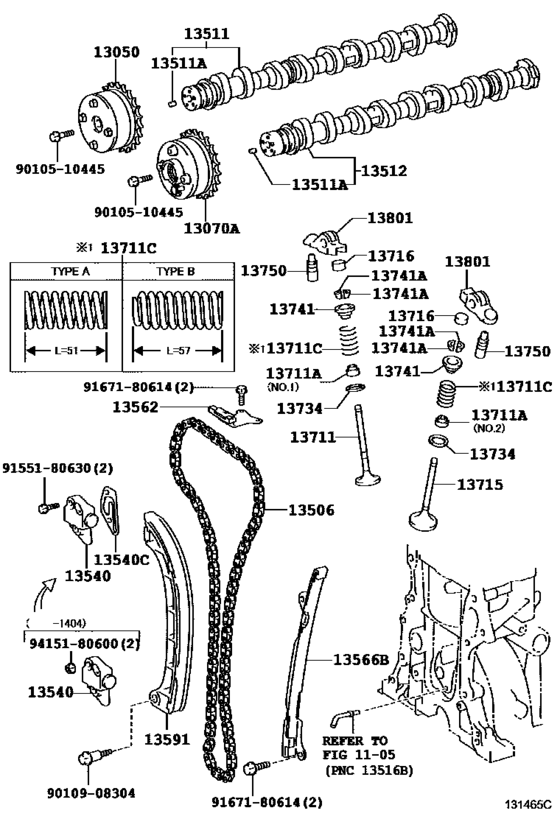

Camshaft & Valve ([01.2009 - ] (0901- )1NRFE) 40

#	OEM	Part name
13050	13050-47010	Gear Assy, Camshaft Timing
13050	13050-47011	Gear Assy, Camshaft Timing
13070	13070-47010	Gear Assy, Camshaft Timing Exhaust
13506	13506-47010	Chain Sub-Assy
13506	13506-47030	Chain Sub-Assy
13511	13501-47020	Camshaft
13511	90250-05027	Pin, Straight
13512	13502-47010	Camshaft, No.2
13540	13540-47010	Tensioner Assy, Chain, No.1
13540	13540-47011	Tensioner Assy, Chain, No.1
13540	13552-47010	Gasket(For Chain Tensioner)
13562	13562-47010	Damper, Chain Vibration, No.2
13562	13562-47020	Damper, Chain Vibration, No.2
13566	13566-47010	Guide, Timing Chain
13566	13566-47030	Guide, Timing Chain
13591	13591-47010	Arm, Timing Chain Tension
13591	13591-47030	Arm, Timing Chain Tension
13591	13591-47050	Arm, Timing Chain Tension
13711	13711-47010	Valve, Intake
13711	90913-02101	Seal Or Ring, O(For Valve Stem Oil) - Intake side
13711	90913-02112	Seal Or Ring, O(For Valve Stem Oil)
13711	90501-29062	Spring, Compression(For Outer)
13711	90501-29066	Spring, Compression(For Outer)
13711	90501-32062	Spring, Compression(For Outer)
13715	13715-47010	Valve, Exhaust
13716	13716-75020	Cap, Valve Stem
13734	13734-62020	Washer, Plate(For Valve Spring Seat)
13741	13741-20021	Retainer, Valve Spring
13741	13741-36010	Retainer, Valve Spring
13741	90913-03028	Lock, Valve Spring Retainer
13750	13750-21010	Adjuster Assy, Valve Lash
13750	13750-75020	Adjuster Assy, Valve Lash
13801	13801-23011	Arm Sub-Assy, Valve Rocker, No.1
13801	13801-36020	Arm Sub-Assy, Valve Rocker, No.1
13801	13801-47010	Arm Sub-Assy, Valve Rocker, No.1
9010510445	90105-10445	BOLT, WASHER BASED
9010908304	90109-08304	BOLT
9155180630	91551-80630	Bolt(For Cylinder Head Cover)
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
13050-47010	Gear Assy, Camshaft Timing	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13050-47011	Gear Assy, Camshaft Timing	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13070-47010	Gear Assy, Camshaft Timing Exhaust	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13501-47020	Camshaft	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13502-47010	Camshaft, No.2	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13506-47010	Chain Sub-Assy	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13506-47030	Chain Sub-Assy	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13540-47010	Tensioner Assy, Chain, No.1	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13540-47011	Tensioner Assy, Chain, No.1	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13552-47010	Gasket(For Chain Tensioner)	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13562-47010	Damper, Chain Vibration, No.2	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13562-47020	Damper, Chain Vibration, No.2	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13566-47010	Guide, Timing Chain	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13566-47030	Guide, Timing Chain	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13591-47010	Arm, Timing Chain Tension	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13591-47030	Arm, Timing Chain Tension	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13591-47050	Arm, Timing Chain Tension	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13711-47010	Valve, Intake	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13715-47010	Valve, Exhaust	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13716-75020	Cap, Valve Stem	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13734-62020	Washer, Plate(For Valve Spring Seat)	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13741-20021	Retainer, Valve Spring	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13741-36010	Retainer, Valve Spring	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13750-21010	Adjuster Assy, Valve Lash	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13750-75020	Adjuster Assy, Valve Lash	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13801-23011	Arm Sub-Assy, Valve Rocker, No.1	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13801-36020	Arm Sub-Assy, Valve Rocker, No.1	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
13801-47010	Arm Sub-Assy, Valve Rocker, No.1	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
90105-10445	BOLT, WASHER BASED	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
90109-08304	BOLT	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
90250-05027	Pin, Straight	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
90501-29062	Spring, Compression(For Outer)	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
90501-29066	Spring, Compression(For Outer)	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
90501-32062	Spring, Compression(For Outer)	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
90913-02101	Seal Or Ring, O(For Valve Stem Oil) - Intake side	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
90913-02112	Seal Or Ring, O(For Valve Stem Oil)	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
90913-03028	Lock, Valve Spring Retainer	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
91551-80630	Bolt(For Cylinder Head Cover)	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Camshaft & Valve ([01.2009 - ] (0901- )1NRFE)
