Search › Model › NRE180
NRE180

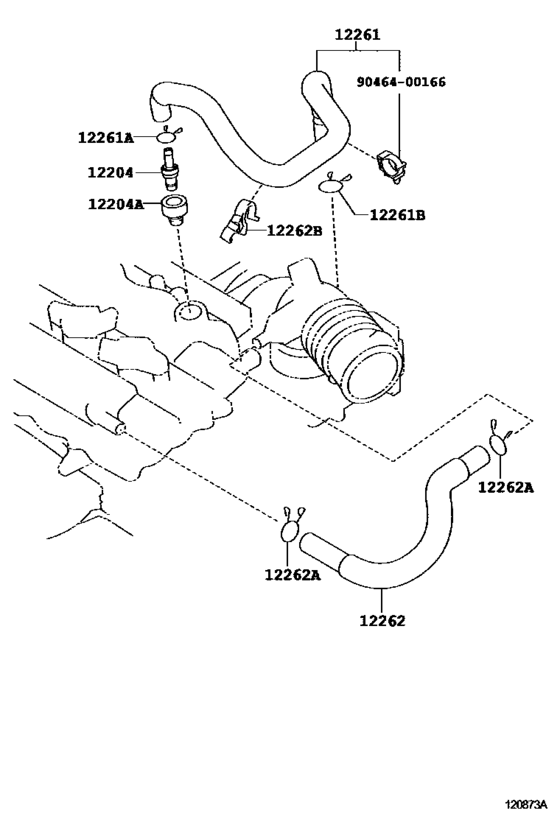

Ventilation Hose ([10.2012 - ] (1210- )1NRFE) 11
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-47010 | Valve Sub-Assy, Ventilation |
| 12204 | 12204-47060 | Valve Sub-Assy, Ventilation |
| 12204 | 11249-47020 | Grommet(For Ventilation System) |
| 12204 | 90480-18016 | Grommet(For Ventilation System) |
| 12261 | 12261-47010 | Hose, Ventilation |
| 12261 | 90467-16035 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90467-22010 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-0Y010 | Hose, Ventilation, No.2 |
| 12262 | 90467-21004 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 16581-47020 | Clamp(For Ventilation Hose) |
| 9046400166 | 90464-00166 | Clamp, Automatic Transmission Oil Cooler Tube, No.7 |
| OEM | Part name | Category |
|---|---|---|
| 11249-47020 | Grommet(For Ventilation System) | Ventilation Hose ([10.2012 - ] (1210- )1NRFE) |
| 12204-47010 | Valve Sub-Assy, Ventilation | Ventilation Hose ([10.2012 - ] (1210- )1NRFE) |
| 12204-47060 | Valve Sub-Assy, Ventilation | Ventilation Hose ([10.2012 - ] (1210- )1NRFE) |
| 12261-47010 | Hose, Ventilation | Ventilation Hose ([10.2012 - ] (1210- )1NRFE) |
| 12262-0Y010 | Hose, Ventilation, No.2 | Ventilation Hose ([10.2012 - ] (1210- )1NRFE) |
| 16581-47020 | Clamp(For Ventilation Hose) | Ventilation Hose ([10.2012 - ] (1210- )1NRFE) |
| 90464-00166 | Clamp, Automatic Transmission Oil Cooler Tube, No.7 | Ventilation Hose ([10.2012 - ] (1210- )1NRFE) |
| 90467-16035 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([10.2012 - ] (1210- )1NRFE) |
| 90467-21004 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([10.2012 - ] (1210- )1NRFE) |
| 90467-22010 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([10.2012 - ] (1210- )1NRFE) |
| 90480-18016 | Grommet(For Ventilation System) | Ventilation Hose ([10.2012 - ] (1210- )1NRFE) |
