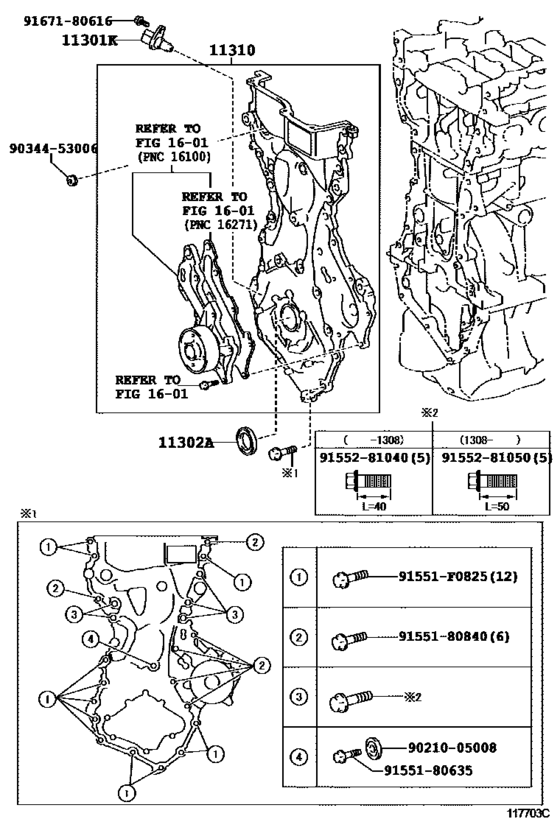

| 11310-47040 |
Cover Sub-Assy, Timing Chain Or Belt |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 11310-47041 |
Cover Sub-Assy, Timing Chain Or Belt |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 11310-47042 |
Cover Sub-Assy, Timing Chain Or Belt |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 90210-05008 |
Washer, Seal(For Cylinder Head Cover) |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 90311-25032 |
Seal, Oil(For Timing Chain Or Belt Cover) |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 90344-53006 |
Plug, Tight, No.1(For Timing Gear Cover) |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 90919-05073 |
Sensor, Camshaft Position - CRANK POSITION |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 90919-05079 |
Sensor, Crank Position |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 91551-80635 |
Bolt(For Head To Camshaft Bearing Cap) |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 91551-80840 |
Bolt(For Head To Camshaft Bearing Cap) |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 91551-F0825 |
BOLT FLANGE |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 91552-81040 |
Bolt(For Alternator) |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 91552-81050 |
Bolt, No.2(For Alternator) |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 91671-10825 |
BOLT, FLANGE |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
| 91671-80616 |
BOLT FLANGE |
Timing Gear Cover & Rear End Plate ([10.2012 - ] (1210- )1NRFE) |
