NRE180

Toyota AURIS-COROLLA · 2012 · 3,627 parts · 208 categories
NRE180 ×

← Back to categories

3,627 items

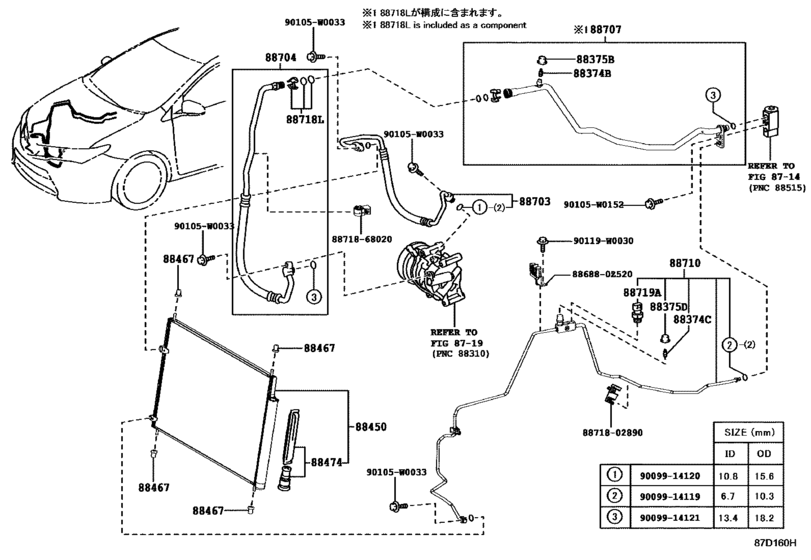

Heating & Air Conditioning - Cooler Piping ([10.2012 - 05.2015] (1210-1505)NRE180) 32
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88375 88375-30310 Cap, Service Valve, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30320 Cap, Service Valve, No.1
88450 88450-02520 Condenser Assy, W/receiver
88450 88450-05220 Condenser Assy, W/receiver
88450 88450-12280 Condenser Assy, W/receiver
88467 16716-28010 Cushion, Fan Shroud
88474 88474-12010 Dryer, Cooler
88474 88474-12030 Dryer, Cooler
88703 88703-02790 Hose Sub-Assy, Discharge
88703 88703-02B60 Hose Sub-Assy, Discharge
88704 88704-02B90 Hose Sub-Assy, Suction
88704 88704-0Z140 Hose Sub-Assy, Suction
88707 88707-02200 Pipe Sub-Assy, Suction
88707 88707-02380 Pipe Sub-Assy, Suction
88710 88710-02C00 Tube Assy, Air Conditioner
88710 88710-0Z300 Tube Assy, Air Conditioner
88710 88710-0Z310 Tube Assy, Air Conditioner
88718 88718-52280 Clamp, Piping
88719 88719-33020 Sensor, Airconditioner Pressure
90105 90105-W0033 New Genuine Part
90105 90105-W0152 New Genuine Part
90119 90119-W0030 New Genuine Part
886880 88688-0Z520 Bracket, Cooler Diaphragm
8871802890 88718-02890 Pipe, Cooler Refrigerant Suction, No.2
8871868020 88718-68020 Clamp, Piping
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
