NRE180

Toyota AURIS-COROLLA · 2012 · 3,627 parts · 208 categories

3,627 items

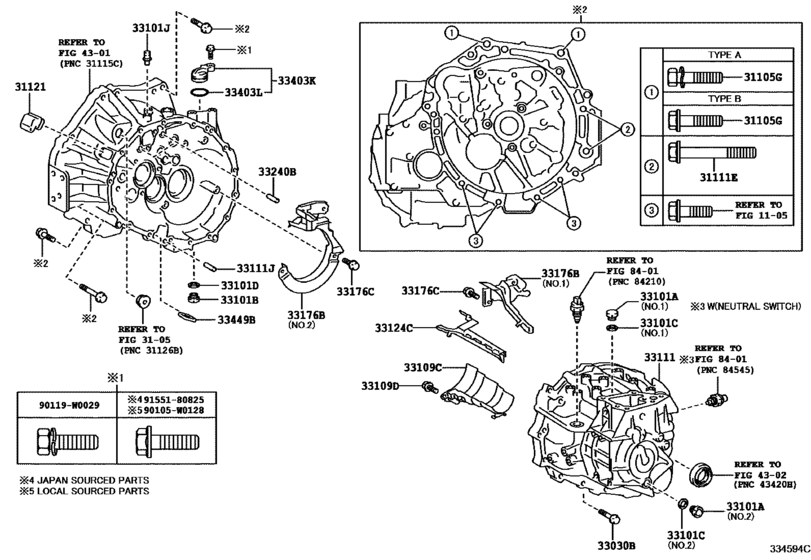

Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180) 30

#	OEM	Part name
31105	90105-W0046	Bolt(For Transaxle & Engine Setting)
31105	90119-W0097	Bolt(For Transaxle Case & Engine Setting)
31105	91552-81245	Bolt(For Transaxle & Engine Setting)
31111	90105-W0179	Bolt(For Transaxle Case & Engine Setting)
31111	91552-81280	Bolt(For Transaxle Case & Engine Setting)
31121	31121-05010	Cover, Clutch Housing, No.1
33030	90105-W0209	Bolt(For Transaxle Case & Transmission Case Setting)
33030	91551-10840	Bolt(For Transaxle Case & Transmission Case Setting)
33101	90341-14032	Plug, W/head Taper Screw, No.1
33101	90341-18033	Plug(For Manual Transmission Filler)
33101	90341-18023	Plug, W/head Straight Screw, No.1
33101	12157-10010	Gasket (For Drain Plug)
33101	90430-14003	Gasket(For Manual Transmission Filler Plug)
33101	90930-03133	Plug, Breather
33109	33109-0D010	Separator Sub-Assy, Manual Transmission Oil
33109	33109-0D011	Separator Sub-Assy, Manual Transmission Oil
33109	90105-W0035	Bolt(For Manual Transmission Oil Separator)
33109	91551-80816	Bolt(For Manual Transmission Oil Separator)
33111	33111-02050	Case, Manual Transmission
33111	33111-05041	Case, Manual Transmission
33111	90250-08054	Pin, Straight
33124	33124-0D050	Pipe, Oil Receiver, No.1(Mtm)
33176	33176-0D020	Separator, Transmission Oil(Mtm)
33176	33176-0D030	Separator, Transmission Oil(Mtm)
33403	33403-35230	Cover Sub-Assy, Speedometer Driven Hole
33403	96711-24030	Ring,o (For Speedometer Driven Hole Cover)
33449	33449-20010	Magnet, Transmission
90105	90105-W0128	New Genuine Part
90119	90119-W0029	New Genuine Part
9155180825	91551-80825	Bolt(For Cylinder Head Set Sub)

OEM	Part name	Category
12157-10010	Gasket (For Drain Plug)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
31121-05010	Cover, Clutch Housing, No.1	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
33109-0D010	Separator Sub-Assy, Manual Transmission Oil	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
33109-0D011	Separator Sub-Assy, Manual Transmission Oil	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
33111-02050	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
33111-05041	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
33124-0D050	Pipe, Oil Receiver, No.1(Mtm)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
33176-0D020	Separator, Transmission Oil(Mtm)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
33176-0D030	Separator, Transmission Oil(Mtm)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
33403-35230	Cover Sub-Assy, Speedometer Driven Hole	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
33449-20010	Magnet, Transmission	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90105-W0035	Bolt(For Manual Transmission Oil Separator)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90105-W0046	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90105-W0128	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90105-W0179	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90105-W0209	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90119-W0029	New Genuine Part	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90119-W0097	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90250-08054	Pin, Straight	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90341-14032	Plug, W/head Taper Screw, No.1	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90341-18023	Plug, W/head Straight Screw, No.1	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90341-18033	Plug(For Manual Transmission Filler)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90430-14003	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
90930-03133	Plug, Breather	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
91551-10840	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
91551-80816	Bolt(For Manual Transmission Oil Separator)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
91551-80825	Bolt(For Cylinder Head Set Sub)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
91552-81245	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
91552-81280	Bolt(For Transaxle Case & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
96711-24030	Ring,o (For Speedometer Driven Hole Cover)	Clutch Housing & Transmission Case (Mtm) ([10.2012 - ] EC61 (1210- )NRE180)
