NRE161

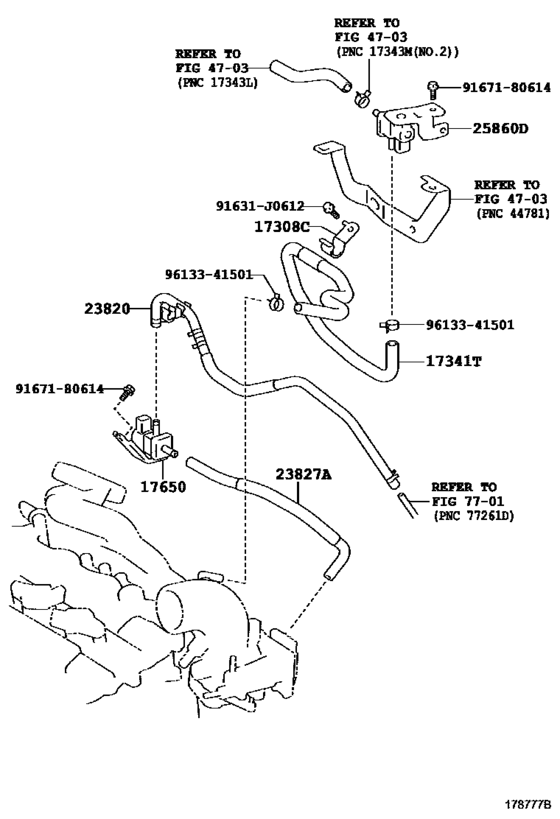

Vacuum Piping ([03.2015 - ] (1503- )2NRFKE) 9
| # | OEM | Part name |
|---|---|---|
| 17308 | 44783-52070 | Clamp(For Vacuum Hose) |
| 17341 | 44726-12030 | Hose, Air, No.1 |
| 17650 | 25860-47030 | Valve Assy, Vacuum Switching |
| 23820 | 23820-47040 | Hose Assy, Fuel Vapor Feed |
| 23827 | 23827-47090 | Hose, Fuel Vapor Feed, No.2 |
| 25860 | 25860-47040 | Valve Assy, Vacuum Switching, No.1 |
| 91631 | 91631-J0612 | BRACKET |
| 9167180614 | 91671-80614 | Bolt (For Transmission Control Cable Bracket) |
| 9613341501 | 96133-41501 | Clip(For Air Hose No.3) |
| OEM | Part name | Category |
|---|---|---|
| 23820-47040 | Hose Assy, Fuel Vapor Feed | Vacuum Piping ([03.2015 - ] (1503- )2NRFKE) |
| 23827-47090 | Hose, Fuel Vapor Feed, No.2 | Vacuum Piping ([03.2015 - ] (1503- )2NRFKE) |
| 25860-47030 | Valve Assy, Vacuum Switching | Vacuum Piping ([03.2015 - ] (1503- )2NRFKE) |
| 25860-47040 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([03.2015 - ] (1503- )2NRFKE) |
| 44726-12030 | Hose, Air, No.1 | Vacuum Piping ([03.2015 - ] (1503- )2NRFKE) |
| 44783-52070 | Clamp(For Vacuum Hose) | Vacuum Piping ([03.2015 - ] (1503- )2NRFKE) |
| 91631-J0612 | BRACKET | Vacuum Piping ([03.2015 - ] (1503- )2NRFKE) |
| 91671-80614 | Bolt (For Transmission Control Cable Bracket) | Vacuum Piping ([03.2015 - ] (1503- )2NRFKE) |
| 96133-41501 | Clip(For Air Hose No.3) | Vacuum Piping ([03.2015 - ] (1503- )2NRFKE) |
