Search › Model › NRE161

NRE161

Toyota COROLLA-AXIO-FIELDER · 2015 · 2,382 parts · 182 categories

← Back to categories

2,382 items

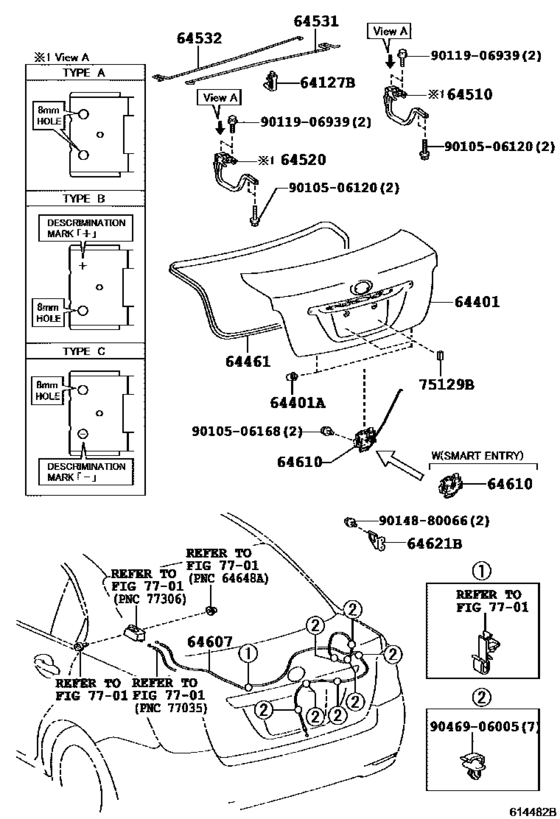

Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D) 19

#	OEM	Part name
64127	64127-16070	Support, Luggage Compartment Door Torsion Bar
64401	64401-12D40	Panel Sub-Assy, Luggage Compartment Door
64401	64401-12D41	Panel Sub-Assy, Luggage Compartment Door
64401	90541-09116	Cushion(For Luggage Compartment Door Panel)
64461	64461-12590	Weatherstrip, Luggage Compartment Door
64510	64510-12271	Hinge Assy, Luggage Compartment Door, Rh
64510	64510-12281	Hinge Assy, Luggage Compartment Door, Rh
64510	64510-12291	Hinge Assy, Luggage Compartment Door, Rh
64531	64531-12780	Bar, Luggage Door Hinge Torsion, Rh
64532	64532-12870	Bar, Luggage Door Hinge Torsion, Lh
64607	64607-12A10	Cable Sub-Assy, Luggage Door Lock Control
64610	64610-12452	Lock Assy, Luggage Compartment Door
64621	64621-33030	Striker, Luggage Compartment Door Lock
75129	75129-30010	Cushion, Rear License Plate
9010506120	90105-06120	BOLT WASHER BASED
9010506168	90105-06168	BOLT WASHER BASED
9011906939	90119-06939	Bolt, Hood Lock
9014880066	90148-80066	SCREW HEXALOBULAR
9046906005	90469-06005	Clamp(For Hood Lock Control Cable)

OEM	Part name	Category
64127-16070	Support, Luggage Compartment Door Torsion Bar	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
64401-12D40	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
64401-12D41	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
64461-12590	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
64510-12271	Hinge Assy, Luggage Compartment Door, Rh	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
64510-12281	Hinge Assy, Luggage Compartment Door, Rh	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
64510-12291	Hinge Assy, Luggage Compartment Door, Rh	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
64531-12780	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
64532-12870	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
64607-12A10	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
64610-12452	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
64621-33030	Striker, Luggage Compartment Door Lock	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
75129-30010	Cushion, Rear License Plate	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
90105-06120	BOLT WASHER BASED	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
90105-06168	BOLT WASHER BASED	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
90119-06939	Bolt, Hood Lock	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
90148-80066	SCREW HEXALOBULAR	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
90469-06005	Clamp(For Hood Lock Control Cable)	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)
90541-09116	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([12.2012 - ] (1212- )4D)

Source: Public OEM parts-catalog data
Variants: 2 / 7
Category: 182
Collected: 2026-08-02
