NRE161

Toyota COROLLA-AXIO-FIELDER · 2015 · 2,382 parts · 182 categories

← Back to categories

2,382 items

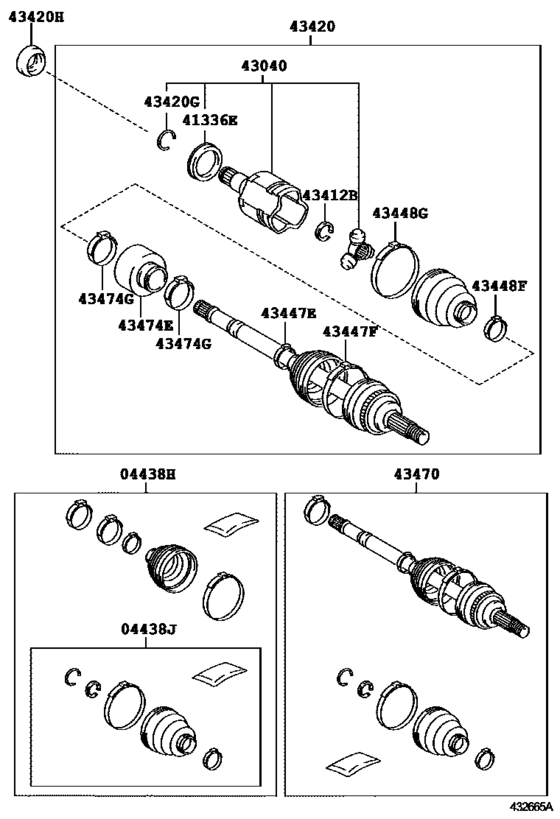

Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161) 18

#	OEM	Part name
4438	04428-52850	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04437-52191	Boot Kit, Front Drive Shaft Inboard Joint
41336	41336-12010	Cover, Dust(For Differential Side Gear Shaft)
43040	43403-10011	Joint Assy, Front Drive Inboard
43040	43403-0W031	JOINT SET, FR AXLE
43412	90520-22001	Ring, Shaft Snap (For Front Drive Inner Shaft Inner)
43420	43420-52261	Shaft Assy, Front Drive, Lh
43420	43420-52262	Shaft Assy, Front Drive, Lh
43420	90521-26004	Ring, Hole Snap (For Front Differential Side Gear Shaft)
43420	90311-34043	Oil Seal, Front Drive Shaft, Lh
43420	90311-34057	SEAL TYPE T OIL
43447	42345-52260	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-52250	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43448	90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448	90949-01146	Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)
43470	43470-59775	Shaft Assy, Front Drive Outboard Joint, Lh
43474	43474-12190	Damper, Front Drive Shaft, Lh
43474	42345-14010	Clamp, Rear Drive Shaft Boot

OEM	Part name	Category
04428-52850	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
04437-52191	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
41336-12010	Cover, Dust(For Differential Side Gear Shaft)	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
42345-52250	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
42345-52260	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
43403-0W031	JOINT SET, FR AXLE	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
43403-10011	Joint Assy, Front Drive Inboard	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
43420-52261	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
43420-52262	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
43470-59775	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
43474-12190	Damper, Front Drive Shaft, Lh	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
90311-34043	Oil Seal, Front Drive Shaft, Lh	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
90311-34057	SEAL TYPE T OIL	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
90520-22001	Ring, Shaft Snap (For Front Drive Inner Shaft Inner)	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
90521-26004	Ring, Hole Snap (For Front Differential Side Gear Shaft)	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
90949-01146	Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)	Front Drive Shaft ([03.2015 - ] LH (1206-1503)CVT ; (1503- )NRE161)
