Search › Model › NRE161

NRE161

Toyota COROLLA-AXIO-FIELDER · 2015 · 2,382 parts · 182 categories

2,382 items

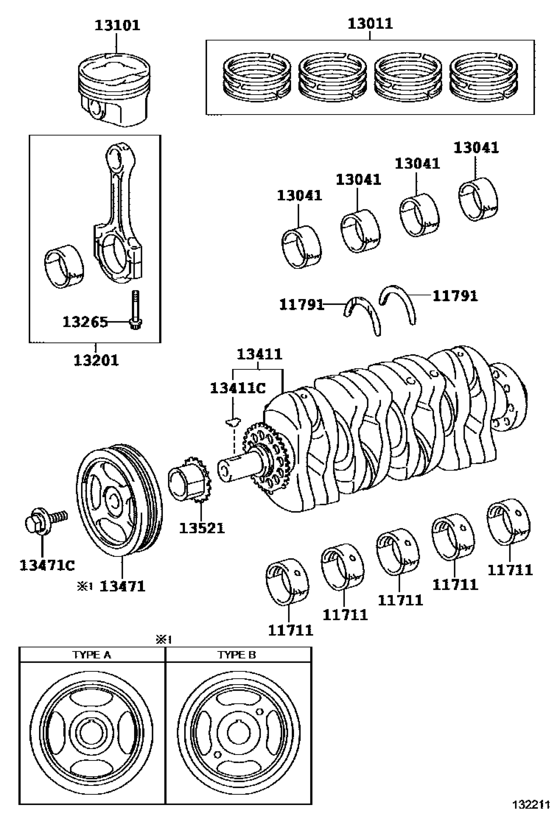

Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE) 28

#	OEM	Part name
11711	11701-47031-02	Bearing, Crankshaft
11711	11701-47032-02	Bearing, Crankshaft
11711	11701-47031-03	Bearing, Crankshaft
11711	11701-47031-04	Bearing, Crankshaft
11711	11701-47031-05	Bearing, Crankshaft
11711	11701-47032-05	Bearing, Crankshaft
11711	11701-47032-03	Bearing, Crankshaft
11711	11701-47032-04	Bearing, Crankshaft
11791	11791-47030	Washer, Crankshaft Thrust, Upper
11791	11791-47031	Washer, Crankshaft Thrust, Upper
13011	13011-47120	Ring Set, Piston
13041	13041-47011-01	Bearing, Connecting Rod
13041	13041-47012-01	Bearing, Connecting Rod
13041	13041-47011-02	Bearing, Connecting Rod
13041	13041-47011-03	Bearing, Connecting Rod
13041	13041-47012-02	Bearing, Connecting Rod
13041	13041-47012-03	Bearing, Connecting Rod
13101	13101-47140	Piston Sub-Assy, W/pin
13201	13201-49115	Rod Sub-Assy, Connecting
13201	13201-49116	Rod Sub-Assy, Connecting
13265	13265-21020	Bolt, Connecting Rod
13411	13401-47090	Crankshaft
13411	90280-04001	Pin, Straight(For Crankshaft)
13471	13470-47080	Pulley, Crankshaft
13471	13470-47090	Pulley, Crankshaft
13471	90119-14106	Bolt(For Crankshaft Pulley Set)
13471	90119-14175	Bolt(For Crankshaft Pulley Set)
13521	13521-47020	Gear Or Sprocket, Crankshaft Timing

OEM	Part name	Category
11701-47031-02	Bearing, Crankshaft	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
11701-47031-03	Bearing, Crankshaft	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
11701-47031-04	Bearing, Crankshaft	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
11701-47031-05	Bearing, Crankshaft	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
11701-47032-02	Bearing, Crankshaft	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
11701-47032-03	Bearing, Crankshaft	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
11701-47032-04	Bearing, Crankshaft	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
11701-47032-05	Bearing, Crankshaft	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
11791-47030	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
11791-47031	Washer, Crankshaft Thrust, Upper	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13011-47120	Ring Set, Piston	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13041-47011-01	Bearing, Connecting Rod	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13041-47011-02	Bearing, Connecting Rod	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13041-47011-03	Bearing, Connecting Rod	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13041-47012-01	Bearing, Connecting Rod	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13041-47012-02	Bearing, Connecting Rod	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13041-47012-03	Bearing, Connecting Rod	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13101-47140	Piston Sub-Assy, W/pin	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13201-49115	Rod Sub-Assy, Connecting	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13201-49116	Rod Sub-Assy, Connecting	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13265-21020	Bolt, Connecting Rod	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13401-47090	Crankshaft	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13470-47080	Pulley, Crankshaft	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13470-47090	Pulley, Crankshaft	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
13521-47020	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
90119-14106	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
90119-14175	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
90280-04001	Pin, Straight(For Crankshaft)	Crankshaft & Piston ([03.2015 - ] (1503- )2NRFKE)
