Search › Model › NP76

NP76

Toyota STARLET · 1986 · 3,095 parts · 164 categories

3,095 items

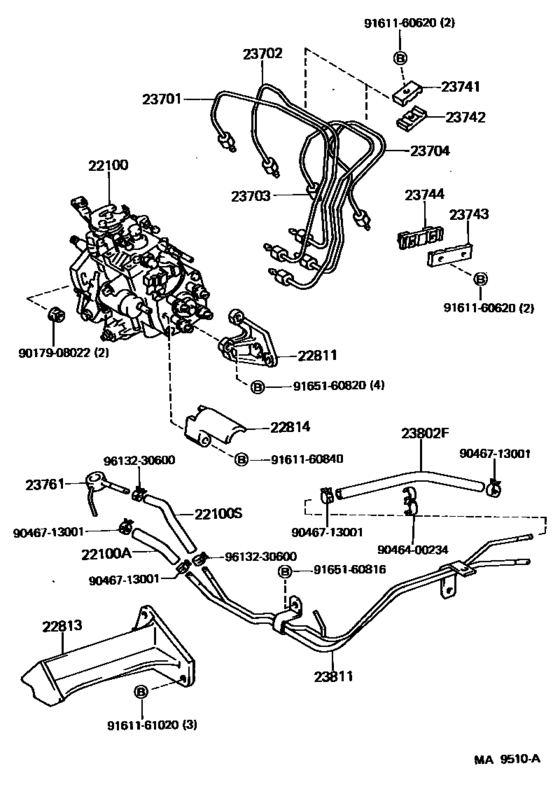

Injection Pump Assembly ([12.1986 - ] (8612- )1N) 43

#	OEM	Part name
22100	22100-55100	Pump Assy, Injection Or Supply
22100	22100-55140	Pump Assy, Injection Or Supply
22100	22100-55130	Pump Assy, Injection Or Supply
22100	95332-08010	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100	95333-08010	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100	23273-55010	Hose, Fuel(For Injection Pump To Fuel Pipe)
22811	22811-55010	Stay, Injection Pump, No.1
22813	22813-55010	Protector, Injection Pump, No.1
22813	22813-55011	Protector, Injection Pump, No.1
22814	22814-55010	Protector, Injection Pump, No.2
23701	23701-55010	Pipe Sub-Assy, Injection, No.1
23701	23701-55020	Pipe Sub-Assy, Injection, No.1
23702	23702-55010	Pipe Sub-Assy, Injection, No.2
23702	23702-55020	Pipe Sub-Assy, Injection, No.2
23703	23703-55010	Pipe Sub-Assy, Injection, No.3
23703	23703-55020	Pipe Sub-Assy, Injection, No.3
23704	23704-55010	Pipe Sub-Assy, Injection, No.4
23704	23704-55020	Pipe Sub-Assy, Injection, No.4
23741	23741-54010	Clamp, Injection Pipe, No.1
23742	23742-54010	Clamp, Injection Pipe, No.2
23743	23741-64020	Clamp, Injection Pipe, No.1
23743	23741-64021	Clamp, Injection Pipe, No.1
23744	23742-55010	Clamp, Injection Pipe, No.4
23744	23742-55011	Clamp, Injection Pipe, No.4
23761	23764-55020	Pipe, Nozzle Leakage, No.1
23802	90447-14049	Hose, Fuel
23802	95332-08040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
23802	95337-08040	Hose, Fuel, No.2 (For Main Tube, No.1)
23811	23811-55020	Pipe, Fuel(For Fuel Filter To Injection Pump)
9017908022	90179-08022	NUT
9046400234	90464-00234	New Genuine Part
9046713001	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
9046713001	96135-51300	Clamp, Hose
9161160620	91611-60620	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160840	91611-60840	BOLT
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9613230600	96132-30600	Clip(For Actuator Hose)
9613230600	96132-51100	Clip (For Hose)

OEM	Part name	Category
22100-55100	Pump Assy, Injection Or Supply	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
22100-55130	Pump Assy, Injection Or Supply	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
22100-55140	Pump Assy, Injection Or Supply	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
22811-55010	Stay, Injection Pump, No.1	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
22813-55010	Protector, Injection Pump, No.1	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
22813-55011	Protector, Injection Pump, No.1	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
22814-55010	Protector, Injection Pump, No.2	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23273-55010	Hose, Fuel(For Injection Pump To Fuel Pipe)	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23701-55010	Pipe Sub-Assy, Injection, No.1	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23701-55020	Pipe Sub-Assy, Injection, No.1	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23702-55010	Pipe Sub-Assy, Injection, No.2	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23702-55020	Pipe Sub-Assy, Injection, No.2	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23703-55010	Pipe Sub-Assy, Injection, No.3	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23703-55020	Pipe Sub-Assy, Injection, No.3	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23704-55010	Pipe Sub-Assy, Injection, No.4	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23704-55020	Pipe Sub-Assy, Injection, No.4	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23741-54010	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23741-64020	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23741-64021	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23742-54010	Clamp, Injection Pipe, No.2	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23742-55010	Clamp, Injection Pipe, No.4	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23742-55011	Clamp, Injection Pipe, No.4	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23764-55020	Pipe, Nozzle Leakage, No.1	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
23811-55020	Pipe, Fuel(For Fuel Filter To Injection Pump)	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
90080-11396	Bolt	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
90179-08022	NUT	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
90447-14049	Hose, Fuel	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
90464-00234	New Genuine Part	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
91611-60620	Screw Or Bolt(For Valve Rocker Shaft Lock)	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
91611-60840	BOLT	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
91611-61020	Bolt(For Transaxle & Engine Setting)	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
91651-60816	BOLT	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
91651-60820	Bolt, Radiator Side Support Plate	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
91651-B0820	Bolt, Radiator Side Support Plate	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
95332-08010	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
95332-08040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
95333-08010	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
95337-08040	Hose, Fuel, No.2 (For Main Tube, No.1)	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
96132-30600	Clip(For Actuator Hose)	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
96132-51100	Clip (For Hose)	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
96135-51300	Clamp, Hose	Injection Pump Assembly ([12.1986 - ] (8612- )1N)
