NNP15

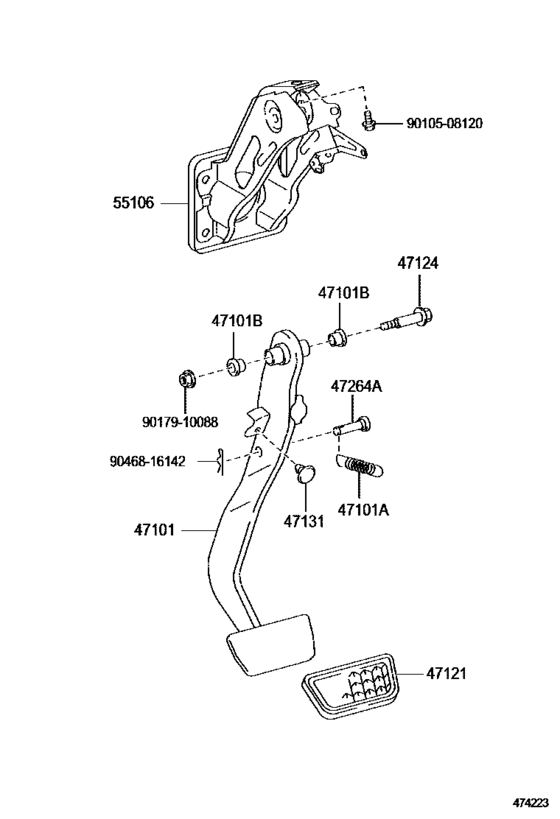

Brake Pedal & Bracket ([07.2004 - ] (0407- )) 11
| # | OEM | Part name |
|---|---|---|
| 47101 | 47101-52220 | Pedal Sub-Assy, Brake |
| 47101 | 90506-16072 | Spring(For Brake Pedal Return) |
| 47101 | 90386-13015 | Bush(For Clutch Pedal) |
| 47121 | 47121-52010 | Pad, Brake Pedal |
| 47124 | 90109-10167 | Shaft, Clutch Pedal |
| 47131 | 90541-06049 | Cushion(For Parking Lock Cable) |
| 47264 | 90249-08297 | Pin(For Push Rod) |
| 55106 | 55106-52110 | Support Sub-Assy, Brake Pedal |
| 9010508120 | 90105-08120 | New Genuine Part |
| 9017910088 | 90179-10088 | Nut |
| 9046816142 | 90468-16142 | Clip(For Push Rod Clevis Pin) |
| OEM | Part name | Category |
|---|---|---|
| 47101-52220 | Pedal Sub-Assy, Brake | Brake Pedal & Bracket ([07.2004 - ] (0407- )) |
| 47121-52010 | Pad, Brake Pedal | Brake Pedal & Bracket ([07.2004 - ] (0407- )) |
| 55106-52110 | Support Sub-Assy, Brake Pedal | Brake Pedal & Bracket ([07.2004 - ] (0407- )) |
| 90105-08120 | New Genuine Part | Brake Pedal & Bracket ([07.2004 - ] (0407- )) |
| 90109-10167 | Shaft, Clutch Pedal | Brake Pedal & Bracket ([07.2004 - ] (0407- )) |
| 90179-10088 | Nut | Brake Pedal & Bracket ([07.2004 - ] (0407- )) |
| 90249-08297 | Pin(For Push Rod) | Brake Pedal & Bracket ([07.2004 - ] (0407- )) |
| 90386-13015 | Bush(For Clutch Pedal) | Brake Pedal & Bracket ([07.2004 - ] (0407- )) |
| 90468-16142 | Clip(For Push Rod Clevis Pin) | Brake Pedal & Bracket ([07.2004 - ] (0407- )) |
| 90506-16072 | Spring(For Brake Pedal Return) | Brake Pedal & Bracket ([07.2004 - ] (0407- )) |
| 90541-06049 | Cushion(For Parking Lock Cable) | Brake Pedal & Bracket ([07.2004 - ] (0407- )) |
