NNP10

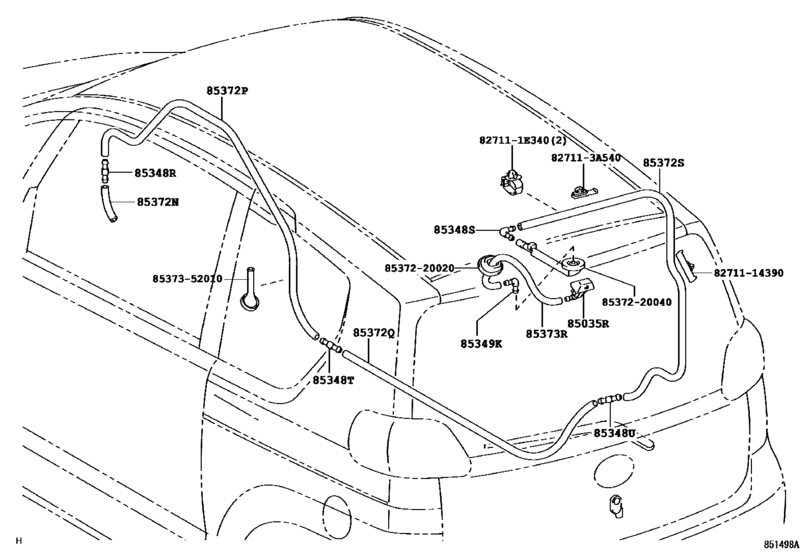

Rear Washer ([07.2004 - ] (0407- )) 14
| # | OEM | Part name |
|---|---|---|
| 0 | 82711-1E340 | Clamp, Hood Lock Control Cable |
| 85035 | 85391-52080 | Nozzle Sub-Assy, Rear Washer |
| 85348 | 85349-89122 | Valve Sub-Assy, Washer |
| 85348 | 85355-20200 | Joint, Windshield Washer Hose, No.1 |
| 85372 | 90099-33080 | Hose, Windshield Washer (From Motor To Joint) |
| 85372 | 90446-06006 | Hose, Windshield Washer (From Motor To Joint) |
| 85372 | 90446-07001 | Hose, Windshield Washer (From Motor To Joint) |
| 85373 | 85395-52090 | Hose, Rear Washer (From Joint To Nozzle) |
| 85373 | 90445-07065 | Hose, Windshield Washer (From Motor To Joint) |
| 827113 | 82711-3A540 | Clamp, Sliding Roof Drain Hose |
| 8271114390 | 82711-14390 | Wire, Fuse To Fuse(for Combustion Heater) |
| 8537220020 | 85372-20020 | Grommet, Rear Washer Hose |
| 8537220040 | 85372-20040 | Grommet, Rear Washer Hose |
| 8537352010 | 85373-52010 | Hose, Windshield Washer (from Joint To Nozzle) |
| OEM | Part name | Category |
|---|---|---|
| 82711-14390 | Wire, Fuse To Fuse(for Combustion Heater) | Rear Washer ([07.2004 - ] (0407- )) |
| 82711-1E340 | Clamp, Hood Lock Control Cable | Rear Washer ([07.2004 - ] (0407- )) |
| 82711-3A540 | Clamp, Sliding Roof Drain Hose | Rear Washer ([07.2004 - ] (0407- )) |
| 85349-89122 | Valve Sub-Assy, Washer | Rear Washer ([07.2004 - ] (0407- )) |
| 85355-20200 | Joint, Windshield Washer Hose, No.1 | Rear Washer ([07.2004 - ] (0407- )) |
| 85372-20020 | Grommet, Rear Washer Hose | Rear Washer ([07.2004 - ] (0407- )) |
| 85372-20040 | Grommet, Rear Washer Hose | Rear Washer ([07.2004 - ] (0407- )) |
| 85373-52010 | Hose, Windshield Washer (from Joint To Nozzle) | Rear Washer ([07.2004 - ] (0407- )) |
| 85391-52080 | Nozzle Sub-Assy, Rear Washer | Rear Washer ([07.2004 - ] (0407- )) |
| 85395-52090 | Hose, Rear Washer (From Joint To Nozzle) | Rear Washer ([07.2004 - ] (0407- )) |
| 90099-33080 | Hose, Windshield Washer (From Motor To Joint) | Rear Washer ([07.2004 - ] (0407- )) |
| 90445-07065 | Hose, Windshield Washer (From Motor To Joint) | Rear Washer ([07.2004 - ] (0407- )) |
| 90446-06006 | Hose, Windshield Washer (From Motor To Joint) | Rear Washer ([07.2004 - ] (0407- )) |
| 90446-07001 | Hose, Windshield Washer (From Motor To Joint) | Rear Washer ([07.2004 - ] (0407- )) |
