NNP10

Toyota PORTE-SPADE · 2004 · 3,672 parts · 170 categories
NNP10 ×

← Back to categories

3,672 items

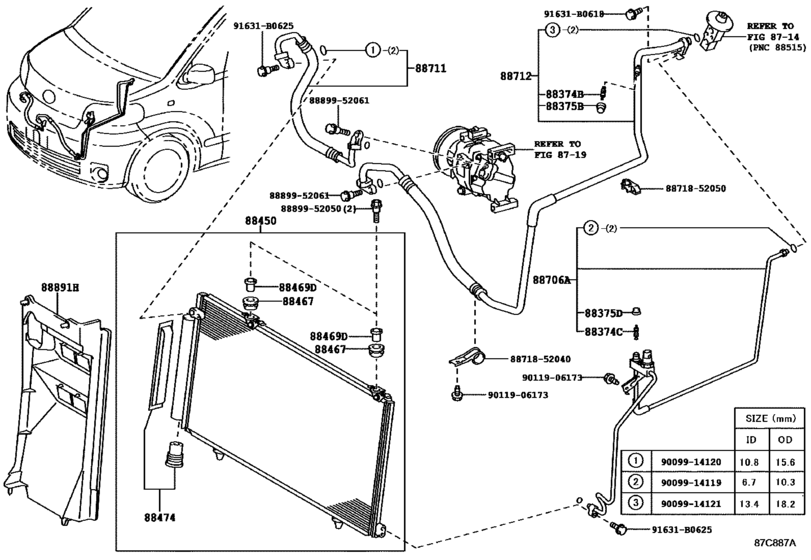

Heating & Air Conditioning - Cooler Piping ([06.2007 - ] (0706- )) 24
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88450 88450-52220 Condenser Assy, W/receiver
88467 88467-12180 Cushion, Cooler Condenser, No.1
88469 88469-52010 Collar, Condenser Bracket, No.1
88474 88474-12030 Dryer, Cooler
88706 88706-52360 Tube Sub-Assy, Liquid, A
88706 88706-52361 Tube Sub-Assy, Liquid, A
88711 88711-52180 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-52030 Hose, Cooler Refrigerant Suction, No.1
88712 88712-52031 Hose, Cooler Refrigerant Suction, No.1
88891 88891-52010 Cover, Cooler, No.1
91631 91631-B0618 BOLT WWASHER
91631 91631-B0625 BOLT W-WASHER
8871852040 88718-52040 Pipe, Cooler Refrigerant Suction, No.2
8871852050 88718-52050 Pipe, Cooler Refrigerant Suction, No.2
8889952050 88899-52050 Cover, Evaporator
8889952061 88899-52061 Cover, Evaporator
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9011906173 90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)
