Search › Model › NNP10

NNP10

Toyota PORTE-SPADE · 2004 · 3,672 parts · 170 categories

3,672 items

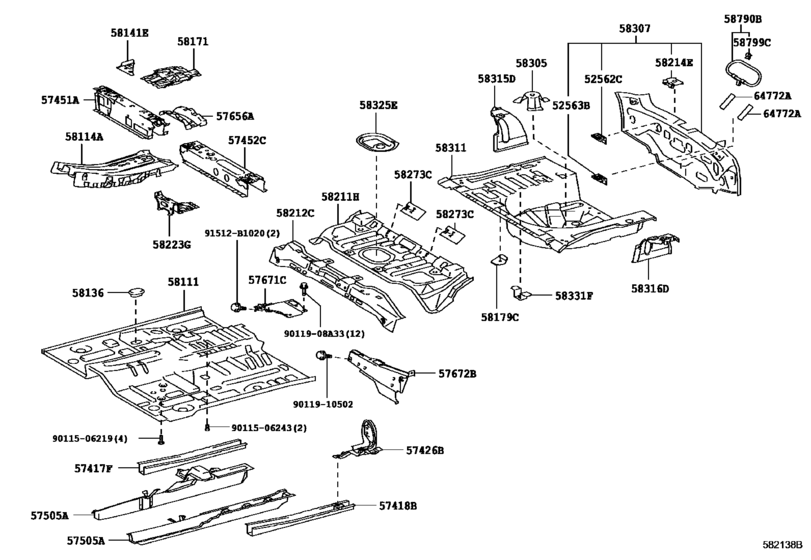

Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11) 42

#	OEM	Part name
52562	52562-52020	Retainer, Rear Bumper, Upper Rh
57417	57417-52040	Reinforcement, Front Floor Under, Rh
57418	57504-52010	Reinforcement, Front Floor Under, Lh
57426	57048-52010	Reinforcement, Front Floor, No.2 Lh
57451	57508-52060	Member, Front Floor Cross, Rh
57452	57509-52040	Member, Front Floor Cross, Lh
57505	57505-52060	Reinforcement Sub-Assy, Front Floor Under
57505	57506-52050	Reinforcement Sub-Assy, Front Floor Under
57656	57656-52080	Bracket, Exhaust Pipe Mounting, No.1
57671	57671-52110	Brace, Rear Floor No.1 Crossmember, Rh
57672	57065-52010	Brace, Rear Floor No.1 Crossmember, Lh
58111	58111-52922	Pan, Front Floor
58114	58103-52030	Reinforcement, Front Floor Panel
58136	58136-52010	Cover, Front Floor Hole
58141	58141-52010	Reinforcement, Front Side Member To Floor Pan, Rh
58171	58107-52030	Reinforcement, Parking Brake Base
58179	58179-52020	Bracket, Clamp Floor
58211	58211-52032	Pan, Center Floor
58211	58211-52033	Pan, Center Floor
58211	90333-25001	Plug, Hole(For Hood)
58211	90950-01958	Plug, Hole(For Back Door Panel)
58212	58202-52100	Member, Rear Floor Cross, Front
58214	58214-46020	Bracket, Jack Support
58223	58223-52010	Reinforcement, Seat Set, No.1
58273	58273-52100	Reinforcement, Belt Anchor To Center Floor
58305	58351-52030	Bracket Sub-Assy, Spare Wheel Clamp
58307	58307-52380	Panel Sub-Assy, Body Lower Back
58307	58307-52381	Panel Sub-Assy, Body Lower Back
58311	58311-52033	Pan, Rear Floor
58315	58315-52030	Extension, Rear Floor Pan, Rh
58316	58316-52030	Extension, Rear Floor Pan, Lh
58325	58325-52010	Cover, Rear Floor Service Hole
58331	58331-10010	Bracket, Rear Floor Heat Insulator, No.3
58790	58790-52010	Carrier Assy, Jack
58799	90469-08001	Clamp, Jack Carrier
64772	64772-16100	Pad, Spare Wheel Cover
91512	91512-B1020	Bolt(For Front Transaxle Case Cover)
91512	90105-A0050	Bolt(For Front Transaxle Case Cover)
9011908	90119-08A33	BOLT
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9011506243	90115-06243	Bolt, Weld(For Front Floor Panel, Center)
9011910502	90119-10502	BOLT WWASHER

OEM	Part name	Category
52562-52020	Retainer, Rear Bumper, Upper Rh	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
57048-52010	Reinforcement, Front Floor, No.2 Lh	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
57065-52010	Brace, Rear Floor No.1 Crossmember, Lh	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
57417-52040	Reinforcement, Front Floor Under, Rh	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
57504-52010	Reinforcement, Front Floor Under, Lh	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
57505-52060	Reinforcement Sub-Assy, Front Floor Under	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
57506-52050	Reinforcement Sub-Assy, Front Floor Under	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
57508-52060	Member, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
57509-52040	Member, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
57656-52080	Bracket, Exhaust Pipe Mounting, No.1	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
57671-52110	Brace, Rear Floor No.1 Crossmember, Rh	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58103-52030	Reinforcement, Front Floor Panel	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58107-52030	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58111-52922	Pan, Front Floor	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58136-52010	Cover, Front Floor Hole	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58141-52010	Reinforcement, Front Side Member To Floor Pan, Rh	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58179-52020	Bracket, Clamp Floor	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58202-52100	Member, Rear Floor Cross, Front	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58211-52032	Pan, Center Floor	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58211-52033	Pan, Center Floor	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58214-46020	Bracket, Jack Support	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58223-52010	Reinforcement, Seat Set, No.1	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58273-52100	Reinforcement, Belt Anchor To Center Floor	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58307-52380	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58307-52381	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58311-52033	Pan, Rear Floor	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58315-52030	Extension, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58316-52030	Extension, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58325-52010	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58331-10010	Bracket, Rear Floor Heat Insulator, No.3	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58351-52030	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
58790-52010	Carrier Assy, Jack	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
64772-16100	Pad, Spare Wheel Cover	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
90105-A0050	Bolt(For Front Transaxle Case Cover)	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
90115-06243	Bolt, Weld(For Front Floor Panel, Center)	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
90119-08A33	BOLT	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
90119-10502	BOLT WWASHER	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
90333-25001	Plug, Hole(For Hood)	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
90469-08001	Clamp, Jack Carrier	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
90950-01958	Plug, Hole(For Back Door Panel)	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
91512-B1020	Bolt(For Front Transaxle Case Cover)	Floor Pan & Lower Back Panel ([07.2004 - ] (0407- )NNP10,11)
