NLP51

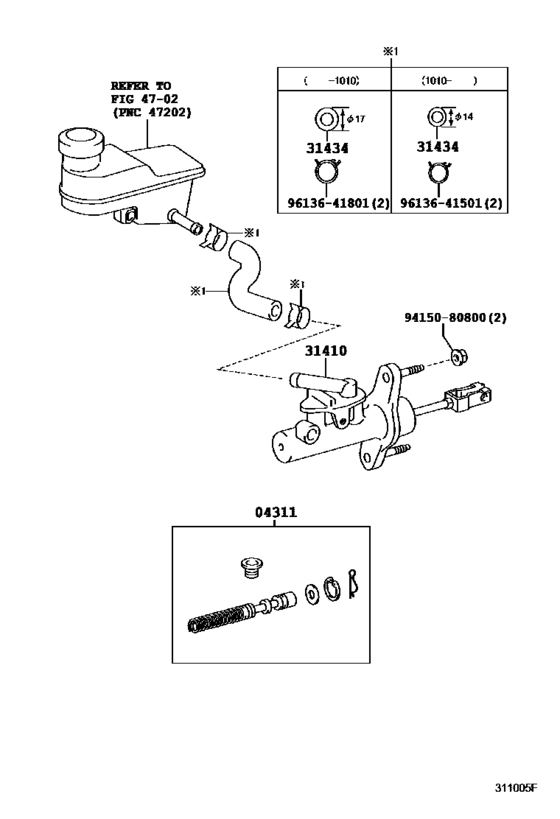

Clutch Master Cylinder ([06.2002 - ] (0206- )5F) 6
| # | OEM | Part name |
|---|---|---|
| 4311 | 04311-12110 | Cylinder Kit, Clutch Master |
| 31410 | 31420-52030 | Cylinder Assy, Clutch Master |
| 31434 | 31434-52030 | Tube, Clutch Reservoir |
| 9415080800 | 94150-80800 | NUT, FLANGE |
| 9613641501 | 96136-41501 | Clamp Or Clip, Hose(For Water By-Pass Hose) |
| 9613641801 | 96136-41801 | Clip(For Fuel Vapor Feed Hose, No.2) |
| OEM | Part name | Category |
|---|---|---|
| 04311-12110 | Cylinder Kit, Clutch Master | Clutch Master Cylinder ([06.2002 - ] (0206- )5F) |
| 31420-52030 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([06.2002 - ] (0206- )5F) |
| 31434-52030 | Tube, Clutch Reservoir | Clutch Master Cylinder ([06.2002 - ] (0206- )5F) |
| 94150-80800 | NUT, FLANGE | Clutch Master Cylinder ([06.2002 - ] (0206- )5F) |
| 96136-41501 | Clamp Or Clip, Hose(For Water By-Pass Hose) | Clutch Master Cylinder ([06.2002 - ] (0206- )5F) |
| 96136-41801 | Clip(For Fuel Vapor Feed Hose, No.2) | Clutch Master Cylinder ([06.2002 - ] (0206- )5F) |
