NLP20

Toyota YARIS-ECHO-VIOS-LIMO · 2001 · 4,257 parts · 213 categories

← Back to categories

4,257 items

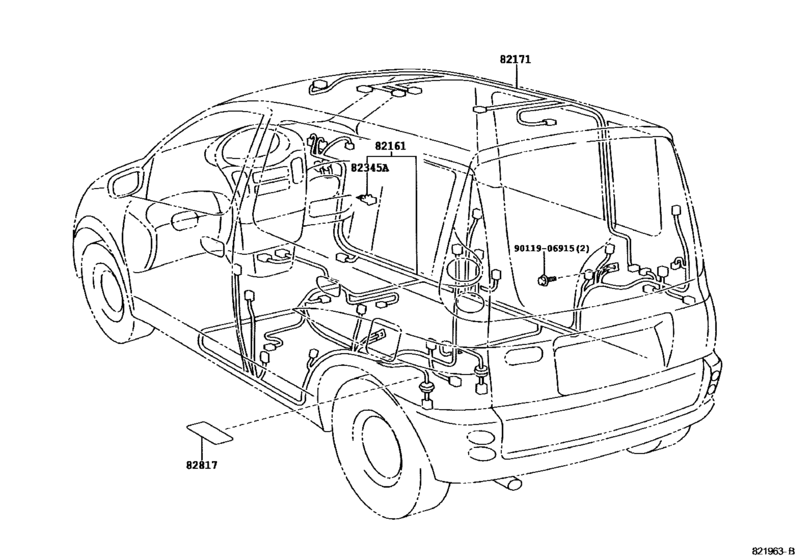

Wiring & Clamp ([08.1999 - ] FLOOR & ROOF (9908- )) 9

#	OEM	Part name
82161	82161-52262	Wire, Floor
82161	82161-52292	Wire, Floor
82161	82161-5C620	Wire, Floor
82161	82161-5C640	Wire, Floor
82171	82171-52020	Wire, Roof, No.1
82171	82171-52040	Wire, Roof, No.1
82171	82171-52070	Wire, Roof, No.1
82345	82345-20050	Diode
9011906915	90119-06915	BOLT W-WASHER

OEM	Part name	Category
82161-52262	Wire, Floor	Wiring & Clamp ([08.1999 - ] FLOOR & ROOF (9908- ))
82161-52292	Wire, Floor	Wiring & Clamp ([08.1999 - ] FLOOR & ROOF (9908- ))
82161-5C620	Wire, Floor	Wiring & Clamp ([08.1999 - ] FLOOR & ROOF (9908- ))
82161-5C640	Wire, Floor	Wiring & Clamp ([08.1999 - ] FLOOR & ROOF (9908- ))
82171-52020	Wire, Roof, No.1	Wiring & Clamp ([08.1999 - ] FLOOR & ROOF (9908- ))
82171-52040	Wire, Roof, No.1	Wiring & Clamp ([08.1999 - ] FLOOR & ROOF (9908- ))
82171-52070	Wire, Roof, No.1	Wiring & Clamp ([08.1999 - ] FLOOR & ROOF (9908- ))
82345-20050	Diode	Wiring & Clamp ([08.1999 - ] FLOOR & ROOF (9908- ))
90119-06915	BOLT W-WASHER	Wiring & Clamp ([08.1999 - ] FLOOR & ROOF (9908- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 213
Collected: 2026-08-04
