Search › Model › NLP20

NLP20

Toyota YARIS-ECHO-VIOS-LIMO · 2001 · 4,257 parts · 213 categories

4,257 items

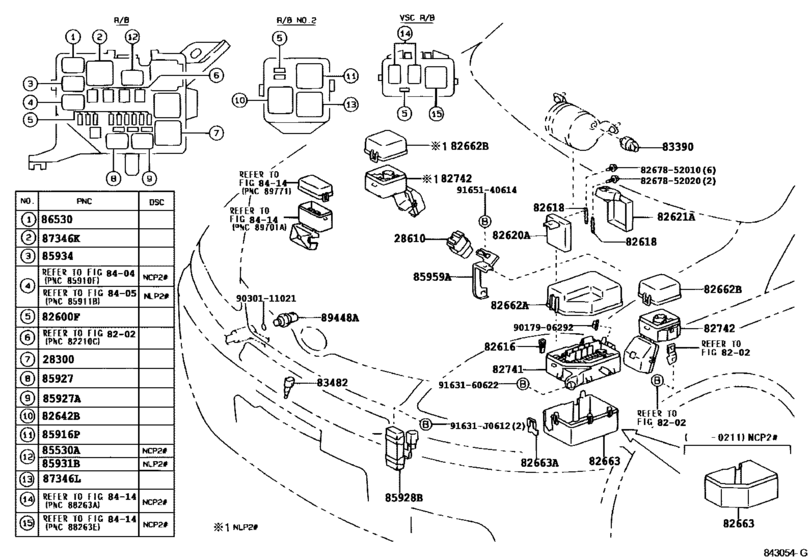

Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509)) 38

#	OEM	Part name
28300	28300-10020	Relay Assy, Starter
28610	28610-67010	Relay Assy, Glow Plug
82600	90982-09008	Fusible Link
82600	90982-09009	Fusible Link
82600	90982-09010	Fusible Link
82600	90982-09011	Fusible Link
82600	90982-09012	Fusible Link
82600	90982-09013	Fusible Link
82616	82616-20010	Puller, Fuse
82618	82618-52010	Fuse, Fuse Block
82618	82618-52030	Fuse, Fuse Block
82618	82618-52040	Fuse, Fuse Block
82620	82620-52010	Block Assy, Fusible Link
82620	82620-52011	Block Assy, Fusible Link
82621	82621-52030	Cover, Fusible Link
82621	82621-52031	Cover, Fusible Link
82662	82662-52110	Cover, Relay Block, Upper, No.1
82662	82662-52111	Cover, Relay Block, Upper, No.1
82663	82663-52040	Cover, Relay Block, Lower
82663	82663-52050	Cover, Relay Block, Lower, No.2
82741	82741-52010	Block, Engine Room Relay
83390	83390-30100	Switch Assy, Vacuum Warning
83482	83482-02010	Sensor, Outer Ambient Temperature
85530	90987-02012	Relay, Ignition, No.1
85530	90987-02022	Relay, Starter Cut
85530	90987-02027	Relay
85927	90987-04004	Relay, Starter Cut
85928	85928-52010	Resistor, Cooling Fan
85928	85928-52011	Resistor, Cooling Fan
85934	90987-02028	Relay, Water Pump
85959	85959-52010	Holder, Relay
91631	91631-J0612	BRACKET
8267852010	82678-52010	Cover, Junction Block, Upper No.3
8267852020	82678-52020	Cover, Junction Block, Upper No.3
9017906292	90179-06292	NUT
9030111021	90301-11021	RING O
9163160622	91631-60622	Screw
9165140614	91651-40614	Bolt

OEM	Part name	Category
28300-10020	Relay Assy, Starter	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
28610-67010	Relay Assy, Glow Plug	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82616-20010	Puller, Fuse	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82618-52010	Fuse, Fuse Block	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82618-52030	Fuse, Fuse Block	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82618-52040	Fuse, Fuse Block	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82620-52010	Block Assy, Fusible Link	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82620-52011	Block Assy, Fusible Link	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82621-52030	Cover, Fusible Link	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82621-52031	Cover, Fusible Link	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82662-52110	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82662-52111	Cover, Relay Block, Upper, No.1	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82663-52040	Cover, Relay Block, Lower	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82663-52050	Cover, Relay Block, Lower, No.2	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82678-52010	Cover, Junction Block, Upper No.3	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82678-52020	Cover, Junction Block, Upper No.3	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
82741-52010	Block, Engine Room Relay	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
83390-30100	Switch Assy, Vacuum Warning	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
83482-02010	Sensor, Outer Ambient Temperature	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
85928-52010	Resistor, Cooling Fan	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
85928-52011	Resistor, Cooling Fan	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
85959-52010	Holder, Relay	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90179-06292	NUT	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90301-11021	RING O	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90982-09008	Fusible Link	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90982-09009	Fusible Link	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90982-09010	Fusible Link	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90982-09011	Fusible Link	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90982-09012	Fusible Link	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90982-09013	Fusible Link	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90987-02012	Relay, Ignition, No.1	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90987-02022	Relay, Starter Cut	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90987-02027	Relay	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90987-02028	Relay, Water Pump	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
90987-04004	Relay, Starter Cut	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
91631-60622	Screw	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
91631-J0612	BRACKET	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
91651-40614	Bolt	Switch & Relay & Computer ([08.1999 - 09.2005] ENGINE ROOM (9908-0509))
