Toyota YARIS-ECHO-VIOS-LIMO · 2001 · 4,257 parts · 213 categories
NLP20 ×

← Back to categories

4,257 items

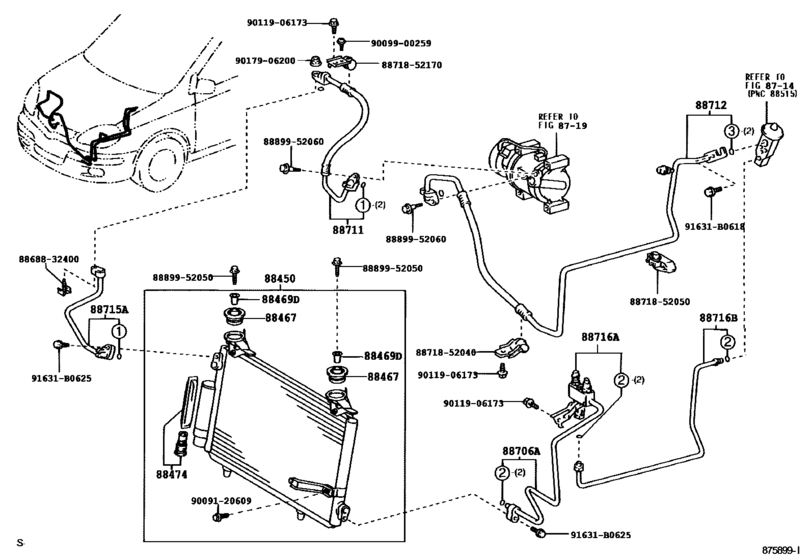

Heating & Air Conditioning - Cooler Piping ([11.2002 - ] (0211- )NLP2#..RHD) 34
#OEMPart name
88450 88450-52161 Condenser Assy, Cooler
88450 88450-52180 Condenser Assy, W/receiver
88450 88450-52181 Condenser Assy, W/receiver
88467 88467-12180 Cushion, Cooler Condenser, No.1
88467 88467-52010 Cushion, Cooler Condenser, No.1
88469 88469-52010 Collar, Condenser Bracket, No.1
88474 88474-17010 Dryer, Cooler
88474 88474-47010 Dryer, Cooler
88706 88706-52040 Tube Sub-Assy, Liquid, A
88711 88703-52080 Hose Sub-Assy, Discharge
88711 88711-52170 Hose, Cooler Refrigerant Discharge, No.1
88711 88718-52170 Pipe, Cooler Refrigerant Suction, No.2
88711 90099-00259 New Genuine Part
88711 88711-52050 Hose, Cooler Refrigerant Discharge, No.1
88711 88703-52030 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-52140 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-52090 Hose, Cooler Refrigerant Suction, No.1
88715 88715-52050 Pipe, Cooler Refrigerant Discharge, A
88715 88715-52060 Pipe, Cooler Refrigerant Discharge, A
88716 88706-52100 Pipe, Cooler Refrigerant Liquid, A
88716 88716-52040 Pipe, Cooler Refrigerant Liquid, A
88716 88716-52110 Pipe, Cooler Refrigerant Liquid, A
88716 88716-52120 Pipe, Cooler Refrigerant Liquid, B
91631 91631-B0618 BOLT WWASHER
91631 91631-B0625 BOLT W-WASHER
8868832400 88688-32400 Bracket, Cooler Diaphragm
8871852040 88718-52040 Pipe, Cooler Refrigerant Suction, No.2
8871852050 88718-52050 Pipe, Cooler Refrigerant Suction, No.2
8889952050 88899-52050 Cover, Evaporator
8889952060 88899-52060 Cover, Evaporator
8889952060 88899-52061 Cover, Evaporator
9009120609 90091-20609 BOLT
9011906173 90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)
9017906200 90179-06200 New Genuine Part
