Search › Model › NLP20

NLP20

Toyota YARIS-ECHO-VIOS-LIMO · 2001 · 4,257 parts · 213 categories

4,257 items

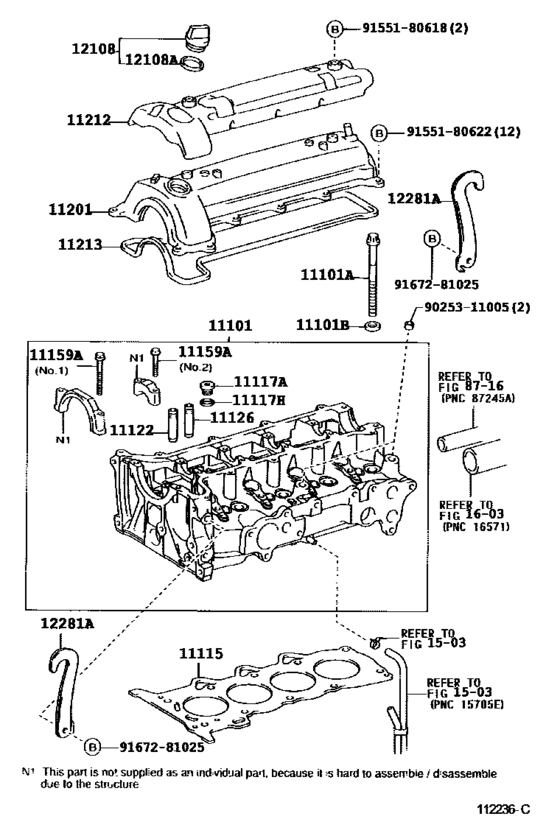

Cylinder Head ([10.2001 - ] (0110- )1NDTV) 38

#	OEM	Part name
11101	11101-33030	Head Sub-Assy, Cylinder
11101	11101-33031	Head Sub-Assy, Cylinder
11101	90910-02148	Bolt(For Cylinder Head Set)
11101	90910-02182	Bolt(For Cylinder Head Set)
11101	90201-13021	Washer, Plate(For Cylinder Head Set)
11115	11115-33020-A0	Gasket, Cylinder Head
11115	11115-33022-C0	Gasket, Cylinder Head
11115	11115-33020-B0	Gasket, Cylinder Head
11115	11115-33020-C0	Gasket, Cylinder Head
11115	11115-33020-D0	Gasket, Cylinder Head
11115	11115-33022-D0	Gasket, Cylinder Head
11115	11115-33020-E0	Gasket, Cylinder Head
11115	11115-33022-E0	Gasket, Cylinder Head
11115	11115-33021-C0	Gasket, Cylinder Head
11115	11115-33021-D0	Gasket, Cylinder Head
11115	11115-33021-E0	Gasket, Cylinder Head
11117	90341-14008	Plug, W/head Taper Screw, No.1
11117	90430-14008	Gasket(For Water Hole)
11122	11122-30020	Bush, Valve Guide (OS 0.05)
11122	11122-33030	Bush, Intake Valve Guide
11122	11123-30020	Bush, Valve Guide
11122	11123-33030	Bush, Intake Valve Guide
11159	90119-07008	Bolt(For Camshaft Bearing Cap To Housing Rh, No.2)
11159	90119-07009	Bolt(For Camshaft Housing Set)
11201	11201-33020	Cover Sub-Assy, Cylinder Head
11201	11201-33021	Cover Sub-Assy, Cylinder Head
11212	11212-33010	Cover, Cylinder Head, No.2
11213	11213-33020	Gasket, Cylinder Head Cover
11213	11213-33021	Gasket, Cylinder Head Cover
12108	12180-21010	Cap Sub-Assy, Oil Filler
12108	12180-28010	Cap Sub-Assy, Oil Filler
12108	90430-37004	Gasket(For Oil Filler Cap)
12108	90430-37140	Gasket(For Oil Filler Cap)
12281	12281-21010	Hanger, Engine, No.1
9025311005	90253-11005	Pin, Ring(For Camshaft Bearing Cap Setting)
9155180618	91551-80618	Bolt, W/washer(For Repair Actuator Set)
9155180622	91551-80622	BOLT FLANGE
9167281025	91672-81025	Bolt, Center Support Bearing Bracket

OEM	Part name	Category
11101-33030	Head Sub-Assy, Cylinder	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11101-33031	Head Sub-Assy, Cylinder	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11115-33020-A0	Gasket, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11115-33020-B0	Gasket, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11115-33020-C0	Gasket, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11115-33020-D0	Gasket, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11115-33020-E0	Gasket, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11115-33021-C0	Gasket, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11115-33021-D0	Gasket, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11115-33021-E0	Gasket, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11115-33022-C0	Gasket, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11115-33022-D0	Gasket, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11115-33022-E0	Gasket, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11122-30020	Bush, Valve Guide (OS 0.05)	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11122-33030	Bush, Intake Valve Guide	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11123-30020	Bush, Valve Guide	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11123-33030	Bush, Intake Valve Guide	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11201-33020	Cover Sub-Assy, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11201-33021	Cover Sub-Assy, Cylinder Head	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11212-33010	Cover, Cylinder Head, No.2	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11213-33020	Gasket, Cylinder Head Cover	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
11213-33021	Gasket, Cylinder Head Cover	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
12180-21010	Cap Sub-Assy, Oil Filler	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
12180-28010	Cap Sub-Assy, Oil Filler	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
12281-21010	Hanger, Engine, No.1	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
90119-07008	Bolt(For Camshaft Bearing Cap To Housing Rh, No.2)	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
90119-07009	Bolt(For Camshaft Housing Set)	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
90201-13021	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
90253-11005	Pin, Ring(For Camshaft Bearing Cap Setting)	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
90341-14008	Plug, W/head Taper Screw, No.1	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
90430-14008	Gasket(For Water Hole)	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
90430-37004	Gasket(For Oil Filler Cap)	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
90430-37140	Gasket(For Oil Filler Cap)	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
90910-02148	Bolt(For Cylinder Head Set)	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
90910-02182	Bolt(For Cylinder Head Set)	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
91551-80618	Bolt, W/washer(For Repair Actuator Set)	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
91551-80622	BOLT FLANGE	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
91672-81025	Bolt, Center Support Bearing Bracket	Cylinder Head ([10.2001 - ] (0110- )1NDTV)
