Search › Model › NLP130
NLP130

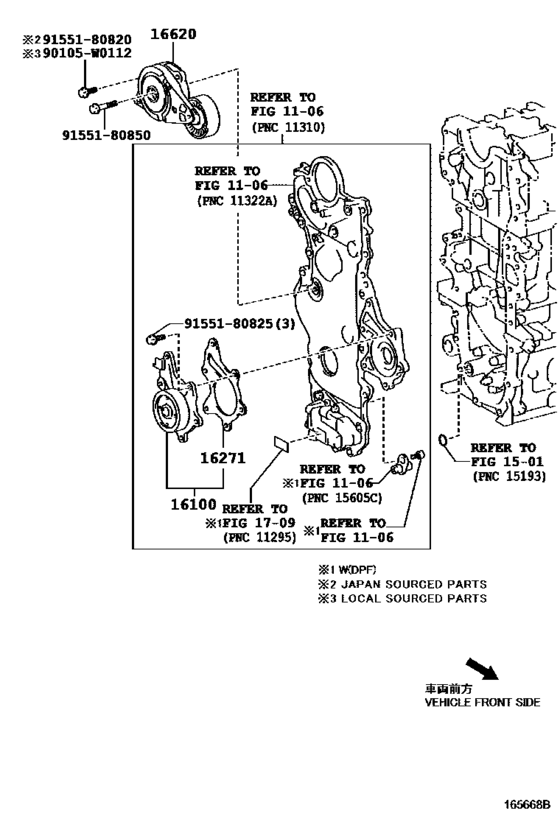

Water Pump ([07.2014 - ] (1407- )1NDTV) 10
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-09610 | Pump Assy, Engine Water |
| 16100 | 16100-09680 | Pump Assy, Engine Water |
| 16271 | 16271-33030 | Gasket, Water Pump |
| 16620 | 16620-0N010 | Tensioner Assy, V-Ribbed Belt |
| 16620 | 16620-33040 | Tensioner Assy, V-Ribbed Belt |
| 16620 | 16620-33041 | Tensioner Assy, V-Ribbed Belt |
| 90105 | 90105-W0112 | BOLT FLANGE |
| 9155180820 | 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) |
| 9155180825 | 91551-80825 | Bolt(For Cylinder Head Set Sub) |
| 9155180850 | 91551-80850 | Bolt, Compressor, No.1 |
| OEM | Part name | Category |
|---|---|---|
| 16100-09610 | Pump Assy, Engine Water | Water Pump ([07.2014 - ] (1407- )1NDTV) |
| 16100-09680 | Pump Assy, Engine Water | Water Pump ([07.2014 - ] (1407- )1NDTV) |
| 16271-33030 | Gasket, Water Pump | Water Pump ([07.2014 - ] (1407- )1NDTV) |
| 16620-0N010 | Tensioner Assy, V-Ribbed Belt | Water Pump ([07.2014 - ] (1407- )1NDTV) |
| 16620-33040 | Tensioner Assy, V-Ribbed Belt | Water Pump ([07.2014 - ] (1407- )1NDTV) |
| 16620-33041 | Tensioner Assy, V-Ribbed Belt | Water Pump ([07.2014 - ] (1407- )1NDTV) |
| 90105-W0112 | BOLT FLANGE | Water Pump ([07.2014 - ] (1407- )1NDTV) |
| 91551-80820 | Bolt, W/washer (For Transmission Oil Pump Cover) | Water Pump ([07.2014 - ] (1407- )1NDTV) |
| 91551-80825 | Bolt(For Cylinder Head Set Sub) | Water Pump ([07.2014 - ] (1407- )1NDTV) |
| 91551-80850 | Bolt, Compressor, No.1 | Water Pump ([07.2014 - ] (1407- )1NDTV) |
