NLP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,882 parts · 226 categories

← Back to categories

3,882 items

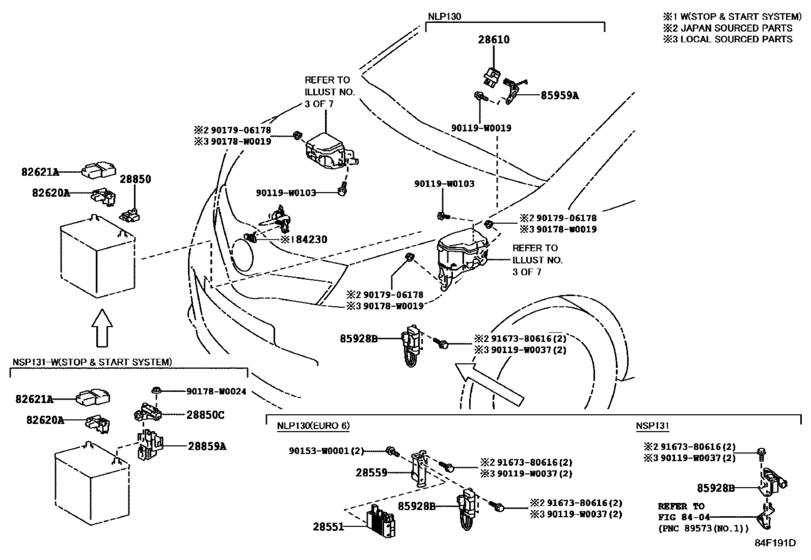

Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#) 19

#	OEM	Part name
28551	28551-30010	Controller, Glow Plug
28559	28559-0N010	Bracket, Glow Plug Controller, No.1
28610	28610-67010	Relay Assy, Glow Plug
28850	28850-40020	Sensor Assy, Battery Current
82620	82620-52080	Block Assy, Fusible Link
82621	82621-52150	Cover, Fusible Link
85928	85928-52030	Resistor, Cooling Fan
85928	85928-52032	Resistor, Cooling Fan
85959	85959-0D010	Holder, Relay
90119	90119-W0019	BOLT WWASHER
90119	90119-A0182	New Genuine Part
90119	90119-W0037	Bolt, W/washer
90119	90119-W0103	New Genuine Part
90153	90153-W0001	New Genuine Part
90153	90153-50010	BOLT
90178	90178-W0019	Nut, Cap(For Cylinder Head Cover)
90178	90178-W0024	New Genuine Part
9017906178	90179-06178	Nut (For Rear Wiper Arm Setting)
9167380616	91673-80616	Bolt, W/washer

OEM	Part name	Category
28551-30010	Controller, Glow Plug	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
28559-0N010	Bracket, Glow Plug Controller, No.1	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
28610-67010	Relay Assy, Glow Plug	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
28850-40020	Sensor Assy, Battery Current	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
82620-52080	Block Assy, Fusible Link	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
82621-52150	Cover, Fusible Link	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
85928-52030	Resistor, Cooling Fan	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
85928-52032	Resistor, Cooling Fan	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
85959-0D010	Holder, Relay	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
90119-A0182	New Genuine Part	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
90119-W0019	BOLT WWASHER	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
90119-W0037	Bolt, W/washer	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
90119-W0103	New Genuine Part	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
90153-50010	BOLT	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
90153-W0001	New Genuine Part	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
90178-W0019	Nut, Cap(For Cylinder Head Cover)	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
90178-W0024	New Genuine Part	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
90179-06178	Nut (For Rear Wiper Arm Setting)	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
91673-80616	Bolt, W/washer	Switch & Relay & Computer ([07.2014 - ] ENGINE ROOM (1407- )KSP130,NLP130,NSP13#)
