Search › Model › NLP130
NLP130

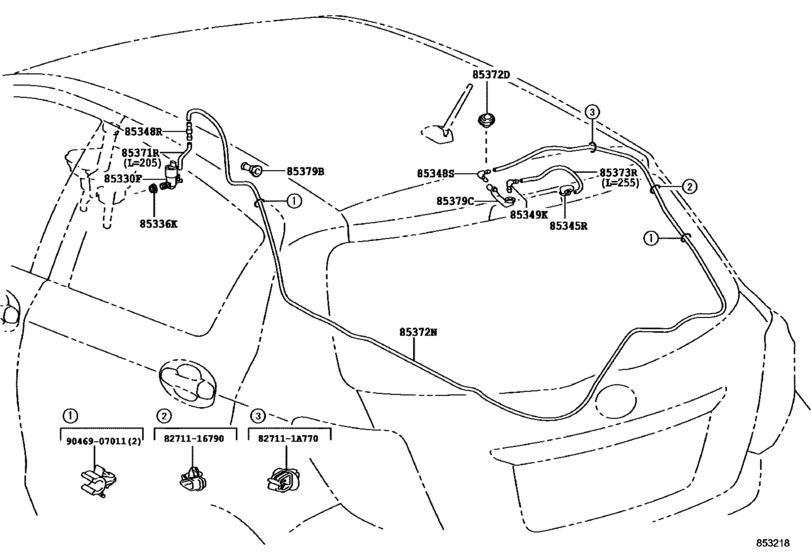

Rear Washer ([07.2014 - ] (1407- )) 14
| # | OEM | Part name |
|---|---|---|
| 85330 | 85330-0F020 | Motor & Pump Assy, Rr Washer - REAR WASHER |
| 85330 | 85330-0F021 | Motor & Pump Assy, Rr Washer |
| 85336 | 85336-0D170 | Protector, Washer Jar |
| 85345 | 85391-0D050 | Nozzle, Rear Washer |
| 85348 | 85375-0D260 | Joint, Windshield Washer Hose, No.1 |
| 85348 | 85376-0D260 | Joint, Rear Washer Elbow, No.1 |
| 85371 | 90069-46058 | Hose, Rear Washer (From Motor To Joint) |
| 85372 | 85373-0D060 | Grommet, Rear Washer Hose |
| 85372 | 90069-46059 | Hose, Rear Washer (From Joint To Joint), No.1 |
| 85379 | 85379-0D260 | Grommet, Washer, A |
| 85379 | 85373-0D050 | Grommet, Rear Washer Hose No.1 |
| 827111 | 82711-1A770 | Clamp, Wiring Harness |
| 8271116790 | 82711-16790 | Clamp, Wiring Harness |
| 9046907011 | 90469-07011 | Clamp No.1 (For Windseield Washer) |
| OEM | Part name | Category |
|---|---|---|
| 82711-16790 | Clamp, Wiring Harness | Rear Washer ([07.2014 - ] (1407- )) |
| 82711-1A770 | Clamp, Wiring Harness | Rear Washer ([07.2014 - ] (1407- )) |
| 85330-0F020 | Motor & Pump Assy, Rr Washer - REAR WASHER | Rear Washer ([07.2014 - ] (1407- )) |
| 85330-0F021 | Motor & Pump Assy, Rr Washer | Rear Washer ([07.2014 - ] (1407- )) |
| 85336-0D170 | Protector, Washer Jar | Rear Washer ([07.2014 - ] (1407- )) |
| 85373-0D050 | Grommet, Rear Washer Hose No.1 | Rear Washer ([07.2014 - ] (1407- )) |
| 85373-0D060 | Grommet, Rear Washer Hose | Rear Washer ([07.2014 - ] (1407- )) |
| 85375-0D260 | Joint, Windshield Washer Hose, No.1 | Rear Washer ([07.2014 - ] (1407- )) |
| 85376-0D260 | Joint, Rear Washer Elbow, No.1 | Rear Washer ([07.2014 - ] (1407- )) |
| 85379-0D260 | Grommet, Washer, A | Rear Washer ([07.2014 - ] (1407- )) |
| 85391-0D050 | Nozzle, Rear Washer | Rear Washer ([07.2014 - ] (1407- )) |
| 90069-46058 | Hose, Rear Washer (From Motor To Joint) | Rear Washer ([07.2014 - ] (1407- )) |
| 90069-46059 | Hose, Rear Washer (From Joint To Joint), No.1 | Rear Washer ([07.2014 - ] (1407- )) |
| 90469-07011 | Clamp No.1 (For Windseield Washer) | Rear Washer ([07.2014 - ] (1407- )) |
