Search › Model › NLP130

NLP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,882 parts · 226 categories

← Back to categories

3,882 items

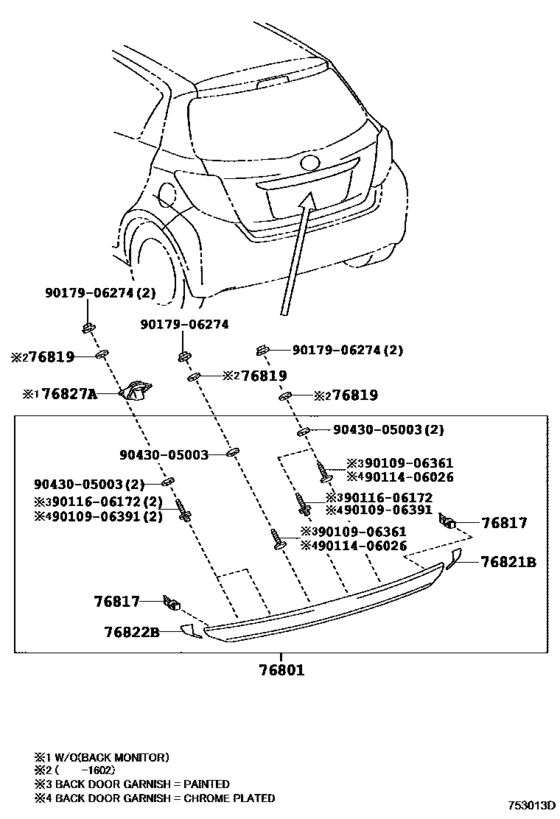

Rear Moulding ([07.2014 - 03.2017] (1407-1703)) 18

#	OEM	Part name
76801	76801-0D571	Garnish Sub-Assy, Back Door, Outside
76801	76801-0D820	Garnish Sub-Assy, Back Door, Outside
76801	76801-0D917	Garnish Sub-Assy, Back Door, Outside
76801	76801-0D920	Garnish Sub-Assy, Back Door, Outside
76801	76801-0D922	Garnish Sub-Assy, Back Door, Outside
76801	76801-0D918	Garnish Sub-Assy, Back Door, Outside
76801	76801-0D921	Garnish Sub-Assy, Back Door, Outside
76801	76801-0D923	Garnish Sub-Assy, Back Door, Outside
76817	76813-0D010	Clip, Back Door Outside Garnish
76817	76817-50010	Clip, Back Door Outside Garnish
76819	76819-0D010	Seal, Back Door Outside Garnish
76821	76821-0D250	Protector, Back Door Garnish Side, Rh
76822	76822-0D120	Protector, Back Door Garnish Side, Lh
76827	76827-0D010	Retainer, Back Door Garnish, No.2
9010906361	90109-06361	BOLT
9011606172	90116-06172	BOLT STUD
9017906274	90179-06274	Nut
9043005003	90430-05003	GASKET

OEM	Part name	Category
76801-0D571	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76801-0D820	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76801-0D917	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76801-0D918	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76801-0D920	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76801-0D921	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76801-0D922	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76801-0D923	Garnish Sub-Assy, Back Door, Outside	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76813-0D010	Clip, Back Door Outside Garnish	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76817-50010	Clip, Back Door Outside Garnish	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76819-0D010	Seal, Back Door Outside Garnish	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76821-0D250	Protector, Back Door Garnish Side, Rh	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76822-0D120	Protector, Back Door Garnish Side, Lh	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
76827-0D010	Retainer, Back Door Garnish, No.2	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
90109-06361	BOLT	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
90116-06172	BOLT STUD	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
90179-06274	Nut	Rear Moulding ([07.2014 - 03.2017] (1407-1703))
90430-05003	GASKET	Rear Moulding ([07.2014 - 03.2017] (1407-1703))

Source: Public OEM parts-catalog data
Variants: 2 / 38
Category: 226
Collected: 2026-08-04
