NLP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,882 parts · 226 categories

3,882 items

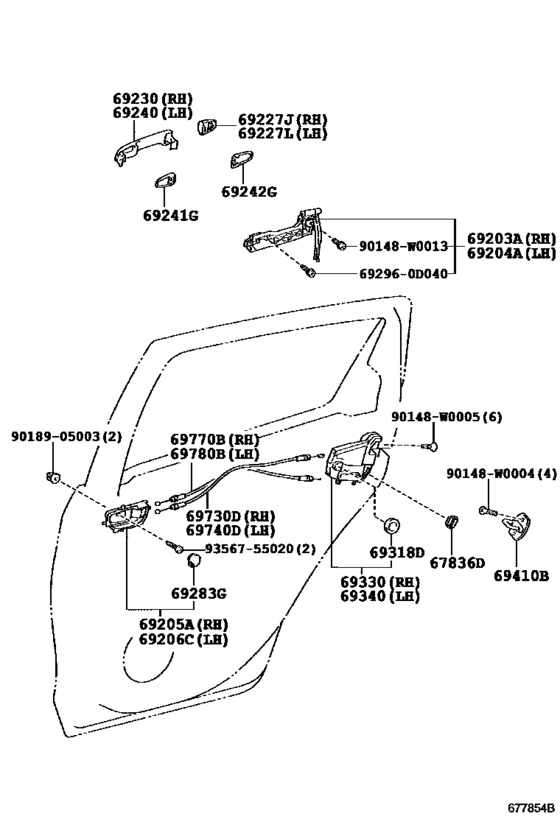

Rear Door Lock & Handle ([07.2014 - ] (1407- )5D) 30

#	OEM	Part name
67836	67836-12040	Cover, Rear Door Lock Child Protection, Rh
69203	69203-0D090	Frame Sub-Assy, Rear Door Outside Handle, Rh
69204	69204-0D090	Frame Sub-Assy, Rear Door Outside Handle, Lh
69205	69205-02330-C2	Handle Sub-Assy, Front Door Inside, Rh
69205	69205-0D271-C1	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-02300-C2	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-0D271-C1	Handle Sub-Assy, Front Door Inside, Lh
69227	69227-0D904	Cover, Rear Door Outside Handle, Rh
69227	69227-0D070	Cover, Rear Door Outside Handle, Rh
69230	69211-0D904	Handle Assy, Front Door, Outside Rh
69230	69211-0D130	Handle Assy, Front Door, Outside Rh
69241	69241-0D010	Pad, Rear Door Outside Handle, Front
69242	69242-0D010	Pad, Front Door Outside Handle, Rear
69283	69283-0D010-C2	Plug, Front Door Inside Handle Bezel
69318	69318-47010	Seal, Front Door Lock Hole, Rh
69330	69050-0D170	Lock Assy, Rear Door W/motor, Rh
69330	69050-0D310	Lock Assy, Rear Door, Rh
69340	69060-0D170	Lock Assy, Rear Door W/motor, Lh
69340	69060-0D310	Lock Assy, Rear Door, Lh
69410	69410-0D030	Plate Assy, Front Door Lock Striker
69730	69730-0D140	Cable Assy, Rear Door Lock Remote Control, Rh
69730	69730-0D230	Cable Assy, Rear Door Lock Remote Control, Rh
69770	69770-0D110	Cable Assy, Rear Door Inside Locking, Rh
69770	69770-0D190	Cable Assy, Rear Door Inside Locking, Rh
90148	90148-W0004	New Genuine Part
90148	90148-W0005	New Genuine Part
90148	90148-W0013	New Genuine Part
692960	69296-0D040	Screw, Door Inside Handle
9018905003	90189-05003	CLIP
9356755020	93567-55020	SCREW

OEM	Part name	Category
67836-12040	Cover, Rear Door Lock Child Protection, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69050-0D170	Lock Assy, Rear Door W/motor, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69050-0D310	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69060-0D170	Lock Assy, Rear Door W/motor, Lh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69060-0D310	Lock Assy, Rear Door, Lh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69203-0D090	Frame Sub-Assy, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69204-0D090	Frame Sub-Assy, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69205-02330-C2	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69205-0D271-C1	Handle Sub-Assy, Front Door Inside, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69206-02300-C2	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69206-0D271-C1	Handle Sub-Assy, Front Door Inside, Lh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69211-0D130	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69211-0D904	Handle Assy, Front Door, Outside Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69227-0D070	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69227-0D904	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69241-0D010	Pad, Rear Door Outside Handle, Front	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69242-0D010	Pad, Front Door Outside Handle, Rear	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69283-0D010-C2	Plug, Front Door Inside Handle Bezel	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69296-0D040	Screw, Door Inside Handle	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69318-47010	Seal, Front Door Lock Hole, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69410-0D030	Plate Assy, Front Door Lock Striker	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69730-0D140	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69730-0D230	Cable Assy, Rear Door Lock Remote Control, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69770-0D110	Cable Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
69770-0D190	Cable Assy, Rear Door Inside Locking, Rh	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
90148-W0004	New Genuine Part	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
90148-W0005	New Genuine Part	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
90148-W0013	New Genuine Part	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
90189-05003	CLIP	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
93567-55020	SCREW	Rear Door Lock & Handle ([07.2014 - ] (1407- )5D)
