Search › Model › NLP130

NLP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,882 parts · 226 categories

← Back to categories

3,882 items

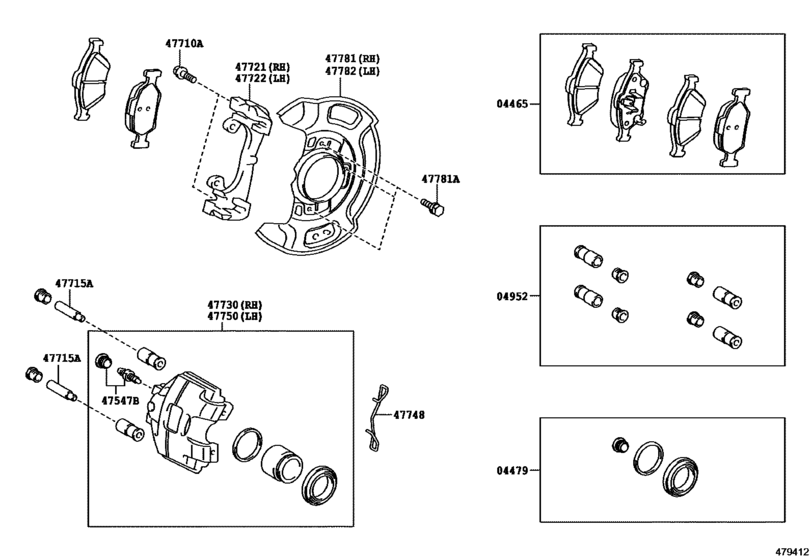

Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- )) 17

#	OEM	Part name
4465	04465-0D050	Pad Kit, Disc Brake, Front
4465	04465-0D120	Pad Kit, Disc Brake, Front
4479	04478-0D050	Cylinder Kit, Disc Brake, Front
4952	04951-05010	Pin Kit, Front Disc Brake Cylinder Slide
47547	47547-09050	Plug, Bleeder(For Front Disc Brake)
47710	90105-W0121	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47715-05010	Pin, Cylinder Slide(For Rear Disc Brake)
47721	47721-0D070	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-0D200	Mounting, Front Disc Brake Cylinder, Rh
47730	47730-0D070	Cylinder Assy, Front Disc Brake, Rh
47730	47730-0D200	Cylinder Assy, Front Disc Brake, Rh
47748	47748-0D070	Spring, Anti-Rattle, No.1(For Front Disc Brake)
47750	47750-0D070	Cylinder Assy, Disc Brake, Lh
47750	47750-0D200	Cylinder Assy, Disc Brake, Lh
47781	47781-0D170	Cover, Disc Brake Dust, Front Rh
47781	90080-11525	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47782	47782-0D100	Cover, Disc Brake Dust, Front Lh

OEM	Part name	Category
04465-0D050	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
04465-0D120	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
04478-0D050	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
04951-05010	Pin Kit, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
47547-09050	Plug, Bleeder(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
47715-05010	Pin, Cylinder Slide(For Rear Disc Brake)	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
47721-0D070	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
47721-0D200	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
47730-0D070	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
47730-0D200	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
47748-0D070	Spring, Anti-Rattle, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
47750-0D070	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
47750-0D200	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
47781-0D170	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
47782-0D100	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
90080-11525	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))
90105-W0121	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([07.2014 - ] (1407- ))

Source: Public OEM parts-catalog data
Variants: 2 / 38
Category: 226
Collected: 2026-08-04
