Search › Model › NLP130

NLP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,882 parts · 226 categories

3,882 items

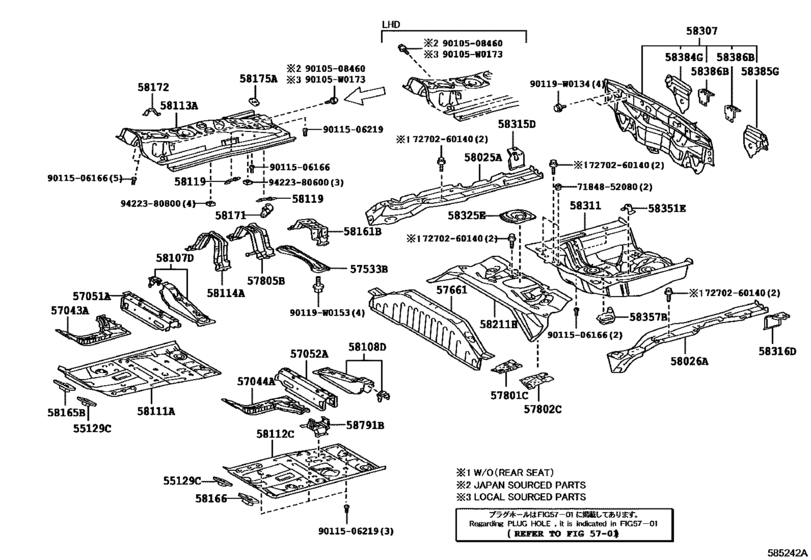

Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#) 54

#	OEM	Part name
55129	55129-0D100	Cover, Dash Panel Hole
55129	55139-0D020	Cover, Dash Panel Hole
57043	57043-0D012	Reinforcement Sub-Assy, Front Side Member, Rear Rh
57043	57043-0D013	Reinforcement Sub-Assy, Front Side Member, Rear Rh
57044	57044-0D042	Reinforcement Sub-Assy, Front Side Member, Rear Lh
57044	57044-0D043	Reinforcement Sub-Assy, Front Side Member, Rear Lh
57051	57051-52020	Member Sub-Assy, Front Floor Cross, Rh
57051	57051-52030	Member Sub-Assy, Front Floor Cross, Rh
57052	57052-52020	Member Sub-Assy, Front Floor Cross, Lh
57533	57533-0D050	Brace, Front Floor, Center
57661	57661-0D050	Panel, Rear Floor Side, Front Rh
57801	57801-0D060	Reinforcement Sub-Assy, Belt Anchor, No.1 Rh
57802	57802-0D050	Reinforcement Sub-Assy, Belt Anchor, No.1 Lh
57805	57805-0D090	Reinforcement Sub-Assy, Belt Anchor, Rh
58025	58025-52022	Panel Sub-Assy, Floor Side Rail, Fr Rh
58026	58026-52022	Panel Sub-Assy, Floor Side Rail, Fr Lh
58107	58107-0D051	Reinforce Sub-Assy, Front Cross To Front Panel, Rh
58108	58108-0D031	Reinforce Sub-Assy, Front Cross To Front Panel, Lh
58111	58111-52270	Pan, Front Floor, Rh
58111	58111-52271	Pan, Front Floor, Rh
58112	58112-52918	Pan, Front Floor, Lh
58112	58112-52922	Pan, Front Floor, Lh
58113	58113-52925	Panel, Front Floor, Center
58114	58114-0D100	Reinforcement, Front Floor Panel
58114	58114-0D101	Reinforcement, Front Floor Panel
58119	58119-0D020	Plate, Front Floor Side, Front
58161	58161-0D080	Reinforcement, Belt Anchor To Floor Pan
58165	58165-0D020	Cover, Front Floor, Rh
58166	58166-0D020	Cover, Front Floor, Lh
58171	58171-0D070	Reinforcement, Parking Brake Base
58172	58172-52020	Bracket, Computer Mounting, No.3
58175	58175-52020	Reinforcement, Parking Brake Base, No.1
58211	58211-0D080	Pan, Center Floor
58307	58307-0D140	Panel Sub-Assy, Body Lower Back
58311	58311-52110	Pan, Rear Floor
58315	58315-0D040	Extension, Rear Floor Pan, Rh
58316	58316-0D040	Extension, Rear Floor Pan, Lh
58325	58325-0D130	Cover, Rear Floor Service Hole
58351	58351-52070	Bracket Sub-Assy, Spare Wheel Clamp
58357	58357-52031	Bracket, Actuator Cover, No.3 Rh
58384	58384-0D060	Gusset, Lower Back, Upper Rh
58385	58385-0D080	Gusset, Lower Back, Upper Lh
58386	58386-0D040	Bracket, Rear Bumper Cover, No.2
58791	58791-0D110	Carrier, Jack
90105	90105-W0173	New Genuine Part
90119	90119-W0134	New Genuine Part
90119	90119-W0153	New Genuine Part
7184852080	71848-52080	Ornament, Front Seat Bracket, Lh
7270260140	72702-60140	Bracket Sub-assy, Rear Seat Back Striker
9010508460	90105-08460	New Genuine Part
9011506166	90115-06166	Bolt, Weld(For Front Floor Pan)
9011506219	90115-06219	Bolt, Weld(For Front Floor Pan, Lh)
9422380600	94223-80600	Retainer, Rear Door Open Switch Set, Rh
9422380800	94223-80800	New Genuine Part

OEM	Part name	Category
55129-0D100	Cover, Dash Panel Hole	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
55139-0D020	Cover, Dash Panel Hole	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
57043-0D012	Reinforcement Sub-Assy, Front Side Member, Rear Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
57043-0D013	Reinforcement Sub-Assy, Front Side Member, Rear Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
57044-0D042	Reinforcement Sub-Assy, Front Side Member, Rear Lh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
57044-0D043	Reinforcement Sub-Assy, Front Side Member, Rear Lh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
57051-52020	Member Sub-Assy, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
57051-52030	Member Sub-Assy, Front Floor Cross, Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
57052-52020	Member Sub-Assy, Front Floor Cross, Lh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
57533-0D050	Brace, Front Floor, Center	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
57661-0D050	Panel, Rear Floor Side, Front Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
57801-0D060	Reinforcement Sub-Assy, Belt Anchor, No.1 Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
57802-0D050	Reinforcement Sub-Assy, Belt Anchor, No.1 Lh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
57805-0D090	Reinforcement Sub-Assy, Belt Anchor, Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58025-52022	Panel Sub-Assy, Floor Side Rail, Fr Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58026-52022	Panel Sub-Assy, Floor Side Rail, Fr Lh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58107-0D051	Reinforce Sub-Assy, Front Cross To Front Panel, Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58108-0D031	Reinforce Sub-Assy, Front Cross To Front Panel, Lh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58111-52270	Pan, Front Floor, Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58111-52271	Pan, Front Floor, Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58112-52918	Pan, Front Floor, Lh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58112-52922	Pan, Front Floor, Lh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58113-52925	Panel, Front Floor, Center	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58114-0D100	Reinforcement, Front Floor Panel	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58114-0D101	Reinforcement, Front Floor Panel	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58119-0D020	Plate, Front Floor Side, Front	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58161-0D080	Reinforcement, Belt Anchor To Floor Pan	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58165-0D020	Cover, Front Floor, Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58166-0D020	Cover, Front Floor, Lh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58171-0D070	Reinforcement, Parking Brake Base	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58172-52020	Bracket, Computer Mounting, No.3	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58175-52020	Reinforcement, Parking Brake Base, No.1	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58211-0D080	Pan, Center Floor	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58307-0D140	Panel Sub-Assy, Body Lower Back	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58311-52110	Pan, Rear Floor	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58315-0D040	Extension, Rear Floor Pan, Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58316-0D040	Extension, Rear Floor Pan, Lh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58325-0D130	Cover, Rear Floor Service Hole	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58351-52070	Bracket Sub-Assy, Spare Wheel Clamp	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58357-52031	Bracket, Actuator Cover, No.3 Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58384-0D060	Gusset, Lower Back, Upper Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58385-0D080	Gusset, Lower Back, Upper Lh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58386-0D040	Bracket, Rear Bumper Cover, No.2	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
58791-0D110	Carrier, Jack	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
71848-52080	Ornament, Front Seat Bracket, Lh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
72702-60140	Bracket Sub-assy, Rear Seat Back Striker	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
90105-08460	New Genuine Part	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
90105-W0173	New Genuine Part	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
90115-06166	Bolt, Weld(For Front Floor Pan)	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
90115-06219	Bolt, Weld(For Front Floor Pan, Lh)	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
90119-W0134	New Genuine Part	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
90119-W0153	New Genuine Part	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
94223-80600	Retainer, Rear Door Open Switch Set, Rh	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
94223-80800	New Genuine Part	Floor Pan & Lower Back Panel ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
