NLP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,882 parts · 226 categories

← Back to categories

3,882 items

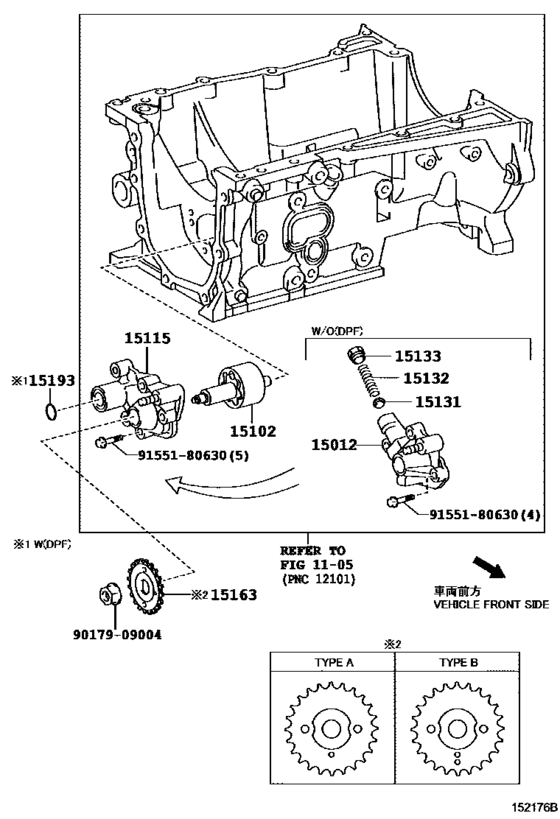

Engine Oil Pump ([07.2014 - ] (1407- )1NDTV) 9

#	OEM	Part name
15102	15102-0N010	Rotor Set, Oil Pump
15102	15102-33060	Rotor Set, Oil Pump
15115	15120-0N010	Cover, Oil Pump
15115	15120-33080	Cover, Oil Pump
15163	15163-33010	Gear, Oil Pump Drive Shaft
15163	15163-33020	Gear, Oil Pump Drive Shaft
15193	15193-33020	Gasket, Oil Pump
9017909004	90179-09004	NUT
9155180630	91551-80630	Bolt(For Cylinder Head Cover)

OEM	Part name	Category
15102-0N010	Rotor Set, Oil Pump	Engine Oil Pump ([07.2014 - ] (1407- )1NDTV)
15102-33060	Rotor Set, Oil Pump	Engine Oil Pump ([07.2014 - ] (1407- )1NDTV)
15120-0N010	Cover, Oil Pump	Engine Oil Pump ([07.2014 - ] (1407- )1NDTV)
15120-33080	Cover, Oil Pump	Engine Oil Pump ([07.2014 - ] (1407- )1NDTV)
15163-33010	Gear, Oil Pump Drive Shaft	Engine Oil Pump ([07.2014 - ] (1407- )1NDTV)
15163-33020	Gear, Oil Pump Drive Shaft	Engine Oil Pump ([07.2014 - ] (1407- )1NDTV)
15193-33020	Gasket, Oil Pump	Engine Oil Pump ([07.2014 - ] (1407- )1NDTV)
90179-09004	NUT	Engine Oil Pump ([07.2014 - ] (1407- )1NDTV)
91551-80630	Bolt(For Cylinder Head Cover)	Engine Oil Pump ([07.2014 - ] (1407- )1NDTV)
