NLP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,882 parts · 226 categories
NLP130 ×

← Back to categories

3,882 items

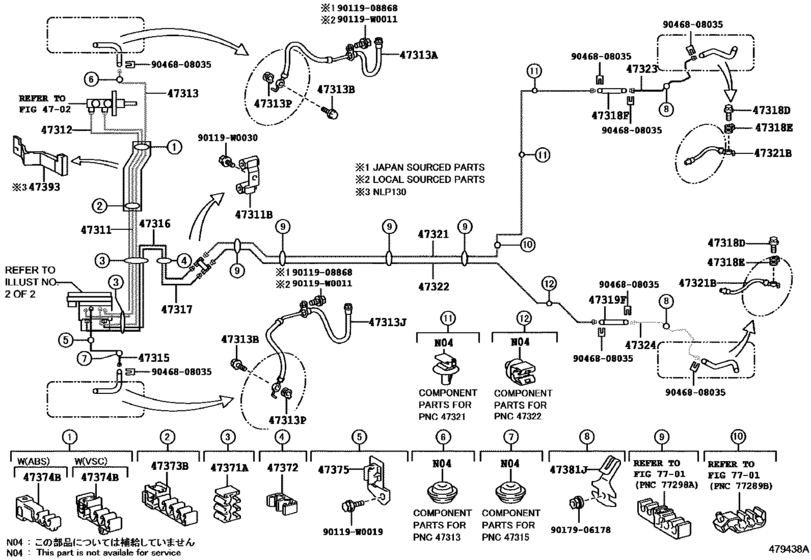

Brake Tube & Clamp ([07.2014 - ] BRAKE TUBE,W(REAR DISC BRAKE) (1407- )KSP130,NLP130,NSP13#..RHD) 38
#OEMPart name
47311 47311-0D520 Tube, Front Brake, No.1
47311 90412-10285 Way, No.1(For Front Brake Tube)
47312 47312-0D260 Tube, Front Brake, No.2
47313 47313-0D441 Tube, Front Brake, No.3
47313 90947-W2034 Hose, Flexible, No.1(For Front)
47313 90947-W2050 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 90947-W2035 Hose, Flexible, No.2(For Front)
47313 90947-W2051 Hose, Flexible, No.2(For Front)
47313 47389-50020 Gasket(For Front Flexible Hose)
47315 47315-0D421 Tube, Front Brake, No.5
47316 47316-0D331 Tube, Front Brake, No.6
47317 47317-0D331 Tube, Front Brake, No.7
47318 90947-W2036 Hose, Clutch, No.1
47319 90947-W2037 Hose, Flexible(For Rear Lh)
47321 47321-0D301 Tube, Rear Brake, No.1
47321 90947-W2038 Hose, Flexible(For Rear Brake Tube)
47322 47322-0D301 Tube, Rear Brake, No.2
47323 47323-0D191 Tube, Rear Brake, No.3
47323 47323-0D201 Tube, Rear Brake, No.3
47324 47324-0D191 Tube, Rear Brake, No.4
47324 47324-0D201 Tube, Rear Brake, No.4
47371 90464-00956 Clamp, Brake Tube, No.3
47372 90949-01D91 Clamp, Brake Tube, No.1
47373 90949-01D97 Clamp, Brake Tube, No.6
47374 90949-01D94 Clamp, Brake Tube, No.2
47375 47371-0D020 Clamp, Brake Tube, No.5
47375 47371-0D021 Clamp, Brake Tube, No.5
47381 47381-52020 Bracket, Brake Tube Clamp No.1
47393 47393-0D020 Insulator, Brake Tube Heat
90119 90119-W0011 New Genuine Part
90119 90119-W0019 BOLT WWASHER
90119 90119-A0182 New Genuine Part
90119 90119-W0030 New Genuine Part
9011908868 90119-08868 BOLT WWASHER
9017906178 90179-06178 Nut (For Rear Wiper Arm Setting)
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
