NLP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,882 parts · 226 categories

← Back to categories

3,882 items

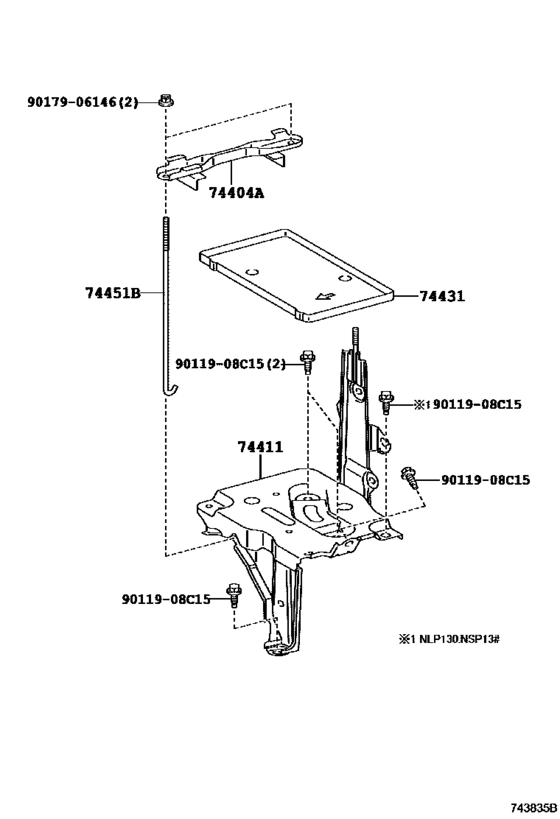

Battery Carrier ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#) 7

#	OEM	Part name
74404	74404-0D130	Clamp Sub-Assy, Battery
74411	74410-0D100	Carrier, Battery
74411	74410-0D110	Carrier, Battery
74431	74431-0D110	Tray, Battery
74451	74451-0D080	Bolt, Battery Clamp
9011908	90119-08C15	BOLT WWASHER
9017906146	90179-06146	Nut

OEM	Part name	Category
74404-0D130	Clamp Sub-Assy, Battery	Battery Carrier ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
74410-0D100	Carrier, Battery	Battery Carrier ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
74410-0D110	Carrier, Battery	Battery Carrier ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
74431-0D110	Tray, Battery	Battery Carrier ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
74451-0D080	Bolt, Battery Clamp	Battery Carrier ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
90119-08C15	BOLT WWASHER	Battery Carrier ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)
90179-06146	Nut	Battery Carrier ([07.2014 - ] (1407- )KSP130,NLP130,NSP13#)

Source: Public OEM parts-catalog data
Variants: 2 / 38
Category: 226
Collected: 2026-08-04
