NLP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,882 parts · 226 categories

← Back to categories

3,882 items

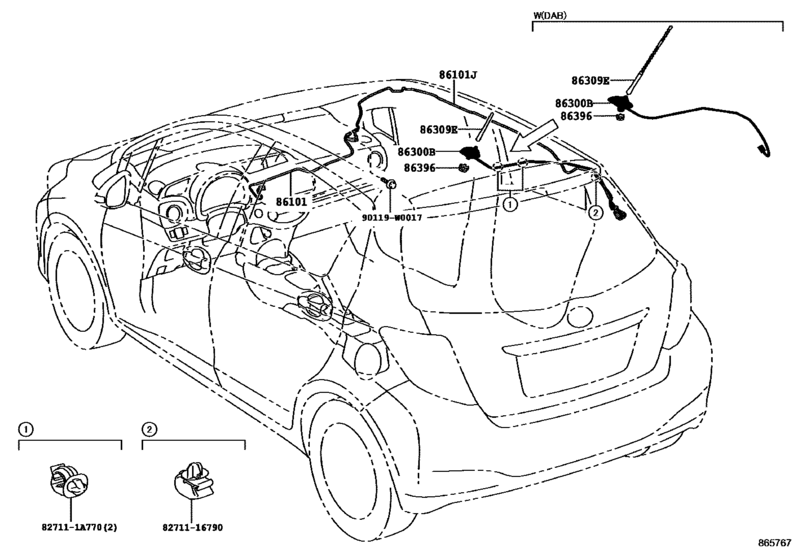

Antenna ([07.2014 - ] (1407- )) 13

#	OEM	Part name
86101	86101-0D420	Cord Sub-Assy, Antenna
86101	86101-0D660	Cord Sub-Assy, Antenna
86101	86101-0D390	Cord Sub-Assy, Antenna, No.2
86101	86101-0D400	Cord Sub-Assy, Antenna, No.2
86300	86300-0D220	Antenna Assy, Amplifier, No.1
86309	86309-02120	Pole Sub-Assy, Roof Antenna
86309	86309-0D110	Pole Sub-Assy, Roof Antenna
86309	86309-0D210	Pole Sub-Assy, Roof Antenna
86396	86396-47010	Nut, Antenna
90119	90119-W0017	New Genuine Part
90119	90119-06390	BOLT WWASHER
827111	82711-1A770	Clamp, Wiring Harness
8271116790	82711-16790	Clamp, Wiring Harness

OEM	Part name	Category
82711-16790	Clamp, Wiring Harness	Antenna ([07.2014 - ] (1407- ))
82711-1A770	Clamp, Wiring Harness	Antenna ([07.2014 - ] (1407- ))
86101-0D390	Cord Sub-Assy, Antenna, No.2	Antenna ([07.2014 - ] (1407- ))
86101-0D400	Cord Sub-Assy, Antenna, No.2	Antenna ([07.2014 - ] (1407- ))
86101-0D420	Cord Sub-Assy, Antenna	Antenna ([07.2014 - ] (1407- ))
86101-0D660	Cord Sub-Assy, Antenna	Antenna ([07.2014 - ] (1407- ))
86300-0D220	Antenna Assy, Amplifier, No.1	Antenna ([07.2014 - ] (1407- ))
86309-02120	Pole Sub-Assy, Roof Antenna	Antenna ([07.2014 - ] (1407- ))
86309-0D110	Pole Sub-Assy, Roof Antenna	Antenna ([07.2014 - ] (1407- ))
86309-0D210	Pole Sub-Assy, Roof Antenna	Antenna ([07.2014 - ] (1407- ))
86396-47010	Nut, Antenna	Antenna ([07.2014 - ] (1407- ))
90119-06390	BOLT WWASHER	Antenna ([07.2014 - ] (1407- ))
90119-W0017	New Genuine Part	Antenna ([07.2014 - ] (1407- ))

Source: Public OEM parts-catalog data
Variants: 2 / 38
Category: 226
Collected: 2026-08-04
