Search › Model › NLP121

NLP121

Toyota VERSO · 2010 · 3,478 parts · 222 categories

3,478 items

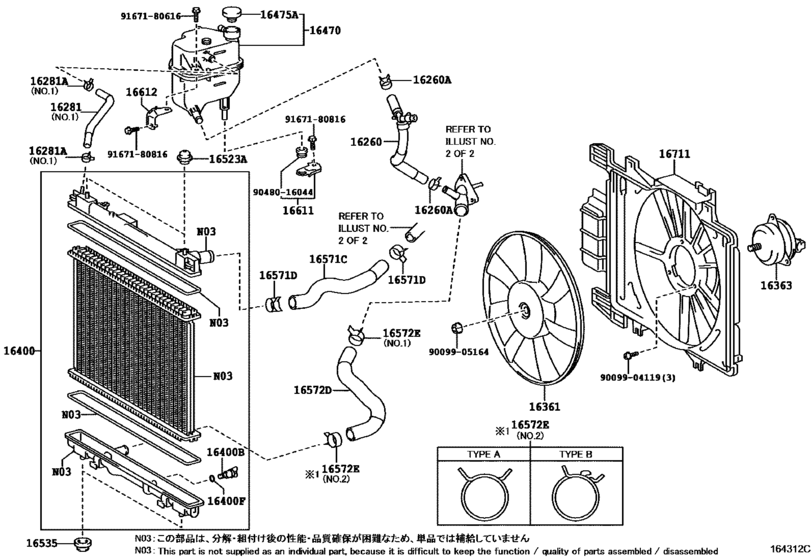

Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV) 60

#	OEM	Part name
16206	16206-33060	Pipe Sub-Assy, Water By-Pass
16260	16260-33090	Hose Assy, Water By-Pass
16260	96136-42501	Clip(For Ventilation Hose)
16261	16261-33050	Hose, Water By-Pass
16261	96137-41701	Clamp Or Clip, Hose(For Water By-Pass Hose)
16261	96137-41901	Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE)
16262	16262-33010	Hose, Water Inlet
16262	16262-33011	Hose, Water Inlet
16262	16263-33030	Hose, Water Inlet
16262	96136-52201	Clip(For Ventilation Hose No.2)
16264	16264-33040	Hose, Water By-Pass, No.2
16267	16267-33030	Hose, Water By-Pass, No.3
16268	90301-20016	Ring, O(For Water By-Pass Pipe)
16281	16281-33030	Hose, Water By-Pass, No.4
16281	16281-33050	Hose, Water By-Pass, No.4
16281	96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)
16281	96136-52101	Clip(For Ventilation Hose)
16304	16304-33010	Outlet Sub-Assy, Water
16304	16262-0N011	Hose, Water Inlet
16304	16304-33011	Outlet Sub-Assy, Water
16321	16321-33040	Inlet, Water
16322	16322-33010	Pipe, Water Inlet
16323	16323-33030	Housing, Water Inlet
16325	16325-33010	Gasket, Water Inlet Housing, No.1
16326	16326-33030	Gasket, Water Inlet Housing, No.2
16341	16341-33010	Gasket, Water Outlet
16361	16361-33040	Fan
16363	16363-28160	Motor, Cooling Fan
16400	16400-33120	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16470	16470-33020	Tank Assy, Radiator Reserve
16470	16470-33021	Tank Assy, Radiator Reserve
16475	16475-51010	Cap Sub-Assy, Radiator Reserve Tank
16475	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16475	16475-51011	Cap, Reserve Tank
16523	16523-21030	Cushion, Radiator Support
16535	90480-22025	Cushion, Intercooler Support
16553	16581-33040	Clamp, Hose
16553	16581-33050	Clamp, Hose
16553	16581-33120	Clamp, Hose
16571	16571-33090	Hose, Radiator, No.1
16571	90467-33006	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-33070	Hose, Radiator, No.2
16572	90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)
16572	96136-43901	Clamp Or Clip, Hose(For Radiator Inlet)
16611	16611-33010	Bracket, Radiator Reserve Tank
16612	16612-33020	Bracket, Radiator Reserve Tank, No.2
16711	16711-33050	Shroud, Fan
16711	16711-33060	Shroud, Fan
9009904119	90099-04119	BOLT WASHER HEAD
9009905164	90099-05164	Nut
9012606026	90126-06026	Bolt, Stud(Manifold To Throttle Body)
9046400918	90464-00918	New Genuine Part
9048016044	90480-16044	Grommet
9155180620	91551-80620	Bolt
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)
9167180616	91671-80616	BOLT FLANGE
9167180816	91671-80816	Bolt (For Transmission Control Cable Bracket)
9415180600	94151-80600	Nut, Cap(For Cylinder Head Cover)

OEM	Part name	Category
16206-33060	Pipe Sub-Assy, Water By-Pass	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16260-33090	Hose Assy, Water By-Pass	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16261-33050	Hose, Water By-Pass	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16262-0N011	Hose, Water Inlet	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16262-33010	Hose, Water Inlet	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16262-33011	Hose, Water Inlet	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16263-33030	Hose, Water Inlet	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16264-33040	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16267-33030	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16281-33030	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16281-33050	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16304-33010	Outlet Sub-Assy, Water	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16304-33011	Outlet Sub-Assy, Water	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16321-33040	Inlet, Water	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16322-33010	Pipe, Water Inlet	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16323-33030	Housing, Water Inlet	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16325-33010	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16326-33030	Gasket, Water Inlet Housing, No.2	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16341-33010	Gasket, Water Outlet	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16361-33040	Fan	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16363-28160	Motor, Cooling Fan	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16400-33120	Radiator Assy	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16470-33020	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16470-33021	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16475-51010	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16475-51011	Cap, Reserve Tank	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16523-21030	Cushion, Radiator Support	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16571-33090	Hose, Radiator, No.1	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16572-33070	Hose, Radiator, No.2	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16581-33040	Clamp, Hose	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16581-33050	Clamp, Hose	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16581-33120	Clamp, Hose	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16611-33010	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16612-33020	Bracket, Radiator Reserve Tank, No.2	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16711-33050	Shroud, Fan	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
16711-33060	Shroud, Fan	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
90099-05164	Nut	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
90126-06026	Bolt, Stud(Manifold To Throttle Body)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
90301-20016	Ring, O(For Water By-Pass Pipe)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
90464-00918	New Genuine Part	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
90467-33006	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
90480-16044	Grommet	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
90480-22025	Cushion, Intercooler Support	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
91551-80620	Bolt	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
91671-80616	BOLT FLANGE	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
91671-80816	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
94151-80600	Nut, Cap(For Cylinder Head Cover)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
96136-41501	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
96136-42501	Clip(For Ventilation Hose)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
96136-43901	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
96136-52101	Clip(For Ventilation Hose)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
96136-52201	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
96137-41701	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
96137-41901	Clip(For Ventilation Hose No.2) - HOSE(FOR WATER BY-PASS HOSE)	Radiator & Water Outlet ([11.2010 - ] (1011- )1NDTV)
